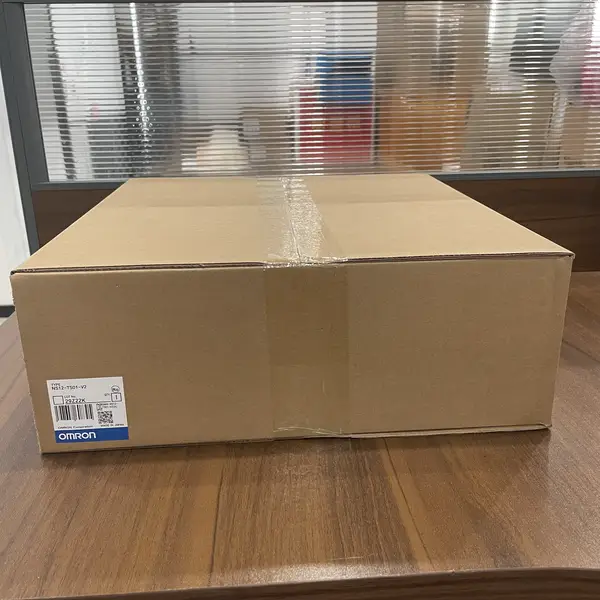

Omron NS12-TS01-V2 — 12.1" SVGA TFT HMI, Ethernet
SKU: NS12-TS01-V2USD 835.00
12.1-inch SVGA 800×600 TFT colour touchscreen HMI with Ethernet 10/100 Base-TX, dual RS-232C, USB master/slave, 60 MB screen memory, CX-Designer programming.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The NS12-TS01-V2 is the 12.1-inch Ethernet-enabled model of Omron's NS-series programmable terminals, sitting between the 10.4-inch NS10-TV01-V2 and the 15-inch NS15-TX01B-V2 in the V2 lineup. It pairs an 800×600 SVGA TFT colour LCD with a matrix-resistive touch overlay, 60 MB of dedicated screen memory, and a built-in 10/100 Base-TX Ethernet port for connection to a CJ2, NJ, or NX PLC over EtherNet/IP or FINS. Two RS-232C ports handle legacy PLC links (Host Link / NT Link to CJ1/CJ2) and barcode / recipe devices, while USB master and slave ports allow project transfer from a memory stick and direct screen editing from a laptop.
What the TS01 suffix adds over the TS00
The defining difference between NS12-TS01-V2 and NS12-TS00-V2 is Ethernet: only the TS01 (and TS01B black-bezel) variants include the 10/100 Base-TX port. The TS01 also supports the optional NS-CLK21 Controller Link Interface Unit for high-speed PLC-to-PLC messaging on a dedicated 2 Mbps Controller Link network — a feature the TS00 cannot use. If your CX-Designer project needs to download over Ethernet, push alarm e-mails to an SMTP server, or serve a web page through the built-in Web Server function, you must use a TS01 (or TS01B) unit.
Programming and runtime environment
Projects are built in CX-Designer (version 3.0 or later for V2 units), part of the CX-One suite. CX-Designer supports Smart Active Parts — pre-built objects for alarm logs, trend graphs, recipe banks, and ladder-monitor I/O display — so you can stand up an operator screen with live PLC I/O without writing any script. The Ladder Monitor function (with the optional NS-CLK21 and a compatible controller) lets maintenance staff read the controller program from the HMI without a laptop, with I/O comments extracted at build time.
Practical selection and panel considerations
This NS12 fits a 12.1-inch panel cutout (246 × 184.5 mm display area), making it a common choice for packaging lines, water-treatment skids, and central control stations where you need more screen than the 10.4-inch NS10 offers but cannot justify the 15-inch NS15 footprint. The TFT panel with LED backlight is rated 0 to +50 °C ambient, IP65 from the front once mounted with the included gasket, and UL / CSA / CE certified. Note that the entire NS series has been moved to Omron's product discontinuation list, with the NA5-12W101B-V1 (12-inch widescreen) as the recommended replacement.
Key Features
- 12.1-inch SVGA 800 × 600 TFT colour LCD with LED backlight
- Matrix-resistive touch screen, 32,768 simultaneous colours
- Built-in 10/100 Base-TX Ethernet port
- Two RS-232C ports for Host Link, NT Link, or barcode readers
- USB master for memory-stick project transfer, USB slave for direct PC connection
- 60 MB screen memory and Type-M memory-card slot for hot-swap projects
- Ladder Monitor function with NS-CLK21 Controller Link option
- NS-CA002 RGB/Video Input Unit support for live video overlay
- SKU: NS12-TS01-V2
- Series: NS12 (V2 generation)
- Voltage: 24 VDC
- I/O: 002 I/O
Best-Fit Applications
- Line-level status dashboard on packaging machinery with alarms and recipe bank
- Process overview screen at the central station of a water-treatment skid
- Maintenance engineer station reading CJ2 ladder logic via Ladder Monitor over Controller Link
- Existing line retrofitted to add Ethernet connectivity to a legacy CJ1M without a PLC CPU swap
Buying Checklist
- Pick NS12-TS01-V2 when you need Ethernet and a 12-inch screen; pick NS12-TS00-V2 when Ethernet is not required and you want to save cost
- Pick NS12-TS01B-V2 instead when the panel is dark-coloured and the ivory bezel would clash
- Verify your controller supports NT Link / Ethernet — NJ, NX, CJ2, and CP1H are direct fits; some legacy controllers need a serial-only connection
- Order the NS-CLK21 separately if you plan to use Ladder Monitor; it is not bundled with the NS12
- Order the NS-CA002 only if you need live video overlay — the NS12 will run fine without it
- Plan a NA5-12W101B-V1 evaluation if this is a new design — the NS series is being discontinued
Technical Specifications
| Model | NS12-TS01-V2 |
|---|---|
| Series | NS12 (V2 generation) |
| Type | TFT colour programmable terminal (HMI) |
| Display Size | 12.1 inch diagonal |
| Display Area | 246 × 184.5 mm |
| Resolution | 800 × 600 (SVGA) |
| Colors | 32,768 colours |
| Backlight | LED |
| RGB/Video Input | Optional via NS-CA002 expansion unit |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0 to +50 °C |
| Certifications | UL, CSA, CE |
Resources & Downloads
FAQ for NS12-TS01-V2
What is the difference between NS12-TS01-V2 and NS12-TS00-V2?
Only the TS01 and TS01B variants include the built-in 10/100 Base-TX Ethernet port; the TS00 / TS00B have no Ethernet and connect to the PLC only by RS-232C. The TS01 also supports the optional NS-CLK21 Controller Link Interface Unit for high-speed PLC-to-PLC messaging and Ladder Monitor. If you need Ethernet, alarm e-mail, web server, or Controller Link, you must use a TS01 variant.
Can the NS12-TS01-V2 connect to an NJ or NX controller over Ethernet?
Yes — the built-in Ethernet port supports FINS / EtherNet/IP communication to NJ, NX, NX1P, and any CJ2 / CS1 with an Ethernet module. Set the PLC IP address in CX-Designer's host configuration, choose either EtherNet/IP (cyclic tag access) or FINS (message-based), and download the project. Connection to multiple controllers is supported by registering up to 32 hosts.
What programming software does the NS12-TS01-V2 use?
CX-Designer, included in Omron's CX-One suite. V2-generation NS units require CX-Designer version 3.0 or later. Projects can be downloaded via Ethernet, USB, serial, or a Type-M memory card. CX-Designer also exports a runtime package that can be sent to a USB stick for stand-alone installation on machines without a network.
Is the NS12-TS01-V2 still in production?
The NS series has been moved to Omron's product discontinuation list with the NA5-12W101B-V1 (12-inch widescreen Sysmac HMI) as the recommended replacement. Existing NS12 stocks remain available through authorised distributors like Hengyixin for service and expansion of installed lines, but new long-life-cycle designs should evaluate the NA5 family and Sysmac Studio migration path.
