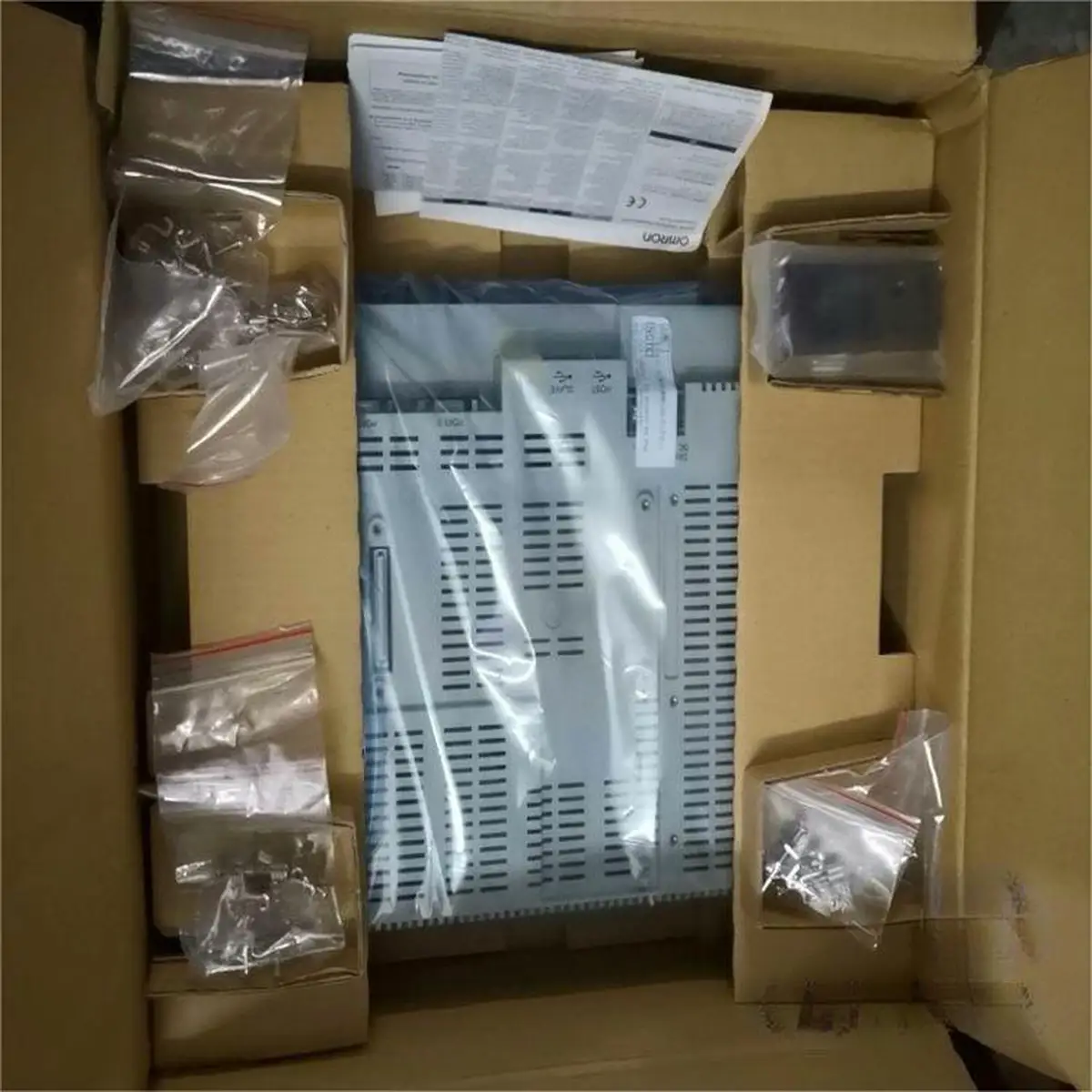

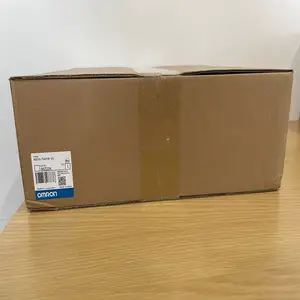

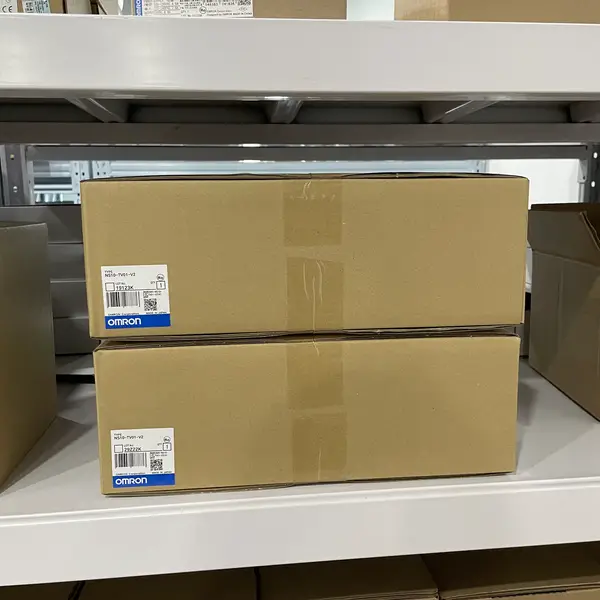

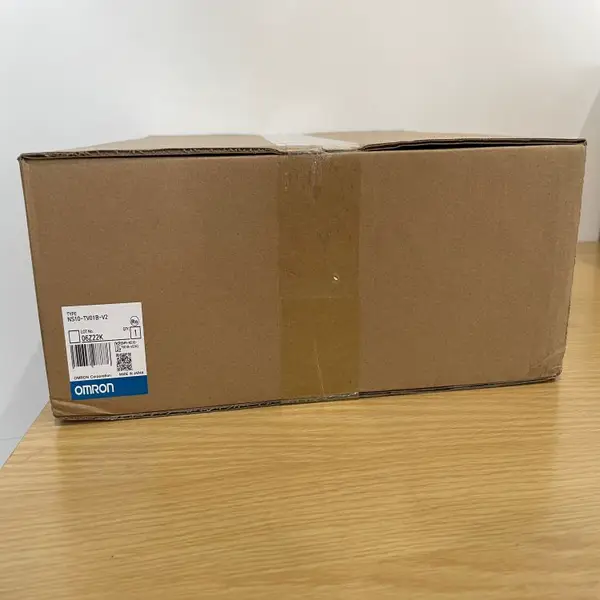

Omron NS10-TV01-V2 — 10.4-Inch TFT HMI, VGA, Ethernet
SKU: NS10-TV01-V2USD 720.00
10.4-inch TFT colour HMI, 640x480 VGA, Ethernet + 2 RS-232C + USB, 60 MB, ivory case. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NS10-TV01-V2 is one of the HMIs components in the Omron catalog, manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the NB-Designer project file on a USB drive included.
NS10-V2 10.4-inch TFT colour touch HMI, 640 x 480 VGA, 256 colours 2 x RS-232C, Ethernet 10/100 Base-T, USB host + USB slave, CompactFlash slot 24 VDC supply, 60 MB project memory, IP65 front, ivory case
Compatible controllers and sibling SKUs are listed in the related products row below.
Key Features
- NS10-V2 10.4-inch TFT colour touch HMI, 640 x 480 VGA, 256 colours
- 2 x RS-232C, Ethernet 10/100 Base-T, USB host + USB slave, CompactFlash slot
- 24 VDC supply, 60 MB project memory, IP65 front, ivory case
- CX-Designer programming under CX-One; Omron lists the NS10-V2 body as TFT colour with an LED backlight
- SKU: NS10-TV01-V2
- Series: Omron NS-series programmable terminal (NS10-V2)
- Voltage: 24 VDC
Best-Fit Applications
- Operator panel on a CNC lathe where Ethernet pulls job files from the plant server and the VGA shows spindle RPM and tool offsets
- Spare replacement on an NS10-V2 cabinet where the CompactFlash recipe card carries the old project and the cutout matches
- Packaging line status page where the IP65 front handles daily washdown and Ethernet talks to a CJ2 PLC over FINS
Buying Checklist
- Pick the NS10-TV01-V2 for a 10.4-inch TFT colour HMI with Ethernet, 2 RS-232C ports and 60 MB memory on the NS10-V2 family.
- Pick the NS10-TV00-V2 instead when the application does not need Ethernet and the serial-only body covers the cabinet.
- Pick the NB10W-TW01B-V1 instead when the project is a new build and the NB-series replaces the mature NS series.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NS-series programmable terminal (NS10-V2) |
| Model / SKU | NS10-TV01-V2 |
| Display | 10.4-inch TFT colour LCD, 640 x 480 VGA |
| Colours | 256 colours (32,768 for BMP / JPG bitmaps) |
| Backlight | LED (the CCFL-to-LED change came with the -V2 generation) |
| Touch Panel | Matrix resistive membrane, 1 million operations |
| Supply Voltage | 24 VDC |

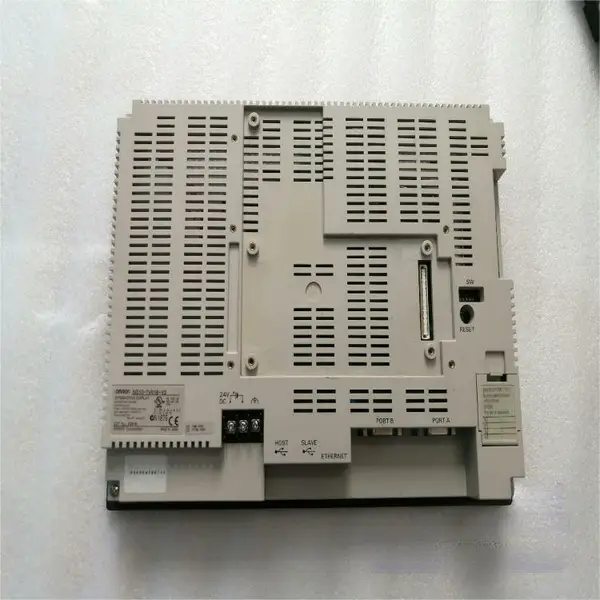

| Communication Ports | 2 x RS-232C, 1 x Ethernet 10/100 Base-T, USB host + slave, CompactFlash slot |
| Project Memory | 60 MB |
| Programming Software | CX-Designer under CX-One |
| Dimensions / Weight | 315 (W) x 241 (H) x 48.5 (D) mm; about 2.5 kg |
FAQ for NS10-TV01-V2
What software programs the NS10-TV01-V2?
CX-Designer under the CX-One suite. The project supports Smart Active Parts for direct tag binding to Omron CP, CJ and CS-series PLCs over Host Link, NT Link, or Ethernet FINS.
Does the NS10-TV01-V2 have Ethernet?
Yes. The 01 suffix marks the Ethernet version on the NS10-V2 family. The 00 suffix (NS10-TV00-V2) is serial-only.
Is the NS10-TV01-V2 still in production?
Discontinued for new builds in 2022. Stock is limited at Omron and at distributors. For new designs, use the NB10W or NB7W HMI family.
Can I migrate an NS10-TV01-V2 project to an NB HMI?
CX-Designer can export the project, then NB-Designer imports the screens. Some screen resizing and protocol map changes are needed because the NB family uses NB-Designer, not CX-Designer.
