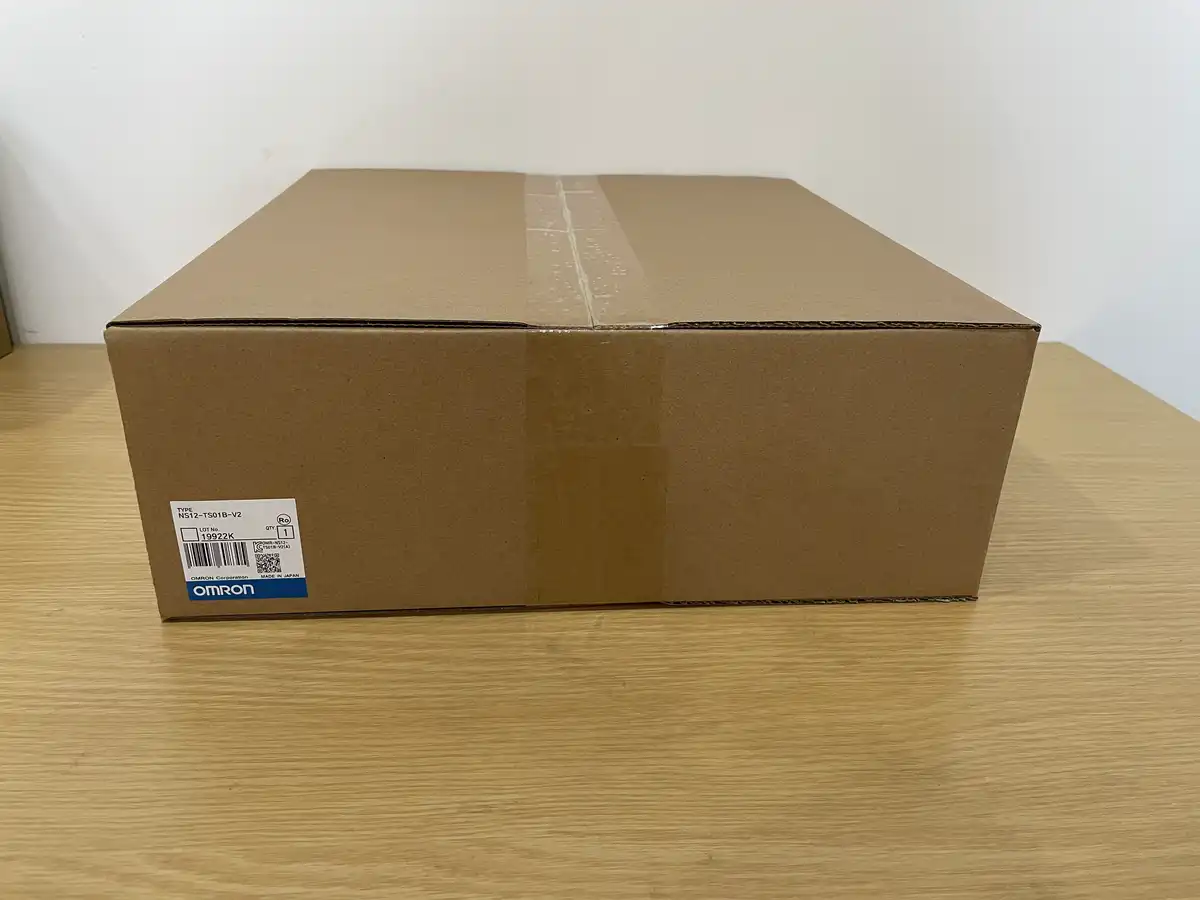

Omron NS12-TS01B-V2 — 12.1" NS HMI, Ethernet, 60 MB
SKU: NS12-TS01B-V2USD 755.00
Omron NS12-TS01B-V2 NS-series 12.1-inch TFT HMI, Ethernet, 2x RS-232C, 60 MB project memory. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NS12-TS01B-V2 is the NS-series 12.1-inch TFT color LCD touchscreen HMI in the black bezel, manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the Sysmac Studio or NB-Designer project file on a USB drive included.
It runs CX-Designer projects on a 12.1-inch TFT color LCD with 800 x 600 SVGA resolution and a resistive-touch analog panel. 60 MB of project memory fits dense process pages, alarm logs, and recipe lists. The four built-in ports are Ethernet (10 / 100 BASE-TX), two RS-232C serial, USB Host, and USB Slave.
Front-panel protection is IP65 when the unit is panel-mounted with the included gasket. Power is 24 VDC at approximately 24 W. The 12.1-inch no-Ethernet sibling is the NS12-TS00B-V2. The 10.4-inch Ethernet version is the NS10-TV01B-V2. The NS12-TS01B-V2 is discontinued; the modern Sysmac replacement is the NA5-12W101B-V1.
Key Features
- NS-series 12.1-inch TFT color LCD HMI, 800 x 600 SVGA, 256 on-screen colors with 32,768 colors for BMP / JPG
- Built-in Ethernet (10 / 100 BASE-TX), 2 x RS-232C serial, USB Host, USB Slave
- 60 MB project memory for dense process pages, alarm logs, and recipe lists
- Resistive-touch analog panel, IP65 front face when panel-mounted, 24 VDC supply, CX-Designer software
- SKU: NS12-TS01B-V2
- Series: NS-series programmable terminal (PT) touchscreen HMI
- Voltage: 24 VDC
Best-Fit Applications
- Line-level operator dashboard on a packaging line running Ethernet to a CJ2H-CPU65-EIP with recipe and alarm pages in the 60 MB project memory
- Process-skid HMI on a water-treatment panel where the Ethernet port tags into the NJ CPU and trend graphs live on the 12.1-inch LCD
- Spare replacement for an NS12-TS00B-V2 upgraded for the Ethernet-enabled NS12-TS01B-V2 to add remote SCADA tie-in
Buying Checklist
- Pick the NS12-TS01B-V2 for a 12.1-inch NS-series HMI with built-in Ethernet and 60 MB project memory in a black bezel.
- Pick the NS12-TS00B-V2 instead when the cabinet only needs RS-232C and USB on the same 12.1-inch body.
- Pick the NA5-12W101B-V1 instead when the panel needs a current-production Sysmac Studio HMI as the long-term replacement.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NS-series programmable terminal (PT) touchscreen HMI |
| Model / SKU | NS12-TS01B-V2 |
| Display | 12.1-inch TFT color LCD, 800 x 600 SVGA, 256 on-screen colors, LED backlight, analog resistive touch |
| Memory | 60 MB project memory, CF card slot on rear for project transfer and data logging |
| Built-in Ports | 1 x Ethernet (10 / 100 BASE-TX), 2 x RS-232C serial, 1 x USB Host (Type A), 1 x USB Slave (Type B) |
| Communication Protocols | EtherNet/IP, TCP / IP, Modbus TCP, NT-Link 1:1, Host Link, serial RS-232C |
| Software | CX-Designer (also called NS-Designer) for project development; supports ladder tag import from CX-Programmer |
| Supply Voltage | 24 VDC at 20.4 to 27.6 V, current consumption approximately 1.0 A (24 W) |
| Front Face / Cut-out | Front face IP65 / NEMA 4 when panel-mounted with included gasket; front dimensions 323 (W) x 241 (H) mm; built-in depth 42 mm |
| Environment | 0 to 50 C operating, -20 to 60 C storage, 10 to 90 percent humidity (no condensation) |
| Approvals / Status | CE, UL, cUL, KC; discontinued product; modern Sysmac replacement is the NA5-12W101B-V1 |
FAQ for NS12-TS01B-V2
What is the Omron NS12-TS01B-V2 used for?
It is the NS-series 12.1-inch TFT color LCD touchscreen HMI with built-in Ethernet. It runs CX-Designer projects and connects to Omron CJ1, CJ2, and NJ PLCs over Ethernet or RS-232C. Typical uses are line-level dashboards on packaging lines, process-skid panels, and any 12.1-inch operator interface where Ethernet is required.
NS12-TS01B-V2 vs NS12-TS00B-V2 - what is the difference?
Both share the same 12.1-inch 800 x 600 TFT color LCD body and 60 MB project memory. The -TS01B-V2 has built-in Ethernet plus two RS-232C serial ports and USB; the -TS00B-V2 has RS-232C plus USB only. Pick the -TS01B-V2 when the panel needs Ethernet for a Sysmac NJ or remote SCADA tie-in; pick the -TS00B-V2 for serial-only legacy installs.
Can the NS12-TS01B-V2 connect to a non-Omron PLC?
Yes, over Modbus TCP on the Ethernet port or Host Link / NT-Link on the RS-232C serial ports. CX-Designer supports a wide list of third-party drivers, including Modbus RTU / TCP master and a generic Ethernet driver. For best results on Omron CPUs, use EtherNet/IP or Host Link.
Is the NS12-TS01B-V2 still in production?
No. The NS12-TS01B-V2 is a discontinued product. Hengyixin stocks it for the existing install base and ships the modern Sysmac replacement NA5-12W101B-V1 for new projects. Both screens are 12.1 inch, so the panel cut-out is unchanged.
Does the NS12-TS01B-V2 support video playback?
No. The NS-series displays static graphics, button animations, and alarm lists but no video playback. For video, the NA-series with Windows CE / WEC2013 supports streaming playback from a USB memory or remote server.
