Omron NS15-TX01B-V2 — 15-Inch XGA HMI, Black
SKU: NS15-TX01B-V2USD 1580.00
Omron NS15-TX01B-V2 NS-series 15-inch XGA TFT HMI, Ethernet + RS-232C + RS-485, 60 MB. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NS15-TX01B-V2 is the 15-inch XGA TFT touchscreen HMI in Omron's NS-series Programmable Terminal line, manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the matching CX-Designer project file on a USB drive included.

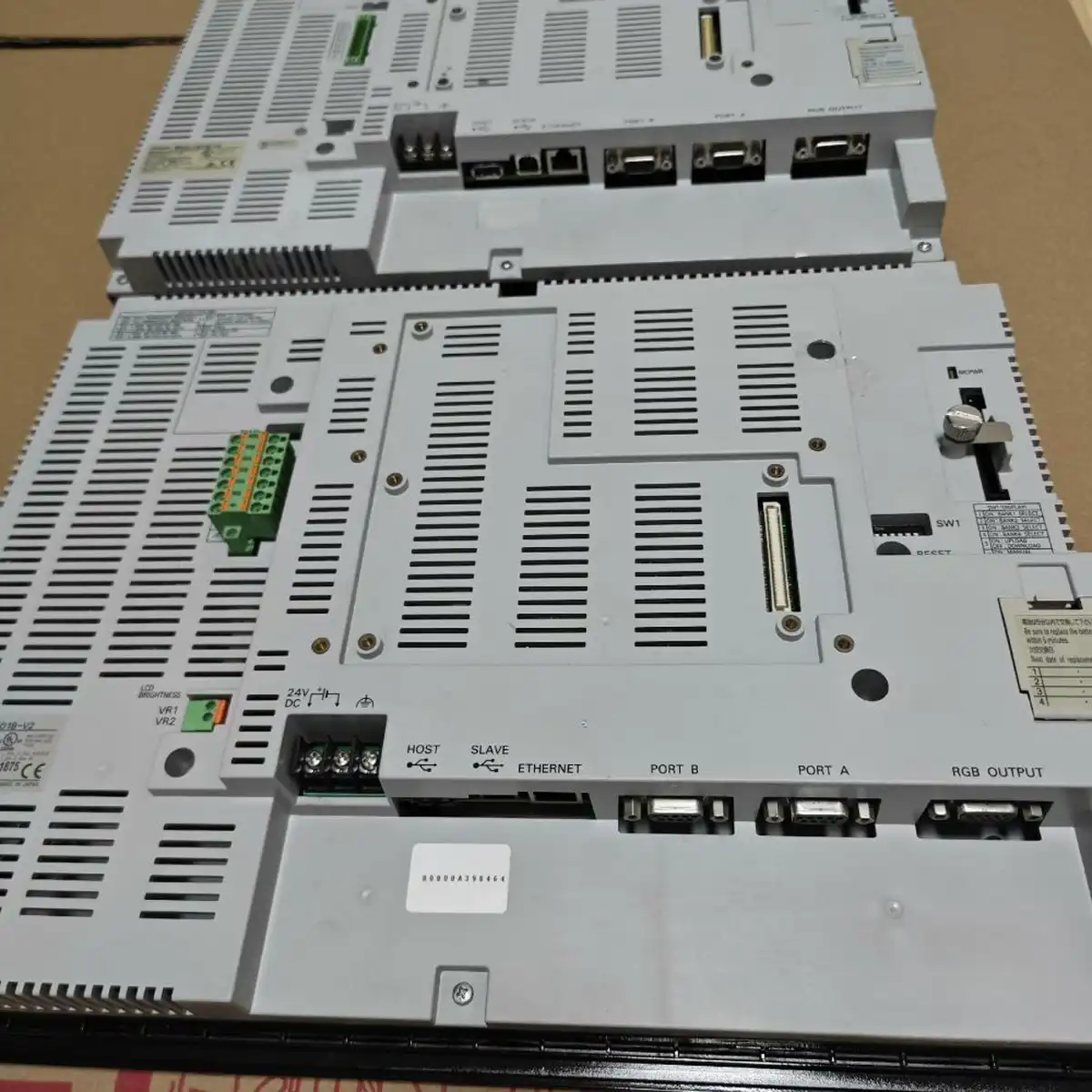

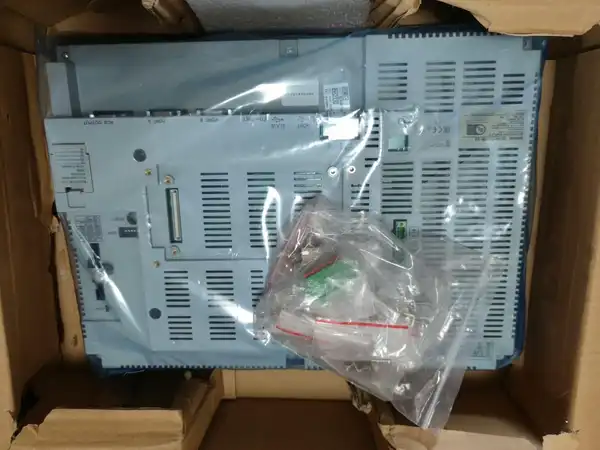

The screen is a 15-inch TFT LCD at 1024 x 768 XGA resolution with 32,768 colors and a resistive analog touch surface. Internal memory is 60 MB; programming is in CX-Designer and supports ladder monitor, Smart Active Parts, and multi-language screens. The rear panel carries Ethernet 10/100 Base-TX, two RS-232C ports, an RS-422A/485 port, USB host and slave, plus video input and video output for live camera feeds.
The black-bezel IP65 front panel is rated for 0 to 50 C ambient operation, takes 24 VDC at 45 W typical / 60 W max, and weighs about 4.1 kg with a 383.5 x 282.5 mm panel cutout. The NS12-TS01B-V2 is the same family in a 12.1-inch form factor.
Key Features
- 15-inch XGA 1024 x 768 TFT LCD touchscreen with 32,768 colors, black bezel
- 60 MB internal memory, CX-Designer programming, multi-language and ladder monitor
- Ethernet 10/100 Base-TX, 2 x RS-232C, RS-422A/485, USB host/slave, video in/out
- IP65 front panel, 24 VDC at 45 W typical, 0 to 50 C ambient, 4.1 kg
- SKU: NS15-TX01B-V2
- Series: NS-series Programmable Terminal (HMI), V2 generation
- Voltage: 24 VDC
Best-Fit Applications
- 15-inch operator SCADA screen on a 20-zone process line where XGA resolution shows multi-window trends, alarms, and live camera feeds at once
- Multi-language operator panel on a manufacturing line where CX-Designer Smart Active Parts switch labels based on the operator login
- Spare replacement for a failed NS15-TX01B-V2 on a 2010-era packaging line that already runs CX-Designer libraries
Buying Checklist
- Choose the NS15-TX01B-V2 when the cabinet needs a 15-inch XGA TFT HMI with Ethernet and video in/out on the NS-series platform.
- Choose the NS12-TS01B-V2 instead when the cabinet only has room for a 12.1-inch panel but the same NS-series features.
- Choose the NA5-15W101B-V1 instead when the new line needs Sysmac Studio integration instead of CX-Designer and Windows CE runtime.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NS-series Programmable Terminal (HMI), V2 generation |
| Model / SKU | NS15-TX01B-V2 |
| Display | 15-inch TFT LCD, 1024 x 768 XGA, 32,768 colors, LED backlight, resistive touch |
| Internal Memory | 60 MB |
| Programming Software | CX-Designer (part of CX-One suite) |
| Communication Ports | Ethernet 10/100 Base-TX x 1, RS-232C x 2, RS-422A/485 x 1, USB host x 1, USB slave x 1 |
| Video I/O | Video input x 1 and video output x 1 for live camera feeds |
| Power Supply | 24 VDC +/- 10 percent, 45 W typical / 60 W max |
| Front Panel Rating | IP65 (IEC 60529), oil-resistant equivalent to NEMA 4 |
| Operating Temperature | 0 to 50 C ambient |
| Dimensions / Weight | 405 x 304 x 67.8 mm, 4.1 kg; panel cutout 383.5 x 282.5 mm |
FAQ for NS15-TX01B-V2
What is the difference between NS15-TX01B-V2 and NS15-TX01S-V2?
The B suffix is the black bezel; the S suffix is the ivory/white bezel. Both are 15-inch XGA TFT screens with the same Ethernet, serial, and USB ports. Pick the B variant for a modern dark-grey cabinet, and the S variant for a light-grey cabinet that matches legacy NS equipment.
What software does the NS15-TX01B-V2 use?
CX-Designer, part of the CX-One programming suite. The HMI supports ladder monitor, Smart Active Parts, multi-language screens, and data logging to internal memory or an SD card in the USB slot. Project files upload via Ethernet or the USB slave port.
Is the NS15-TX01B-V2 still in production?
The NS15 series is on Omron's end-of-life list. The TX01B-V2 is still orderable today, but lead times are growing. For new builds, consider the NA5-15W101B-V1 15-inch Sysmac Studio HMI, which runs Windows CE on the same 15-inch form factor and modernises the platform.
Can the NS15-TX01B-V2 show live camera feeds?
Yes. The rear panel has a video input and a video output BNC connector. CX-Designer can place a video window on any screen, and the image renders at up to 30 fps. The USB host port also accepts a webcam for a second feed without needing a separate encoder.
