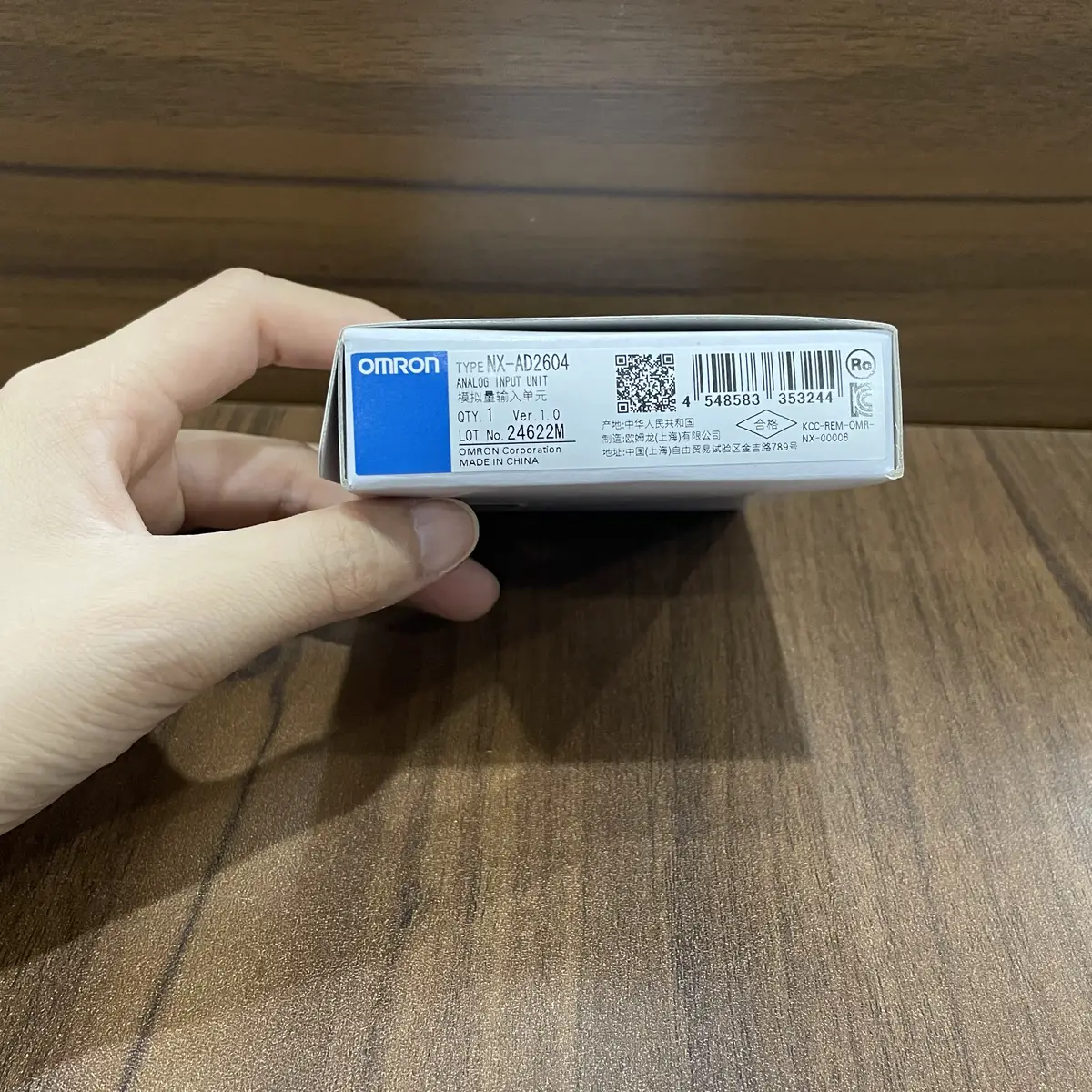

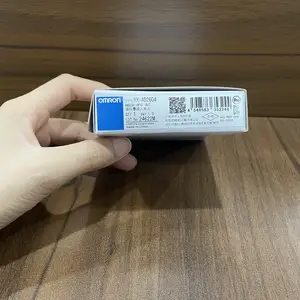

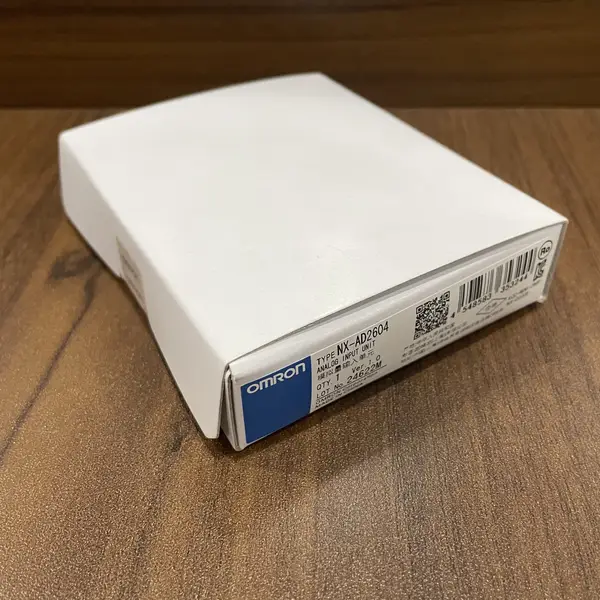

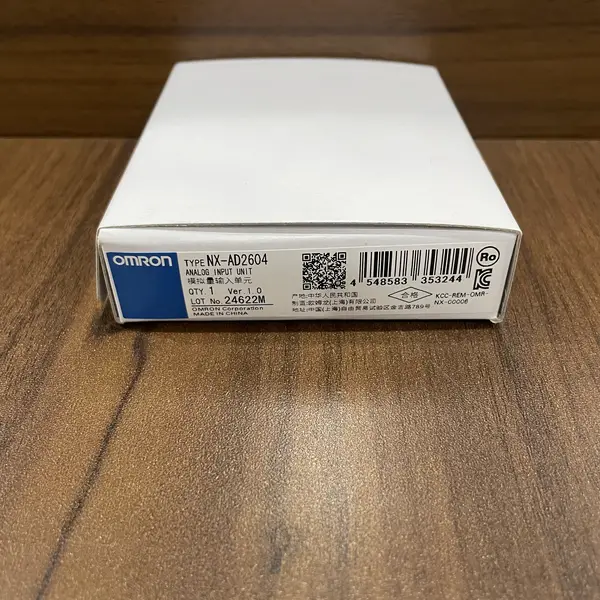

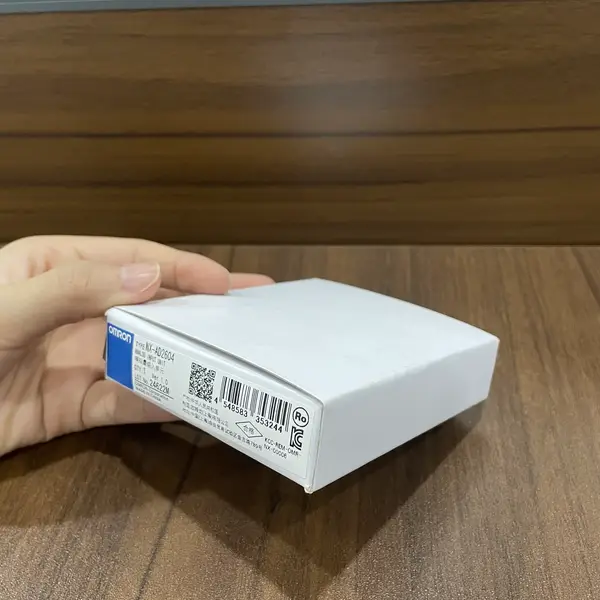

Omron NX-AD2604 — 2-Ch Analog Input, -10 to +10 V
SKU: NX-AD2604USD 140.50
Omron NX-AD2604 NX-series 2-ch analog voltage input, differential, 1/8000 resolution, 250 us/point. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-AD2604 is the NX-series 2-channel analog voltage input unit with differential inputs, manufactured by Omron Corporation. Hengyixin Automation stocks this I/O expansion unit in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
Each of the two inputs covers -10 to +10 V with 1/8000 (13-bit) resolution at 250 us per point (500 us per unit total). Accuracy is ±0.2 percent full scale at 25 C and ±0.4 percent at 0 to 55 C. Input impedance is 1 MOhm minimum; absolute maximum rating is ±15 V. I/O refresh is Free-Run only.
The 12 mm wide housing carries an 8 pin screwless push-in terminal block. Power consumption is 1.35 W max on a CPU rack, 1.05 W max on a coupler. Isolation to the NX bus is via transformer (power) and digital isolator (signal); there is no isolation between the two channels. For the single-ended sibling pick the NX-AD2203. For 4 single-ended inputs pick the NX-AD3603.
Key Features
- NX-series 2-channel analog voltage input unit, differential inputs, -10 to +10 V per channel
- 1/8000 (13-bit) resolution, 250 us per point conversion, Free-Run I/O refresh only
- Screwless push-in 8-pin terminal block, 12 mm wide, 1.35 W max on CPU rack, 1.05 W on coupler
- ±0.2 percent accuracy at 25 C, ±0.4 percent at 0 to 55 C, 1 MOhm input impedance, ±15 V absolute max
- SKU: NX-AD2604
- Series: NX-series machine automation I/O, analog input units (NX-AD family)
Best-Fit Applications
- Stamping press pressure loop where the NX-AD2604 reads two 0 to 10 V transducers and writes scaled values to the NJ CPU every 500 us
- Temperature compensation on a packaging line where the NX-AD2604 reads two thermocouple-mV signals scaled through a 0 to 10 V conditioner
- Spare replacement on a CJ1W-AD041 retrofit where two CJ analog channels migrate onto one NX-AD2604 on an NX-ECC201 EtherCAT coupler
Buying Checklist
- Pick the NX-AD2604 for 2-ch -10 to +10 V differential analog input at 1/8000 resolution on the NX-series 12 mm wide body.
- Pick the NX-AD2203 instead when the cabinet needs single-ended inputs that can also accept 0 to 20 mA or 4 to 20 mA current loops on the same 12 mm wide body.
- Pick the NX-AD2608 instead when the application needs 1/30000 resolution and synchronous I/O refresh for tight motion-axis synchronization.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series machine automation I/O, analog input units (NX-AD family) |
| Model / SKU | NX-AD2604 |
| Number of Inputs | 2 single-ended or differential channels; differential input method |
| Input Range | -10 to +10 V; conversion range -5 to 105 percent full scale |
| Absolute Maximum | ±15 V across any input terminal |
| Resolution / Accuracy | 1/8000 full scale (13-bit); ±0.2 percent at 25 C, ±0.4 percent at 0 to 55 C |
| Conversion Time | 250 us per point, 500 us per unit total |
| I/O Refresh | Free-Run refresh only (not selectable for synchronous I/O refresh) |
| Terminal / Power | Screwless push-in terminal block with 8 pins; NX bus power 1.35 W max on CPU, 1.05 W max on Communications Coupler Unit; no I/O power terminals |
| Isolation | Input to NX bus: power = transformer, signal = digital isolator (no isolation between the two inputs) |
| Environment / Wiring | 0 to 55 C operating, 10 to 95 percent humidity (no condensation); 12 (W) x 100 (H) x 71 (D) mm; 70 g; IP20 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-AD2604
What is the Omron NX-AD2604 used for?
It is the NX-series 2-channel analog voltage input unit with differential inputs. Each channel covers -10 to +10 V at 1/8000 (13-bit) resolution and updates in 250 us per point. Typical uses are hydraulic pressure loops, temperature compensators after a voltage conditioner, and any CJ-series-to-NX retrofit where two CJ analog channels migrate onto one NX unit on an NX-ECC201 EtherCAT coupler.
NX-AD2604 vs NX-AD2203 - what is the difference?
Both are 12 mm wide NX-series 2-channel analog input units at 1/8000 resolution with the same 250 us conversion time. The NX-AD2604 is differential and voltage-only (-10 to +10 V); the NX-AD2203 is single-ended and accepts -10 to +10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, or 4 to 20 mA per channel. Pick the NX-AD2604 when differential noise rejection matters; pick the NX-AD2203 when the panel needs 4-20 mA loops.
Does the NX-AD2604 support synchronous I/O refresh?
No. The NX-AD2604 runs in Free-Run refresh only. For synchronous I/O refresh on a 12 mm wide 2-channel differential voltage input, pick the NX-AD2608 (1/30000 resolution, Free-Run or synchronous). For motion-axis synchronization, the NX-EC0132 or NX-EC0142 encoder input units support synchronous refresh with EtherCAT Distributed Clock.
What CPU or coupler does the NX-AD2604 need?
The NX-AD2604 is an NX-series slave I/O unit. It plugs into an NX-ECC201 EtherCAT Coupler Unit, an NX-ECC202 EtherCAT Coupler Unit, or any NX-series CPU (NX102, NX1P2, NX502, NJ101, NJ301, NJ501) with an NX bus on the CPU rack. The unit does not work on the CJ1W or CS1W series.
