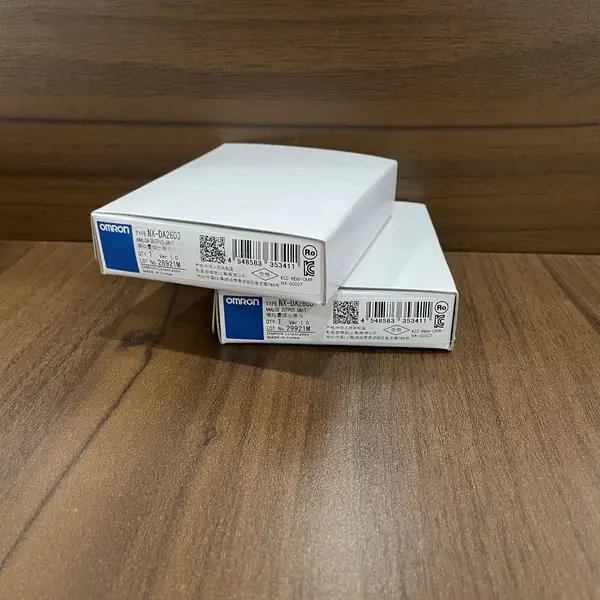

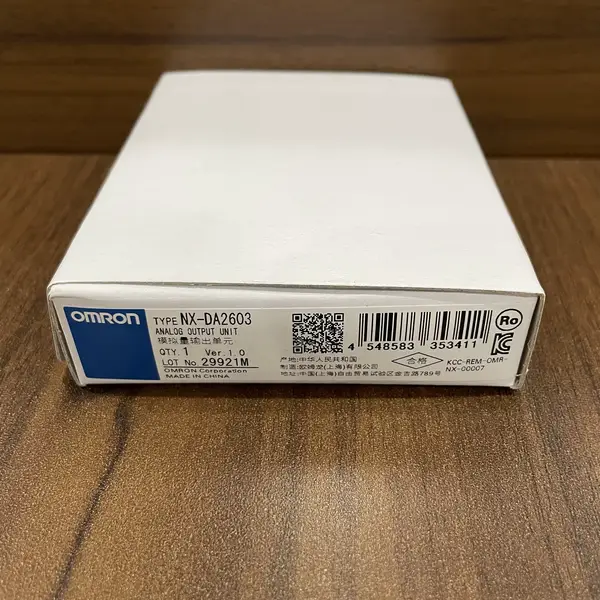

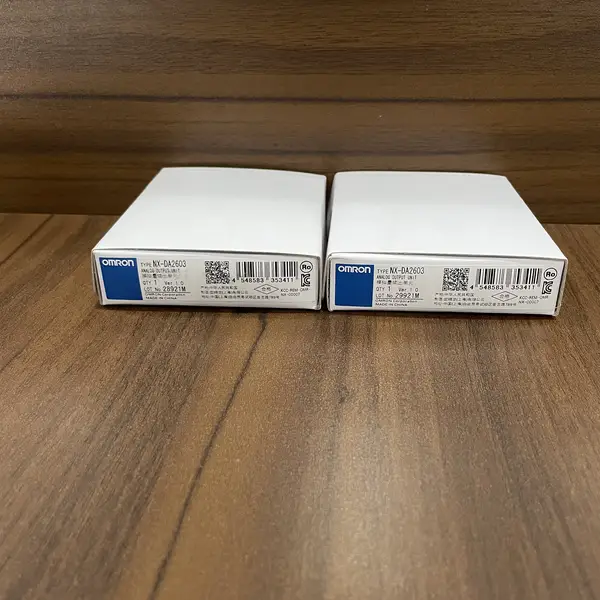

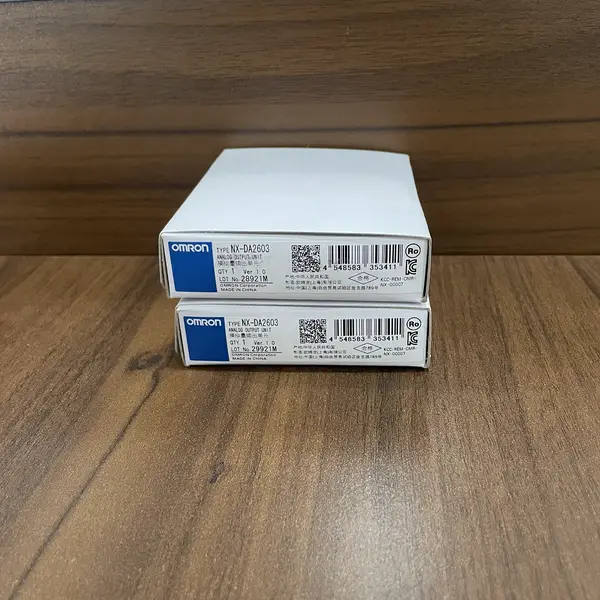

Omron NX-DA2603 — NX 2-Ch Voltage Output, -10 to +10 V
SKU: NX-DA2603USD 145.00
Omron NX-DA2603 NX-series 2-channel analog output, -10 to +10 V, 1/8000 resolution, 250 us/point, 12 mm wide. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-DA2603 is a 2-channel analog voltage output unit for the NX-series I/O platform, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
The unit outputs -10 to +10 V on two channels at 1/8000 (13-bit) resolution and 250 us per point conversion. Overall accuracy is plus or minus 0.3 percent FS at 25 C and plus or minus 0.5 percent over 0 to 55 C. Output impedance is 0.5 ohm max; allowable load resistance is 5 k ohm min. I/O refresh is Free-Run only.
The 12 mm housing mounts on the NX backplane and snaps onto a screwless push-in 8-terminal block. Power consumption is 1.10 W max from the NX bus. The housing is IP20, 70 g, 100 x 71 x 12 mm, 0 to +55 C operating. The NX-DA3603 sibling is the 4-channel voltage output at 1/8000; the NX-DA2205 is the 2-channel current output at 4-20 mA.
Key Features
- NX-series 2-channel analog voltage output unit, -10 to +10 V per channel, 1/8000 (13-bit) resolution, 250 us per point conversion
- Overall accuracy plus or minus 0.3 percent full scale at 25 C, plus or minus 0.5 percent over 0 to +55 C, 0.5 ohm max output impedance
- Free-Run I/O refresh only (no synchronous I/O refresh), screwless push-in 12-terminal connector on 12 mm wide NX housing
- 1.10 W max power consumption from the NX bus, IP20, 70 g, 12 x 100 x 71 mm, 0 to +55 C operating, removable terminal block
- SKU: NX-DA2603
- Series: Omron NX-series I/O platform (NX-DA analog output family)
Best-Fit Applications
- Speed-reference output on a conveyor where the -10 to +10 V signal drives an analogue-input variable-frequency drive via the EtherCAT coupler
- Proportional-valve position command on a hydraulic press where the NX-DA2603 outputs a -10 to +10 V reference at 1/8000 over Free-Run refresh
- Bias and span output on a multi-zone oven where two channels drive a damper-position actuator and a trim-heater SSR reference simultaneously
Buying Checklist
- Pick the NX-DA2603 for a 2-channel NX-series voltage output unit at -10 to +10 V with 1/8000 resolution on a 12 mm wide housing.
- Pick the NX-DA2605 instead when the application needs the same 2-channel -10 to +10 V output but with 1/30000 resolution and synchronous I/O refresh.
- Pick the NX-DA2203 instead when the load expects a 4-20 mA current loop rather than a voltage signal on the same 12 mm NX body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NX-series I/O platform (NX-DA analog output family) |
| Model / SKU | NX-DA2603 |
| Number of Channels | 2 voltage outputs |
| Output Range | -10 to +10 V (output conversion range -5 to +105 percent of full scale) |
| Resolution / Conversion | 1/8000 (13-bit), 250 us per point conversion time, Free-Run refresh only |
| Accuracy | Plus or minus 0.3 percent full scale at 25 C; plus or minus 0.5 percent full scale at 0 to +55 C |
| Load / Output Impedance | Allowable load resistance 5 k ohm min, output impedance 0.5 ohm max |
| Isolation | Between output and NX bus: power = transformer, signal = digital isolator (no isolation between output channels) |
| I/O Connection | Screwless push-in terminal block, 12 terminals, removable for maintenance (NX-TBA122) |
| I/O Power | Supplied from the NX bus; no I/O power supply terminals on this output unit |
| Power / Dimensions | 1.10 W max from NX bus, 12 (W) x 100 (H) x 71 (D) mm, 70 g, IP20, 0 to +55 C operating, cULus / CE / KC listed |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-DA2603
What is the Omron NX-DA2603 used for?
It is the NX-series 2-channel analog voltage output unit that converts digital values from the NX CPU into -10 to +10 V signals at 1/8000 (13-bit) resolution. It mounts on the NX backplane and drives analogue-input variable-frequency drives, proportional valves, damper actuators, and similar analogue loads.
NX-DA2603 vs NX-DA2605 - what is the difference?
Both are 2-channel -10 to +10 V voltage output units on the same 12 mm wide NX housing. The DA2603 has 1/8000 (13-bit) resolution at 250 us per point in Free-Run refresh only. The DA2605 has 1/30000 resolution at 10 us per point with selectable Free-Run or synchronous I/O refresh. Pick the DA2603 for general-purpose drive speed reference; pick the DA2605 for high-precision closed-loop servo control.
Does the NX-DA2603 support synchronous I/O refresh?
No. The NX-DA2603 only supports Free-Run refreshing - the analogue output updates asynchronously from the EtherCAT cycle. For synchronous I/O refreshing with the EtherCAT cycle, pick the NX-DA2605 or NX-DA3605.
How many NX-DA2603 units can fit on one NX backplane?
Up to 16 NX-DA2603 units (32 analog output channels) on a single NX-EIC202 EtherNet/IP coupler, or up to 63 units (126 channels) on an NX-ECC203 EtherCAT coupler, subject to the coupler's power budget. Each unit draws 1.10 W max from the NX bus and counts against the coupler's 10 W or 15 W budget.
