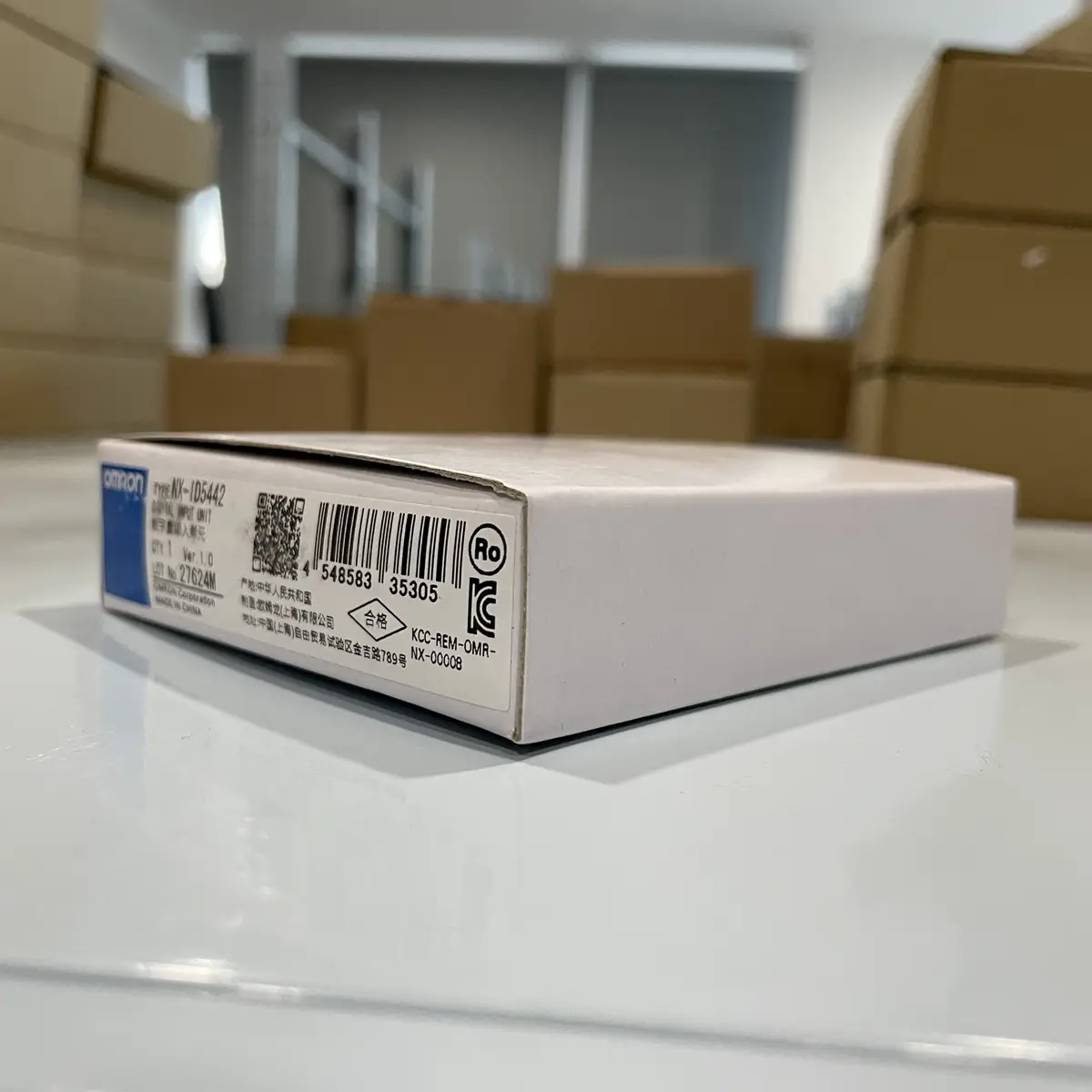

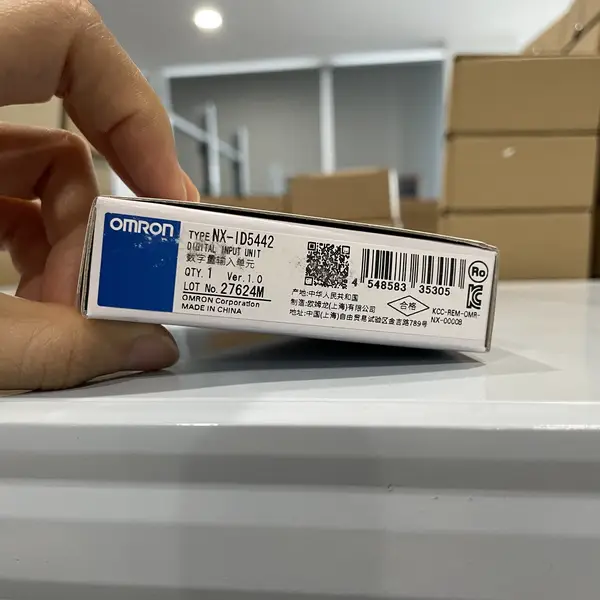

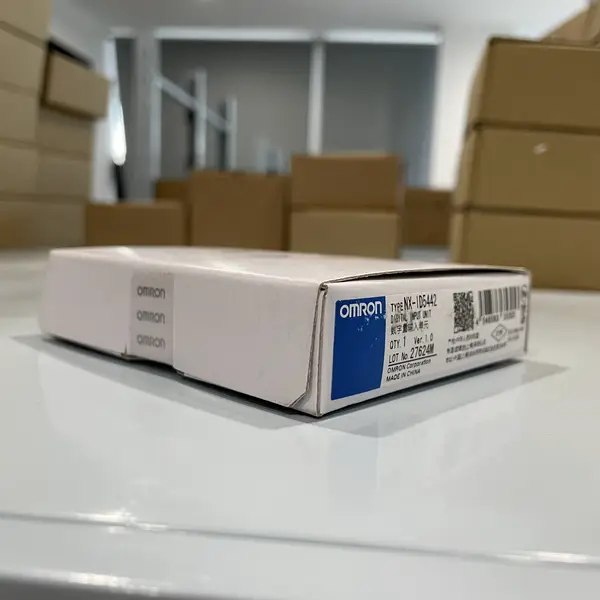

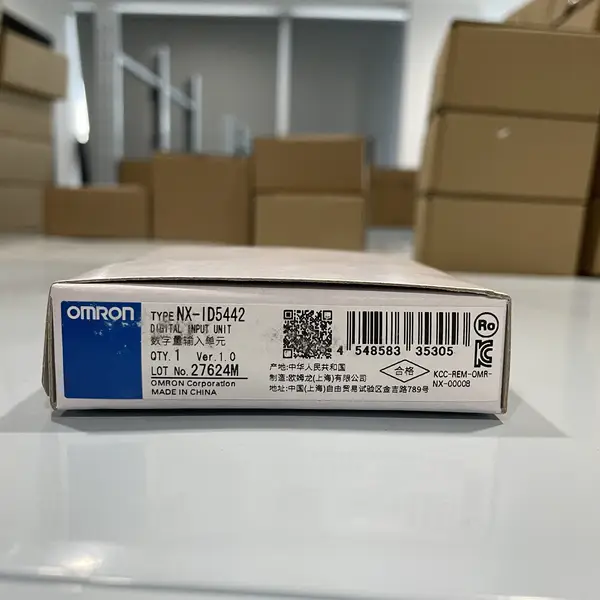

Omron NX-ID5442 — 16-Point PNP DC Input, 24 VDC
SKU: NX-ID5442USD 44.00
Omron NX-ID5442 NX-series 16-pt PNP DC input, 24 VDC, screwless push-in, 12 mm. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-ID5442 is the NX-series 16-point PNP DC input unit, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It sits on the NX I/O bus behind an NX-ECC201 EtherCAT Coupler or on the right of an NX102 / NX1P2 CPU and reads 16 PNP (sourcing) 24 VDC sensor signals. Rated input voltage 24 VDC, operating range 15 to 28.8 VDC, input current 3.5 mA typical at 24 VDC. ON at 15 VDC min / 2 mA min, OFF at 5 VDC max / 0.5 mA max.
ON response 20 microseconds max, OFF response 400 microseconds max - suitable for standard-speed sensor wiring. Selectable Synchronous I/O refreshing or Free-Run refreshing in Sysmac Studio. Screwless push-in 16-terminal connector; 12 mm wide, 65 g. The NPN sibling is NX-ID5342. The 8-pt PNP sibling is NX-ID4442. The 32-pt PNP MIL connector is NX-ID6142-5.
Key Features
- NX-series 16-point DC input unit, PNP internal common, 24 VDC rated (15 to 28.8 VDC operating range), 3.5 mA typical input current
- ON response 20 microseconds max, OFF response 400 microseconds max, ON at 15 VDC min / 2 mA min, OFF at 5 VDC max / 0.5 mA max
- Selectable Synchronous I/O refreshing or Free-Run refreshing in Sysmac Studio; configurable input filter from no filter to 256 ms
- Screwless push-in 16-terminal connector, photcoupler isolation, 12 (W) x 100 (H) x 71 (D) mm, 65 g, IP20
- SKU: NX-ID5442
- Series: NX-series Digital Input Unit (NX-ID family) on NX I/O Bus
- Voltage: 24 VDC
- I/O: 16 I/O
Best-Fit Applications
- Packaging line where 16 photo-eye sensors feed the NX102-1200 CPU through the NX-ID5442 screwless push-in connector for tool-free field wiring
- Conveyor cell where 16 PNP proximity switches on 24 VDC run back to a single 12 mm slice on the NX-ECC201 EtherCAT Coupler
- Spare replacement on a bottling line where the original NX-ID5442 was lost and Sysmac Studio holds the I/O map on the SD card
Buying Checklist
- Pick the NX-ID5442 when the cell needs 16 PNP (sourcing) 24 VDC inputs on a 12 mm NX slice with screwless push-in wiring.
- Pick the NX-ID5342 instead when the field sensors are NPN (sinking) outputs that switch to 0 V instead of 24 V.
- Pick the NX-ID6142-5 instead when 32 PNP inputs on a single MIL40 connector are needed for higher-density wiring.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series Digital Input Unit (NX-ID family) on NX I/O Bus |
| Model / SKU | NX-ID5442 |
| Number of Points | 16 PNP (sourcing) DC inputs, 16 per common |
| Rated Input Voltage | 24 VDC nominal (15 to 28.8 VDC operating range) |
| Input Current / Thresholds | 3.5 mA typical at 24 VDC; ON at 15 VDC min / 2 mA min; OFF at 5 VDC max / 0.5 mA max (between IOG and each signal) |
| ON / OFF Response | ON 20 microseconds max; OFF 400 microseconds max |
| Refreshing | Selectable Synchronous I/O refreshing or Free-Run refreshing |
| Input Filter | No filter, 0.25 ms, 0.5 ms, 1 ms (factory setting), 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms |
| Connection / Power | Screwless push-in 16-terminal connector (1-wire); IOG 0.1 A per terminal max; NX unit power 0.90 W max on CPU / 0.50 W max on Coupler |
| Isolation | Photocoupler isolation between input and NX bus; dielectric 510 VAC for 1 minute; insulation 20 MOhm min at 100 VDC |
| Dimensions / Approvals | 12 (W) x 100 (H) x 71 (D) mm; 65 g; IP20; 0 to 55 C ambient; SIL None; CE, cULus, KC, Lloyd, NK |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-ID5442
What is the Omron NX-ID5442 used for?
It is the NX-series 16-point PNP DC input unit for 24 VDC sourcing sensor signals on a 12 mm NX slice. Typical uses are packaging line photo-eye inputs, conveyor proximity-switch wiring, and spare replacement where Sysmac Studio holds the I/O map.
NX-ID5442 vs NX-ID5342 - what is the difference?
Both are NX-series 16-point DC input units on the same 12 mm slice. The ID5442 has PNP (sourcing) inputs that turn ON when the signal rises to 24 VDC. The ID5342 has NPN (sinking) inputs that turn ON when the signal drops to 0 V. Pick the ID5442 for PNP sensors; pick the ID5342 for NPN sensors.
Does the NX-ID5442 need an external 24 VDC supply?
No I/O supply is needed; the slice draws NX bus power (0.90 W max on CPU, 0.50 W max on Coupler). The IOG terminal on the connector is for the input common return path and is rated 0.1 A per terminal max. Sensor power comes from the same 24 VDC supply that runs the sensors.
What cable connector does the NX-ID5442 use?
A screwless push-in 16-terminal connector, removable for tool-free field replacement. The NX-TBA162 is the spare connector (marked A+B) for this slice. NX-AUX02 coding pins prevent plugging the wrong connector onto the wrong slice when you have multiple NX units in the same rack.
How do I configure the NX-ID5442 in Sysmac Studio?
Add it under Configurations - CPU Rack or EtherCAT Slave Terminal, drag the NX-ID5442 from the parts list to the rack, and set the input filter and refreshing mode (Synchronous I/O or Free-Run) on the slice's parameter tab. The NX-PC0010 or NX-PC0020 power connection unit must be present on the rack to provide the IOG common rail.
