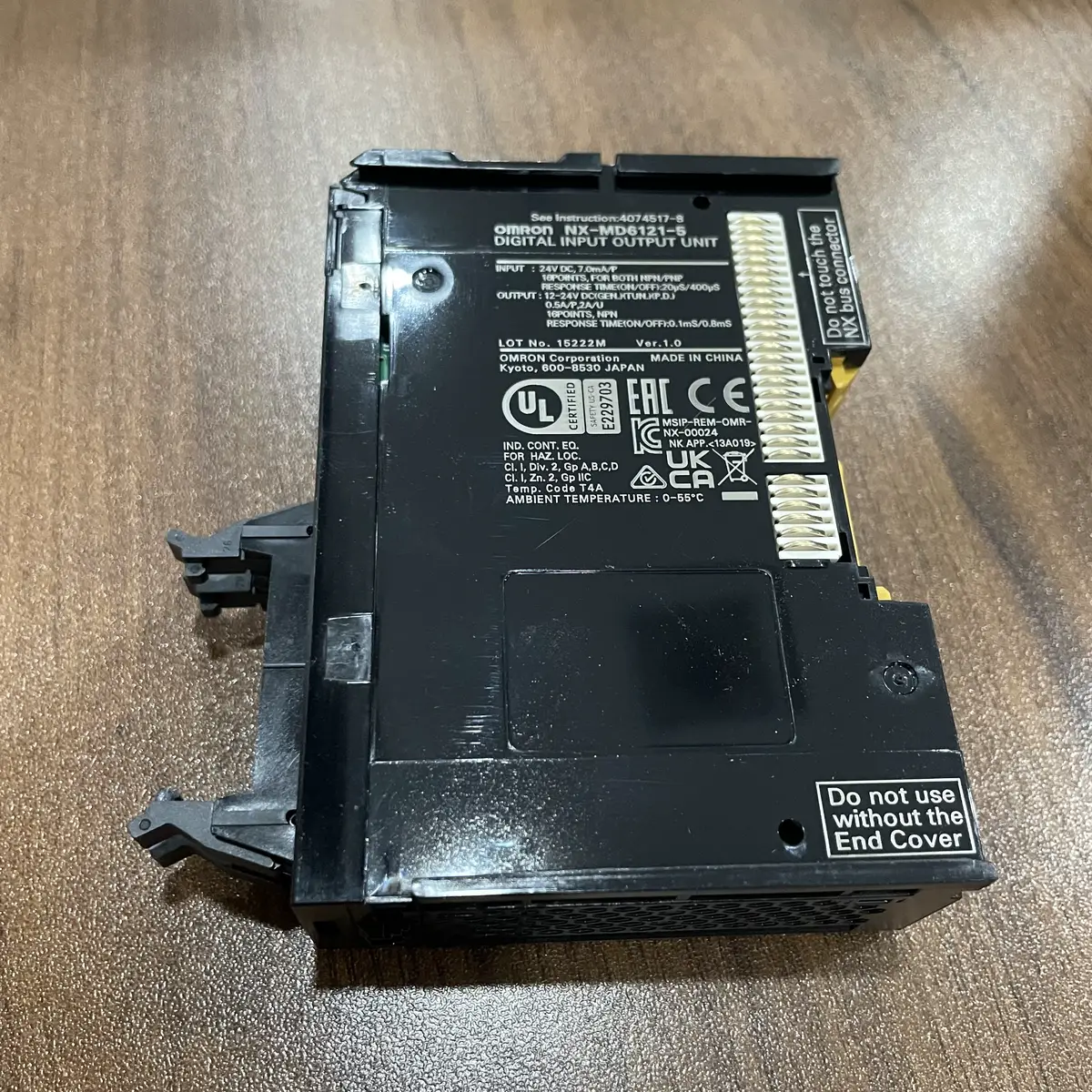

Omron NX-MD6121-5 — 16 In / 16 Out NPN, MIL20
SKU: NX-MD6121-5USD 112.50
Omron NX-MD6121-5 NX mixed digital I/O, 16 DC inputs + 16 NPN outputs 0.5 A, 2 x MIL20, 30 mm wide. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-MD6121-5 is the NX-series mixed digital I/O unit with 16 DC inputs and 16 NPN transistor outputs, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It sits on the NX I/O bus behind an NX-ECC201 EtherCAT Coupler or on the right of an NX102 / NX1P2 CPU and gives you 16 DC inputs (PNP or NPN selectable) and 16 NPN transistor outputs at 0.5 A per point, 2 A per common, on a single 30 mm slice. Input voltage range 15-28.8 VDC, ON/OFF delay 0.02-0.4 ms. Output ON/OFF delay 0.1/0.8 ms.

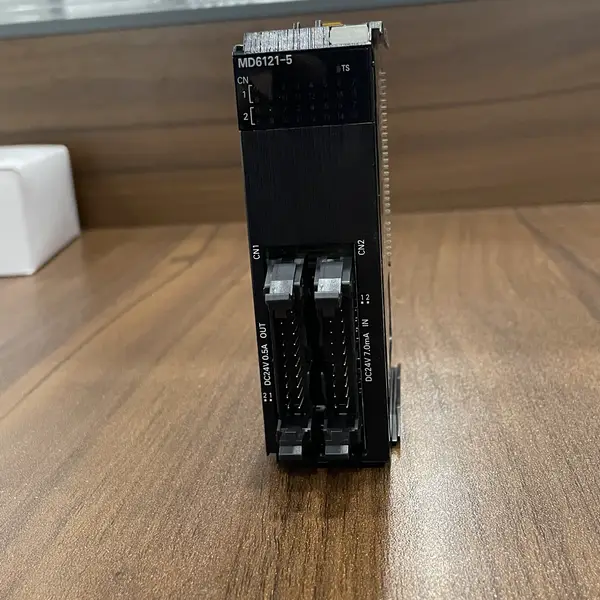

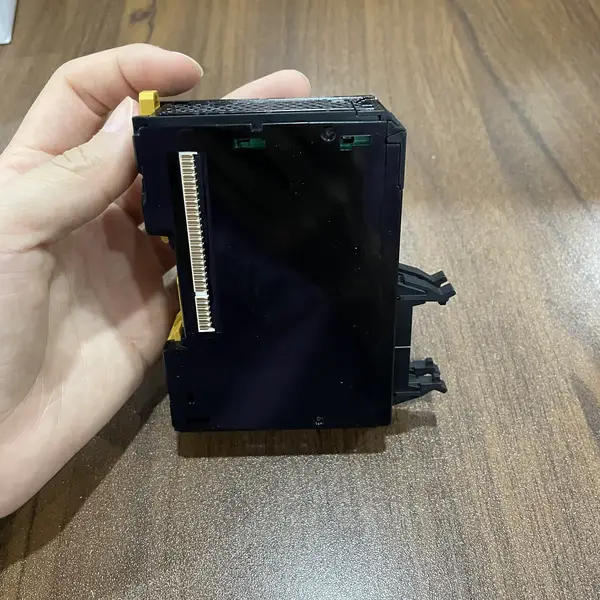

Two MIL20 connectors on the front accept industry-standard flat cables or OMRON XW2Z-[][]L pigtail cables. Photocoupler isolation 510 VAC. 30 x 100 x 71 mm, 155 g. The 32-output NPN sibling with MIL40 is NX-OD6121-5. The 32-output PNP with MIL40 is NX-OD6256-5. The 32-input only MIL40 is NX-ID6142-5.
Key Features
- NX-series mixed digital I/O unit with 16 DC inputs (PNP or NPN selectable, 15-28.8 VDC) and 16 NPN transistor outputs (0.5 A per point, 2 A per common)
- Input ON/OFF delay 0.02-0.4 ms (standard speed); output ON/OFF delay 0.1/0.8 ms; photocoupler isolation 510 VAC
- 2 x MIL20 connectors on the front for flat cable or XW2Z-[][]L pigtail, 30 (W) x 100 (H) x 71 (D) mm, 155 g, IP20
- Synchronous or Free-Run I/O refreshing on the NX I/O bus behind NX-ECC201 Coupler or NX102 / NX1P2 CPU
- SKU: NX-MD6121-5
- Series: NX-series Digital Mixed I/O Unit (NX-MD family) on NX I/O Bus
- I/O: 32 points
Best-Fit Applications
- Packaging line where 16 sensor inputs read fill-level, label-present, and cap-position signals and 16 NPN outputs control pneumatic valves and indicator lamps
- Conveyor cell where 16 photo-eye inputs feed the NX102-1200 CPU and 16 NPN outputs drive 24 VDC relay coils via interposing relays
- Spare replacement on an assembly station where the original NX-MD6121-5 was lost and Sysmac Studio has the I/O map on the SD card
Buying Checklist
- Pick the NX-MD6121-5 when the cell needs 16 inputs and 16 NPN outputs on MIL20 connectors on one 30 mm NX slice.
- Pick the NX-OD6121-5 instead when the cell needs only 32 NPN outputs (no inputs) on a single MIL40 connector.
- Pick the NX-OD6256-5 instead when the loads need PNP (sourcing) outputs instead of NPN (sinking) on a single MIL40 connector.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series Digital Mixed I/O Unit (NX-MD family) on NX I/O Bus |
| Model / SKU | NX-MD6121-5 |
| Total I/O | 32 points: 16 DC inputs (PNP or NPN selectable) + 16 NPN transistor outputs |
| Input Specs | 16 inputs, 24 VDC nominal (15 to 28.8 VDC operating range), input current ~6 mA per point, ON voltage 15 VDC min, OFF voltage 5 VDC max, ON/OFF delay 0.02 to 0.4 ms; 16 per common |
| Output Specs | 16 outputs, NPN (sinking), 12 to 24 VDC load, 0.5 A per point, 2 A per common, residual 1.2 VDC max, leakage 0.1 mA max, ON/OFF delay 0.1/0.8 ms; 16 per common |
| Short-Circuit Protection | Not on this -5 NPN variant (no per-point protection); load short-circuit detection at common level only |
| Connection | 2 x MIL20 connectors (not included); compatible with OMRON XW2Z-[][]L pigtail cables and standard flat cables |
| Isolation / Dielectric | Photocoupler isolation between input, output, and NX bus; 510 VAC for 1 minute |
| Refreshing | Synchronous I/O refreshing with EtherCAT cycle or Free-Run refreshing, set in Sysmac Studio |
| Power Consumption | NX unit power 1.20 W max on CPU; 0.95 W max on Coupler; I/O power from NX bus |
| Dimensions / Approvals | 30 (W) x 100 (H) x 71 (D) mm; 155 g; IP20; 0 to 55 C ambient; CE, cULus, RCM, KC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-MD6121-5
Does the NX-MD6121-5 accept PNP inputs?
Yes. The 16 inputs are PNP or NPN selectable per slice via the Sysmac Studio configuration. The 16 outputs are NPN (sinking) only - for PNP outputs, pick the NX-MD6121-6 (PNP variant) or use an NX-OD6256-5 output slice alongside.
What cable do I use with the NX-MD6121-5?
OMRON XW2Z-[][]L pigtail cable with MIL20 connector on the slice end and bare-end flying leads (or a terminal block) on the field end. Common lengths are 1 m, 1.5 m, 2 m, 3 m, 5 m, and 10 m. Any third-party MIL20 flat cable with 1.27 mm pitch also fits; the connector is industry-standard.
Does the NX-MD6121-5 have short-circuit protection?
Not on this -5 NPN variant. Output short-circuit detection is at the common level only (trips at 2 A per common) - no per-point protection. For per-point short-circuit protection and PNP outputs, pick the NX-MD6121-6. For NPN with per-point protection, pick the NX-OD5121-1 or NX-OD5121-5 (16-pt NPN).
What is the maximum operating voltage on the NX-MD6121-5?
15 to 28.8 VDC on the input channels (24 VDC nominal), 12 to 24 VDC on the output load (24 VDC typical). Outputs switch 0.5 A per point at 24 VDC, up to 2 A per common. Inputs draw about 6 mA per point at 24 VDC; ON at 15 VDC min, OFF at 5 VDC max.
How do I wire the NX-MD6121-5 to field devices?
Plug two XW2Z-[][]L pigtail cables (MIL20 connector on the slice end) into the front of the slice. The first MIL20 carries the 16 inputs; the second carries the 16 outputs. For NPN sensors, run the sensor negative to the slice common; for PNP sensors, switch the input mode in Sysmac Studio. Outputs sink to the slice common at 0.5 A per point.
