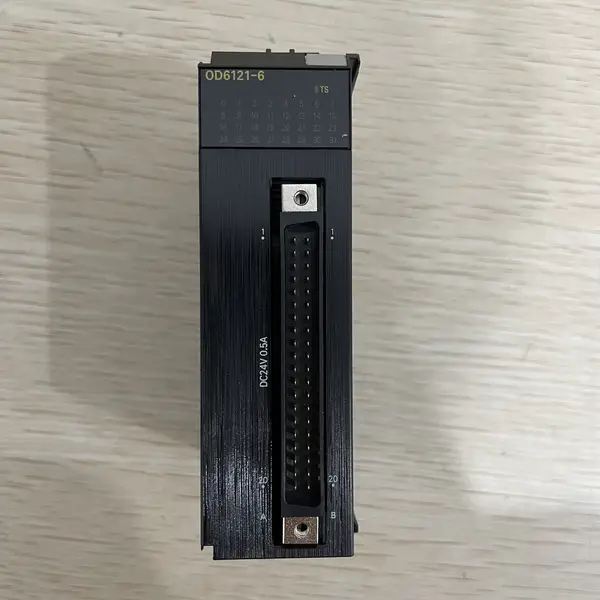

Omron NX-OD6121-6 — front face of the 32-point NPN output unit showing the FCN40 Fujitsu/OTAX connector socket, the TS and per-point output indicator LEDs and the NX-OD6121-6 type label

Omron NX-OD6121-6 — 32-Pt NPN Output, FCN40

SKU: NX-OD6121-6

USD 82.00

NX 32-pt NPN output, 12-24 VDC, 0.5 A/pt, FCN40 Fujitsu/OTAX connector. In stock, China.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron NX-OD6121-6 is an NX-series 32-point NPN transistor output unit with an FCN40 Fujitsu/OTAX connector It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).

The unit drives 32 NPN outputs at 12 to 24 VDC with a maximum load of 0.5 A per point, 2 A per common, and 4 A per unit. ON/OFF response is 0.1 ms ON and 0.8 ms OFF for fast valve switching.

Body size is 30 x 100 x 71 mm at 90 g. Key specs: Number of Points 32 NPN outputs; Rated Voltage 12 to 24 VDC; Operating Load Voltage Range 10.2 to 28.8 VDC; Maximum Load Current 0.5 A per point, 2 A per common, 4 A per unit; Maximum Inrush Current 4.0 A per point, 10 ms max; ON/OFF Response Time 0.1 ms ON / 0.8 ms OFF; Residual Voltage 1.5 V max at load current; Leakage Current 0.1 mA max.

Key Features

  • NX-series 32-point NPN transistor output unit, 12-24 VDC
  • 0.5 A per point, 2 A per common, 4 A per unit, 0.1 ms ON response
  • FCN40 Fujitsu/OTAX connector (plug not included), Free-Run or Synchronous I/O
  • Photocoupler isolation, 30 x 100 x 71 mm, 90 g, no short-circuit protection
  • SKU: NX-OD6121-6
  • Series: NX-series Transistor Output Unit
  • Voltage: 12 TO 24 VDC
  • I/O: 32 I/O

Best-Fit Applications

  • Conveyor diverter array where each NPN outputs feeds a 24 VDC actuator and needs to ride along with a Free-Run NX-ECC203 EtherCAT coupler.
  • Servo amplifier control panel where 32 outputs drive enable, alarm-reset, and mode-select lines on 8 R88D-1SN servo drives.
  • High-density solenoid bank on a packaging machine where 32 NPN outputs switch pneumatic valves at a 0.1 ms cycle.

Buying Checklist

  • Choose the NX-OD6121-5 instead when the panel uses a MIL40 ribbon instead of FCN40.
  • Choose the NX-OD6256-5 instead when PNP sourcing outputs are required for the same load class.
  • Choose the NX-OD6121-6 when the cabinet uses a Fujitsu/OTAX FCN40 connector and the outputs are NPN.

Technical Specifications

Series NX-series Transistor Output Unit
Number of Points 32 NPN outputs
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 28.8 VDC
Maximum Load Current 0.5 A per point, 2 A per common, 4 A per unit
Maximum Inrush Current 4.0 A per point, 10 ms max
ON/OFF Response Time 0.1 ms ON / 0.8 ms OFF
Residual Voltage 1.5 V max at load current
Leakage Current 0.1 mA max
I/O Refreshing Method Synchronous I/O or Free-Run
External Connection FCN40 Fujitsu/OTAX connector (plug not included)
Dimensions 30 x 100 x 71 mm, 90 g, IP20

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for NX-OD6121-6

Does the NX-OD6121-6 have short-circuit protection?
No - the NX-OD6121-6 does not include load short-circuit protection, and neither does the NX-OD6121-5 MIL40 NPN variant it is compared with: Omron's catalogue records Short-circuit protected outputs: FALSE for both. The connector, not the protection level, is what distinguishes them. For inductive loads, add an external flyback diode or a snubber across each coil to protect the output transistor from inductive kickback.
What is the difference between NX-OD6121-5 and NX-OD6121-6?
The NX-OD6121-5 uses a MIL40 connector and the NX-OD6121-6 uses the FCN40 Fujitsu/OTAX connector. Neither includes load short-circuit protection, so choose by connector type on the panel and fit external protection for inductive loads. Both are 32-point NPN at 0.5 A per point. Choose by connector type on the panel.
Can the NX-OD6121-6 mount on the NX-ECC203 EtherCAT coupler?
Yes - the NX-OD6121-6 mounts on any NX-ECC201, NX-ECC202, NX-ECC203 EtherCAT Coupler, on an NX-EIC202 EtherNet/IP Coupler, or directly on the NX102 modular CPU bus. Up to 63 NX slices can sit on the same sub-node at one time today.
What is the maximum cable run for NX-OD6121-6 outputs?
Output wiring runs are typically under 10 m when the load is a 24 VDC relay coil, and under 3 m for high-speed pneumatic valves where the 0.1 ms response is critical. Use shielded cable for runs over 5 m in noisy cabinets and route away from VFD power cables.
