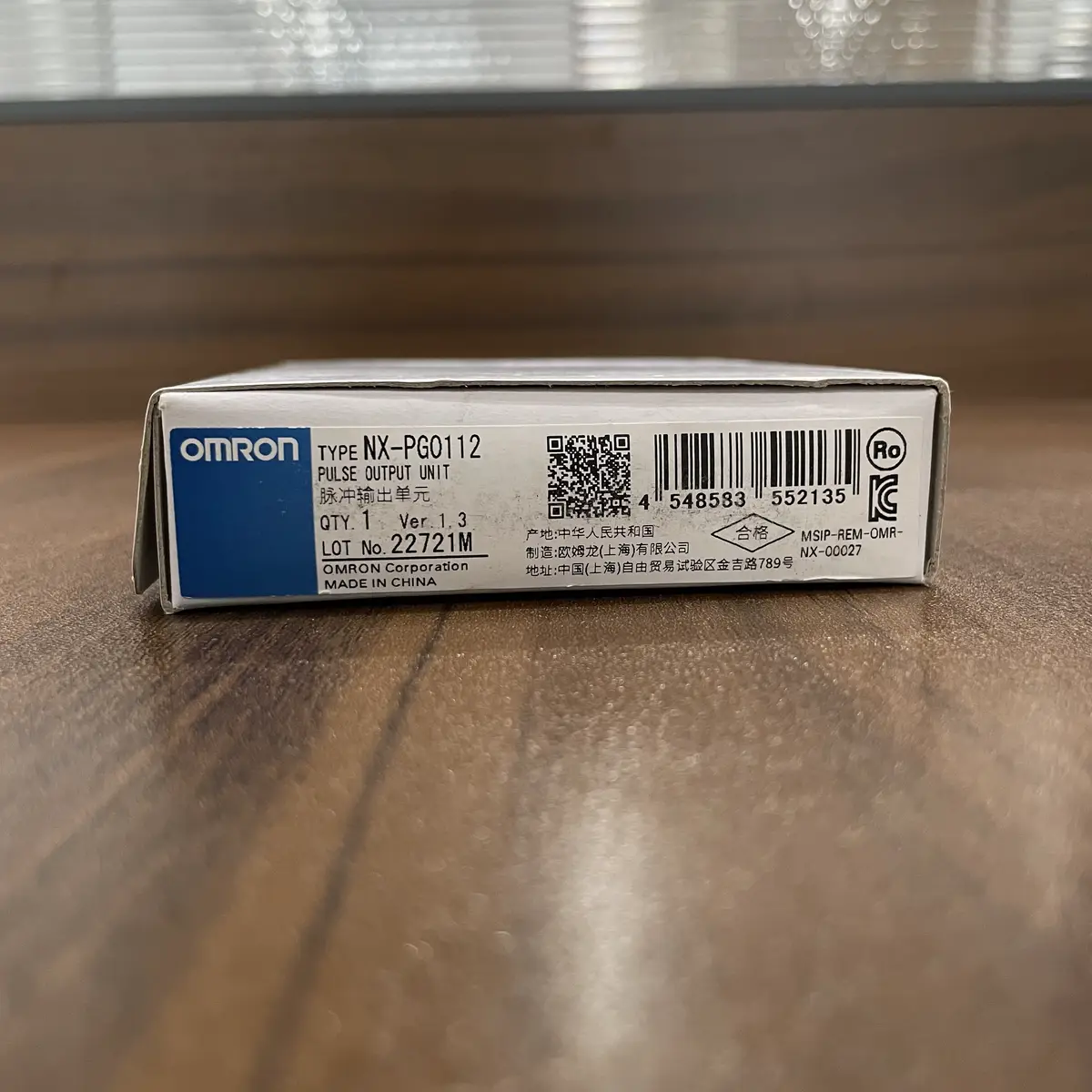

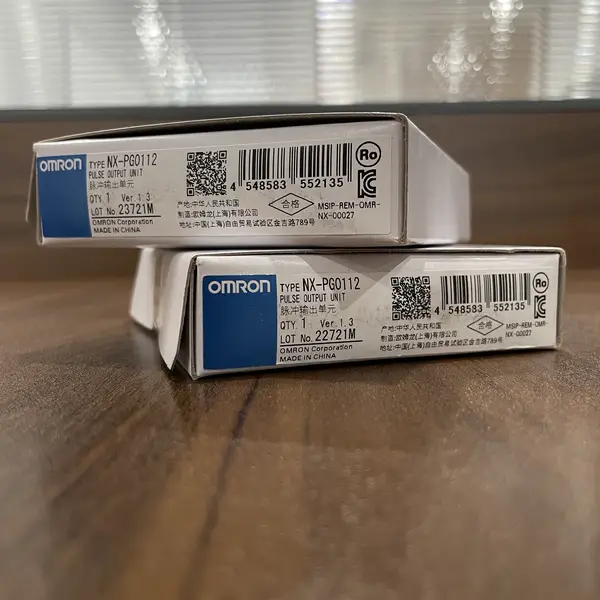

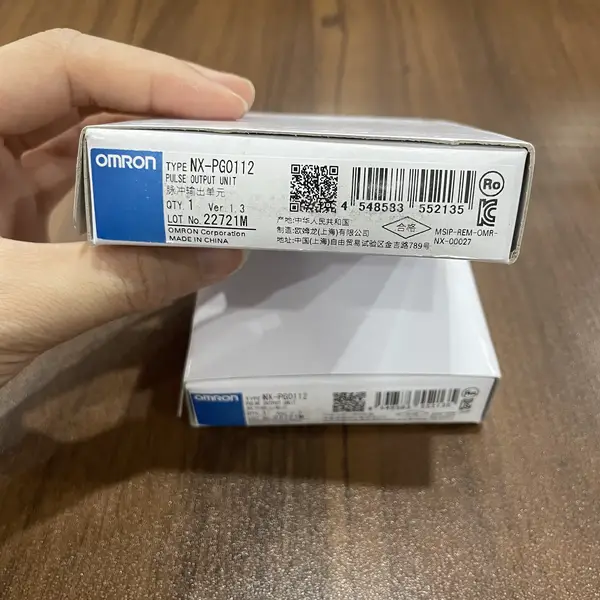

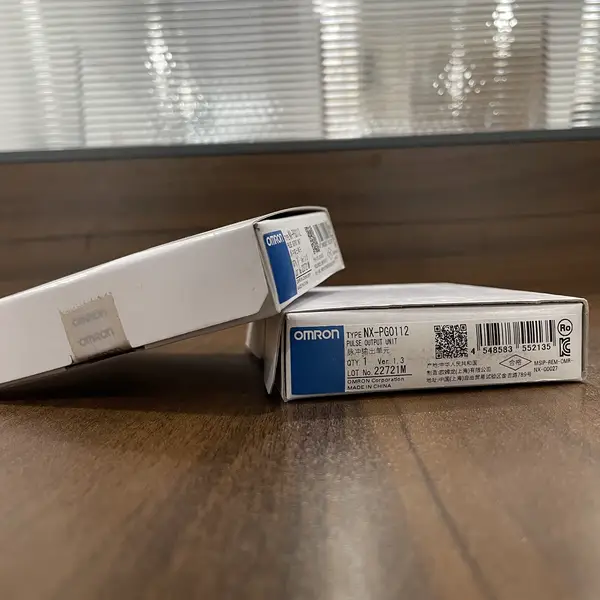

Omron NX-PG0112 — NX Pulse Output, 1-Ch, 500 kpps
SKU: NX-PG0112USD 115.00
Omron NX-PG0112 NX-series 1-axis pulse output unit, NPN open collector, 500 kpps, 12 mm wide. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-PG0112 is the NX-series 1-axis Pulse Output unit with NPN open-collector output, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series Position Interface Unit datasheet.
It plugs into the NX I/O bus on an NX1P2 / NJ5 / NX102 controller or an NX-ECC201 EtherCAT Coupler and outputs open-loop pulse trains to a stepper drive or a pulse-input servo drive. Maximum pulse output is 500 kpps. Pulse output method is selectable as forward/reverse pulses or pulse + direction. The unit has 2 external inputs (limit, origin, latch) and 3 external outputs (forward pulse, reverse pulse, general output).
Typical use is jogging a single stepper axis from an NX102-1200 or from an NJ501-1300 over EtherCAT, synchronized with the controller task period. For a PNP variant with the same NPN outputs, choose the NX-PG0122. For a 2-channel line-driver unit at 4 Mpps, choose the NX-PG0232-5. For an NX1P2 option slot analog input board, choose the NX1W-ADB21.
Key Features
- NX-series 1-axis Pulse Output unit with NPN open-collector output for stepper or pulse-input servo drives
- Maximum pulse output 500 kpps, selectable forward/reverse direction pulses or pulse + direction output method
- 2 external 24 VDC NPN inputs and 1 NPN external output, position range -2,147,483,648 to +2,147,483,647 pulses, 1 to 500,000 pps velocity
- Screwless push-in 16-terminal block, 12 x 100 x 71 mm, 70 g, photocoupler isolation on external inputs
- SKU: NX-PG0112
- Series: NX-series machine automation I/O, position interface / pulse output (NX-PG)
- I/O: 203 I/O
Best-Fit Applications
- Single-axis stepper indexer on a packaging conveyor where the NX-PG0112 generates 500 kpps pulses from an NX102-1200 over EtherCAT
- Cam-operated divider table where one pulse axis synchronizes a rotary indexer with the main conveyor at the NX-ECC201 cycle
- Spare replacement on a legacy CJ1M-CPU21 motion panel where the NX-PG0112 picks up the pulse axis on an NX-ECC201 EtherCAT Coupler
Buying Checklist
- Pick the NX-PG0112 when the project needs a single NPN open-collector pulse axis at up to 500 kpps on the NX I/O bus.
- Pick the NX-PG0232-5 instead when the project needs two channels of line-driver pulse output at up to 4 Mpps on the same 30 mm body.
- Pick the NX-OD4256 instead when the project needs digital outputs, not pulse trains, on the NX I/O bus.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series machine automation I/O, position interface / pulse output (NX-PG) |
| Model / SKU | NX-PG0112 |
| Number of Axes | 1 axis pulse output, open-collector NPN |
| Maximum Pulse Output | 500 kpps; control unit pulses; position range -2,147,483,648 to +2,147,483,647 pulses |
| Pulse Output Method | Forward and reverse direction pulses, or pulse + direction output |
| External Inputs | 2 points NPN, 24 VDC, ON 15 VDC min / 3 mA min, OFF 4.0 VDC max / 1 mA max, response 1 us ON / 2 us OFF |
| External Outputs | 1 point NPN external output, 24 VDC rated, load voltage 15 to 28.8 VDC, max load 30 mA, residual 1.0 V max, leakage 0.1 mA max, response 5 us |
| Velocity Control Range | 1 to 500,000 pps; absolute, relative, and interrupt feeding positioning; homing, jogging, electronic cam and gear |
| I/O Refresh | Synchronous I/O refreshing or task-period prioritized refreshing; synchronous I/O refreshing requires an NX-ECC203 (Unit Ver. 1.2 or later) |
| Power | NX Unit power 1.15 W max on CPU, 0.80 W max on Communications Coupler; I/O supply current 20 mA max from NX bus 20.4 to 28.8 VDC |
| Isolation / Wiring | Photocoupler isolation on external inputs, digital isolator on external outputs; dielectric 510 VAC for 1 min; screwless 16-terminal push-in block, AWG24 to AWG16; cable length 3 m max; 12 (W) x 100 (H) x 71 (D) mm, 70 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-PG0112
What is the Omron NX-PG0112 used for?
It is the NX-series 1-axis Pulse Output unit with NPN open-collector output. It generates pulse trains at up to 500 kpps to drive a stepper or pulse-input servo drive on the NX I/O bus. Typical uses are single-axis stepper indexers on packaging conveyors, cam-operated divider tables, and motion retrofits on legacy CJ1M pulse panels.
NX-PG0112 vs NX-PG0232-5 - what is the difference?
Both are NX-series Pulse Output units. The NX-PG0112 has one NPN open-collector channel at up to 500 kpps on a 12 mm wide body. The NX-PG0232-5 has two NPN line-driver channels at up to 4 Mpps on a 30 mm wide body with a MIL34 connector. Pick the PG0112 for a single short-cable stepper axis; pick the PG0232-5 for two high-speed differential axes.
Does the NX-PG0112 support PNP drivers?
No. The NX-PG0112 is the NPN open-collector variant. For a PNP output on the same 12 mm wide body, choose the NX-PG0122. The NPN output sinks current to the common; the PNP variant sources current to the load. Most stepper drives accept either; check the drive's input schematic first.
What NX controller works with the NX-PG0112?
Any controller that exposes the NX I/O bus: an NX1P2 CPU, an NX102 modular CPU, an NJ5 CPU through an NX-ECC201 EtherCAT Coupler, or an NX-ECC203 EtherCAT Coupler with a CJ1 / CJ2 master. Sysmac Studio configures the PG0112 as a single-axis position control axis through the MC Function Module.
What is the maximum cable length for the NX-PG0112 pulse output?
3 m maximum on the pulse output lines. Open-collector NPN output degrades rapidly over distance because the line capacitance rounds off the pulse edges. For longer cable runs, step up to the NX-PG0232-5 line-driver model, which supports up to 10 m on differential pulse outputs.
