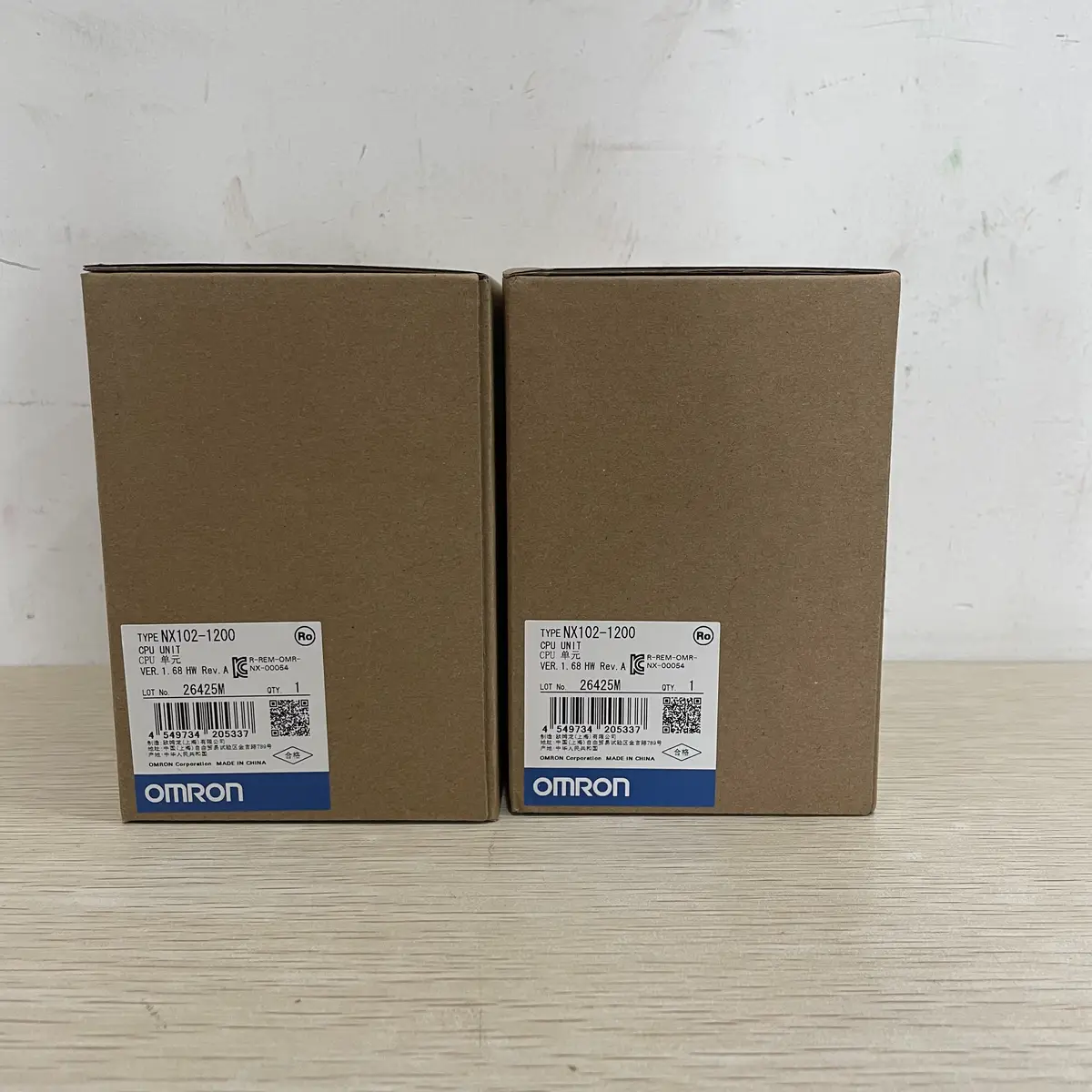

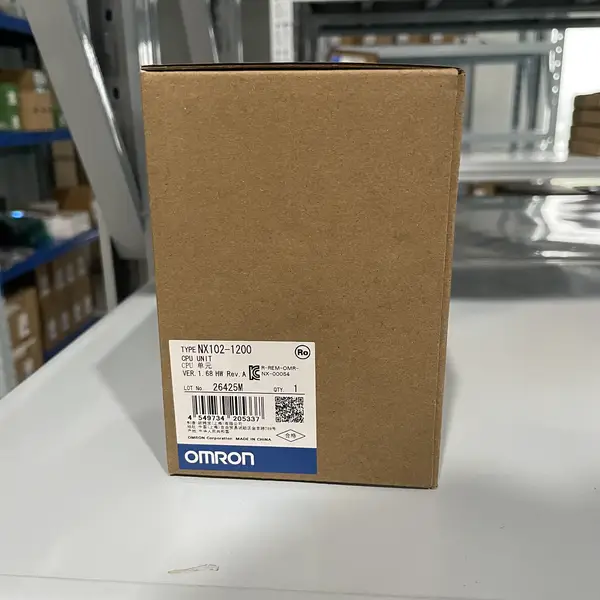

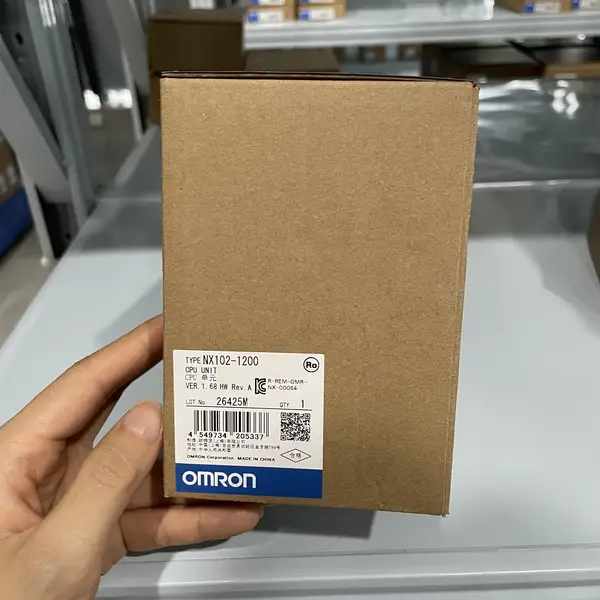

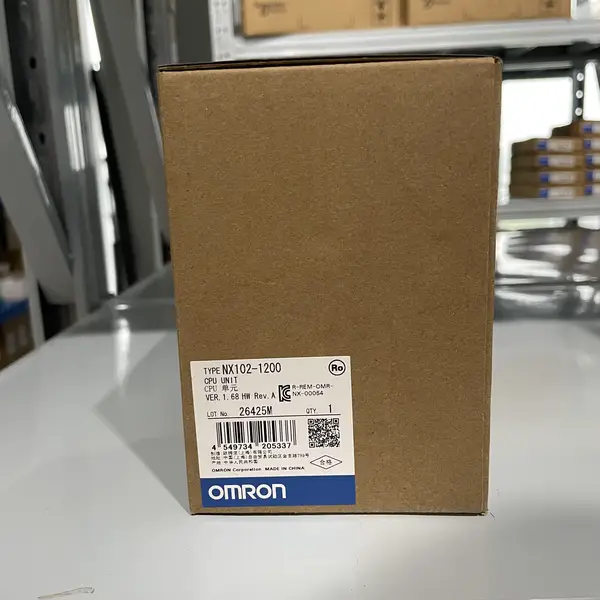

Omron NX102-1200 — Modular CPU, 8 Servo Axes
SKU: NX102-1200USD 860.00
Omron NX102-1200 NX102 modular CPU, 5 MB program, 8 EtherCAT servo axes, OPC-UA. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX102-1200 is a modular NX1-series machine automation controller CPU, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The CPU ships with 5 MB of program memory and 33.5 MB of variables (1.5 MB retained, 32 MB non-retained). Motion control covers 12 real axes: 8 synchronous EtherCAT servo axes plus 4 single-axis position control axes. Primary task cycle is 1 ms.
Two 100BASE-TX Ethernet sockets run EtherNet/IP and OPC-UA, plus a dedicated EtherCAT master port. Up to 32 local NX I/O units attach on the right, and 64 remote EtherCAT nodes are reachable through a coupler (up to 400 NX units end-to-end). Serial or analog expansion goes on an NX1W option board fitted to an NX1 I/O unit, not on this CPU. For SQL database connectivity, pick the NX102-9020. Programming is in Sysmac Studio.
Key Features
- NX102 modular CPU, 5 MB program / 33.5 MB variables (1.5 MB retained, 32 MB non-retained), 1 ms primary task cycle
- 8 synchronous EtherCAT servo axes + 4 single-axis position control axes (12 real axes max)
- Built-in EtherCAT master + 2 EtherNet/IP ports with OPC-UA server, 64 remote I/O nodes
- 32 local NX I/O units, SD memory card slot, battery-less operation, sequence + motion + position control
- SKU: NX102-1200
- Series: Omron NX102-series modular machine automation controller
- I/O: 32 I/O
Best-Fit Applications
- Multi-axis packaging line where 8 EtherCAT servos coordinate cutting and sealing stations with 1 ms deterministic cycle time
- Converting machine builder who needs an OPC-UA server to publish live machine data to a higher-level MES without an extra gateway
- Spare replacement on a retrofit where the old NJ-series CPU is being upgraded to NX102 to add EtherCAT ring topology redundancy
Buying Checklist
- Pick the NX102-1200 for a modular NX102 CPU with 8 EtherCAT servo axes and OPC-UA without SQL database connection.
- Pick the NX102-1100 instead when 4 motion axes and a smaller scope are enough and the budget is tighter.
- Pick the NX102-1220 instead when the line needs direct SQL database and MQTT connection on the controller itself.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NX102-series modular machine automation controller |
| Model / SKU | NX102-1200 |
| Primary Task Cycle | 1 ms |
| Program / Variables | 5 MB program / 33.5 MB variables (1.5 MB retained, 32 MB non-retained) |
| Motion Control | 12 real axes (8 EtherCAT synchronous servo + 4 single-axis position control), 15 axes including virtual |
| Communication | EtherCAT master, 2 EtherNet/IP (100BASE-TX) with OPC-UA server, no built-in serial |
| Local I/O | 32 NX units local, 64 remote I/O nodes over EtherCAT (up to 400 NX units via coupler) |
| I/O Capacity | 1024 points local (8960 with NX coupler) |
| Programming | Sysmac Studio, ladder / structured text / function block |
| Storage | SD memory card slot, battery-less operation |
| Dimensions / Weight | 66 (W) x 100 (H) x 100 (D) mm, 470 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX102-1200
What is the Omron NX102-1200 used for?
It is a modular NX1-series CPU for mid-size machines with 8 or fewer servo axes. Sequence, motion, position control, and OPC-UA run on a single 1 ms task, with EtherCAT and EtherNet/IP in one compact body.
Does the NX102-1200 have SQL database connection?
No. This model ships with OPC-UA but no SQL client. For direct SQL database connection (Microsoft SQL, Oracle, MySQL, PostgreSQL, etc.), pick the NX102-1220 sibling.
NX102-1200 vs NX102-1100 - what is the difference?
The 1200 supports 8 synchronous servo axes plus 4 PTP axes (12 total). The 1100 supports 4 synchronous servo axes plus 4 PTP axes (8 total). Memory and I/O limits are identical between the two.
How many local NX I/O units can attach to the NX102-1200?
Up to 32 NX units local on the right side of the CPU. Over EtherCAT, up to 64 remote nodes with another 400 NX units accessible through an NX-ECC coupler.
