Omron NX102-9020 — NX102 CPU with SQL, EtherCAT/IP
SKU: NX102-9020USD 1180.00

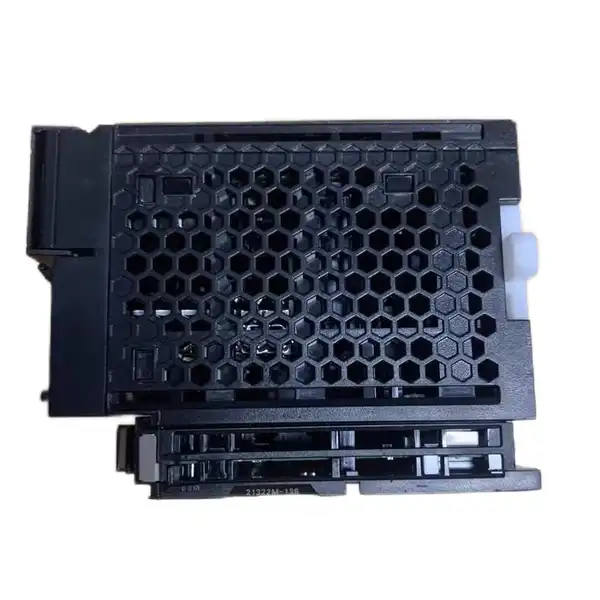

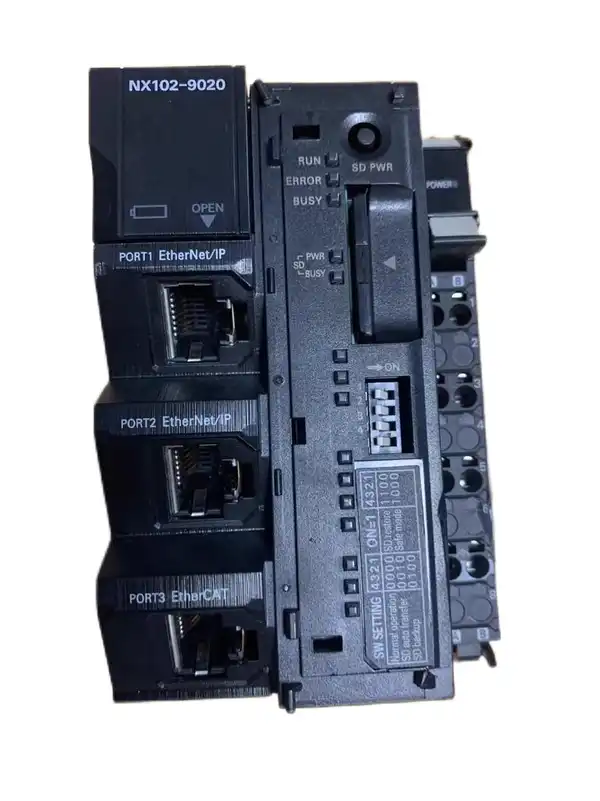

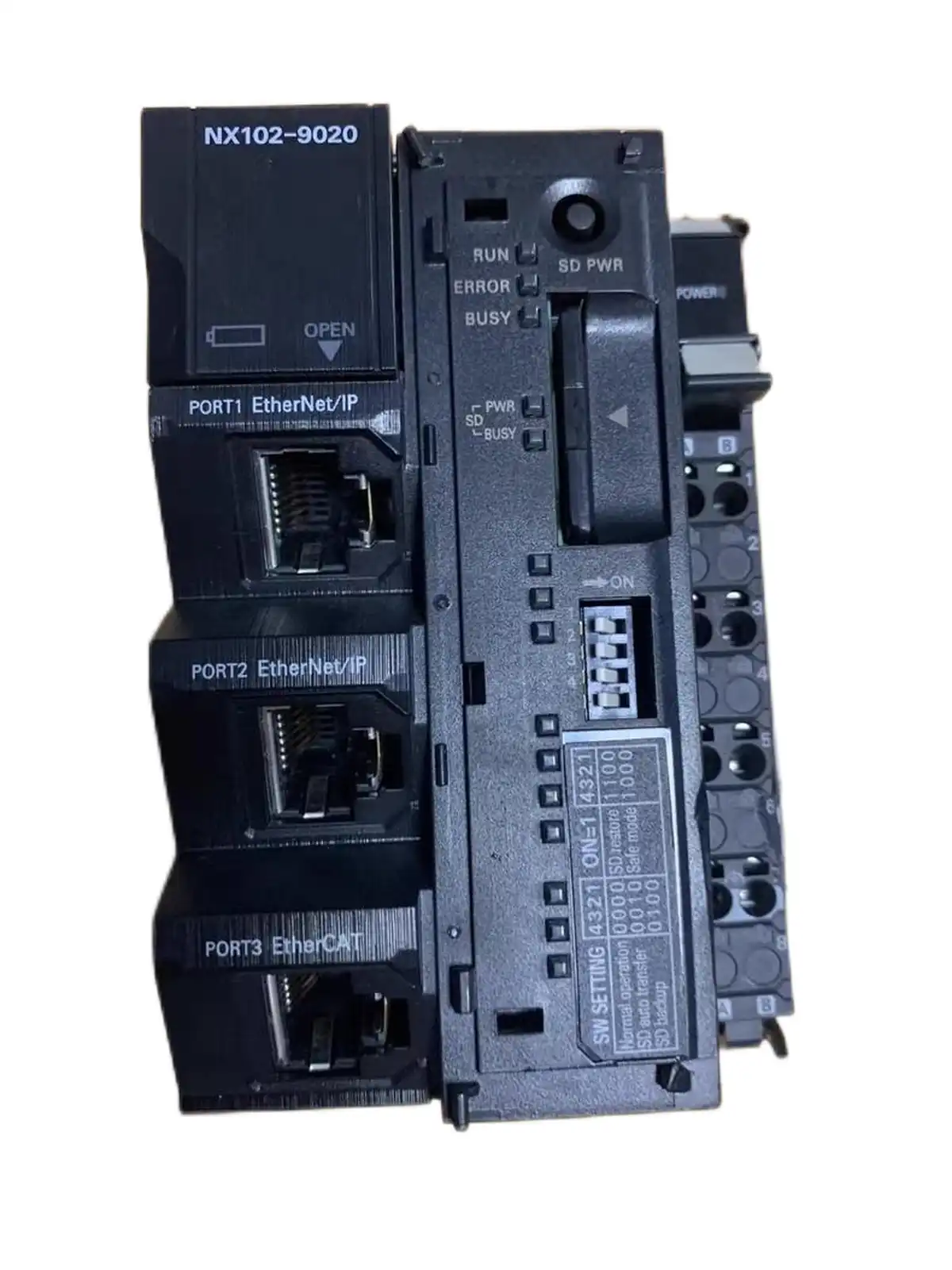

Omron NX102-9020 NX102 machine automation CPU with SQL database connection, 5 MB program, EtherCAT + 2 EtherNet/IP. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX102-9020 is an NX102-series machine automation CPU with a built-in SQL database connection function, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Program memory is 5 MB. Variable memory is 1.5 MB non-volatile plus 32 MB volatile (33.5 MB total). Motion control covers 0 servo axes and 4 single-axis position control axes. Built-in network ports are EtherCAT (master, up to 64 nodes) and 2 x EtherNet/IP (one carries an OPC UA server).
Supply is 24 VDC, 20.4 to 28.8 VDC allowable. DIN-rail mount. 100 (H) x 72 (W) x 90 (D) mm. Ships with the NX-END02 end cover and an HMC-SD291 SD memory card. The -DH variant adds time-series data collection. For a non-database sibling, pick the NX102-9000; for a smaller-memory model, the NX102-1000.
Key Features
- NX102 machine automation CPU with SQL database connection
- 5 MB program memory, 1.5 MB retained + 32 MB volatile variables
- EtherCAT master plus 2 EtherNet/IP ports (one carries OPC UA)
- 4 single-axis PTP axes, 24 VDC supply, NX-END02 cover and SD card included
- SKU: NX102-9020
- Series: Omron Sysmac NX1 / NX102-series machine automation controller
Best-Fit Applications
- Production data logger on a bottling line where the SQL port writes shift counts directly into the plant MES database without middleware
- Small machine controller where the 4 PTP axes cover indexing and the OPC UA port pushes status to the SCADA over Ethernet
- Spare drop-in for an NX102 rack where the original CPU failed and the NX102-9020 takes the same project and SD card
Buying Checklist
- Pick the NX102-9020 for an NX102 CPU with built-in SQL database connection on EtherCAT + 2 EtherNet/IP.
- Pick the NX102-9000 instead when the cabinet does not need SQL and the standard NX102 covers the cell.
- Pick the NX102-1100 instead when the application needs 6 single-axis PTP axes on the same NX102 platform.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron Sysmac NX1 / NX102-series machine automation controller |
| Model / SKU | NX102-9020 |
| Special Function | Database connection (SQL) |
| Program Capacity | 5 MB |
| Variable Memory | 1.5 MB retained / 32 MB volatile |
| Motion Control Axes | 0 servo axes, 4 single-axis PTP axes |
| EtherCAT | Built-in master, up to 64 nodes, 1 ms min cycle |
| EtherNet/IP | 2 ports, OPC UA server on one |
| Programming | Sysmac Studio, ladder / ST / function block |
| Mounting | DIN rail, 24 VDC supply (20.4 to 28.8 VDC) |
| Dimensions (W x H x D) | 66 × 100 × 100 mm; about 470 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX102-9020
Does the NX102-9020 support SQL databases?
Yes. The NX102-9020 has a built-in database connection function that runs SQL commands directly against a remote Microsoft SQL, MySQL, Oracle or PostgreSQL server. No middleware or extra unit is needed. The -DH variants add time-series data collection.
How many EtherCAT nodes can the NX102-9020 drive?
Up to 64 EtherCAT nodes on the built-in port, with a 1 ms minimum cycle time. Local NX I/O is limited to 32 units (or 400 with an NX-EIC202 coupler). For more than 64 nodes, step up to the NX502-series.
Does the NX102-9020 need a battery?
No, the unit ships without a battery. Variables marked as retained are held in non-volatile memory. A battery is only needed if you want the real-time clock to survive a long power-down.
What programming software does it use?
Sysmac Studio, the same software used for the NJ and NX1P controllers. Ladder, structured text and function-block programming. OPC UA tag bindings are configured in the same project.
