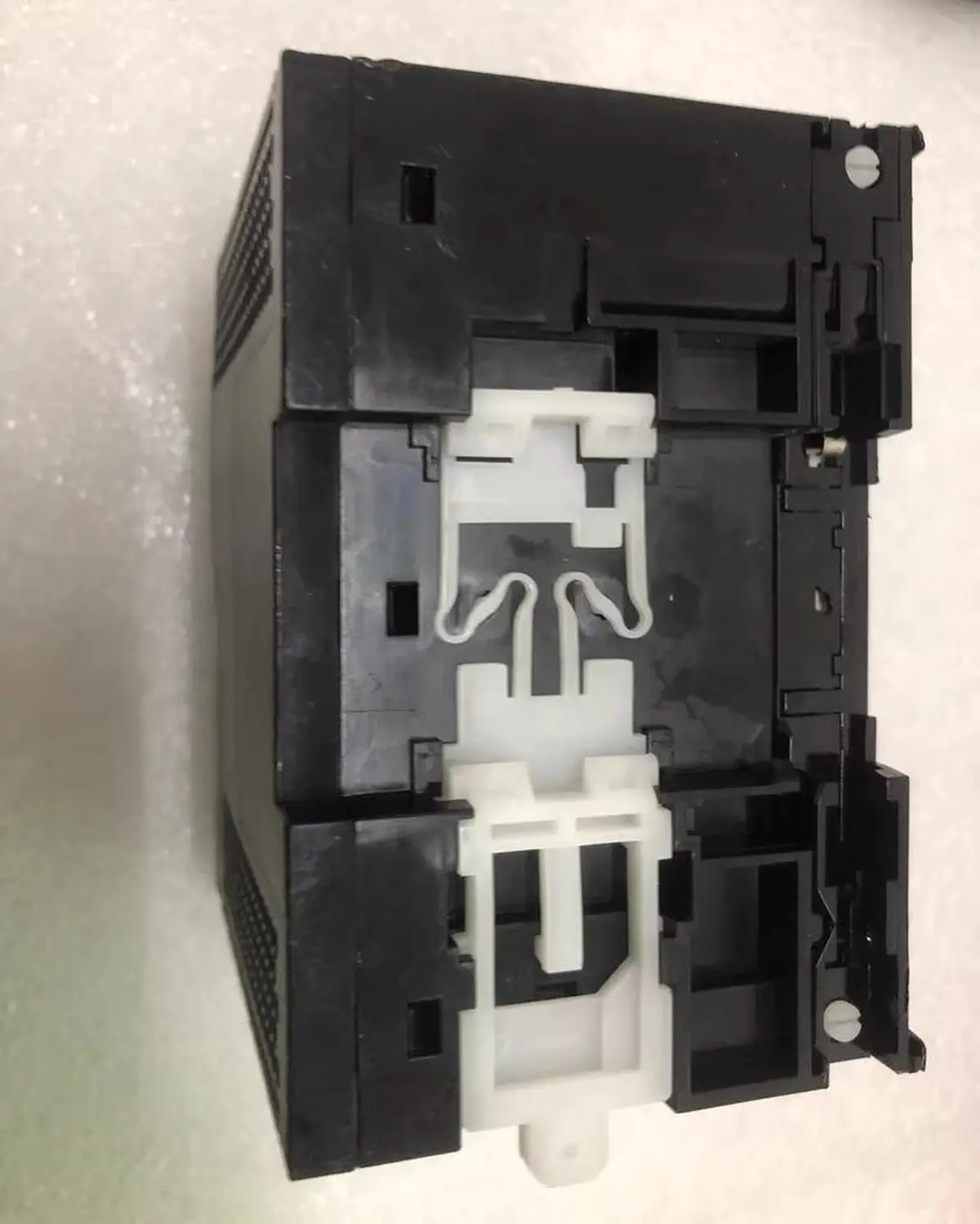

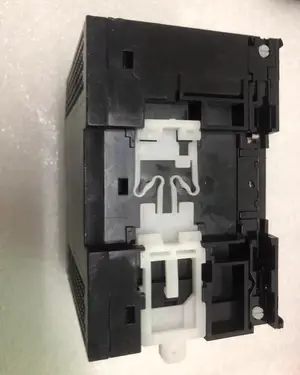

Omron NX102-1100 — NX1 Modular CPU, 4 Servo Axes
SKU: NX102-1100USD 835.00
Omron NX102-1100 Sysmac NX1 modular CPU, 5 MB program, EtherCAT + EtherNet/IP + OPC UA, 4 servo + 4 PTP axes. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX102-1100 is the Sysmac NX1 modular CPU unit, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It runs on 24 VDC, holds 5 MB of program memory and 33.5 MB of variables memory, and combines logic, motion, position, and OPC UA in one controller. The built-in EtherCAT master drives 4 synchronous servo axes and 4 single-axis PTP axes (15 total with virtual) with a 1 ms primary task cycle and 3.3 ns LD execution.

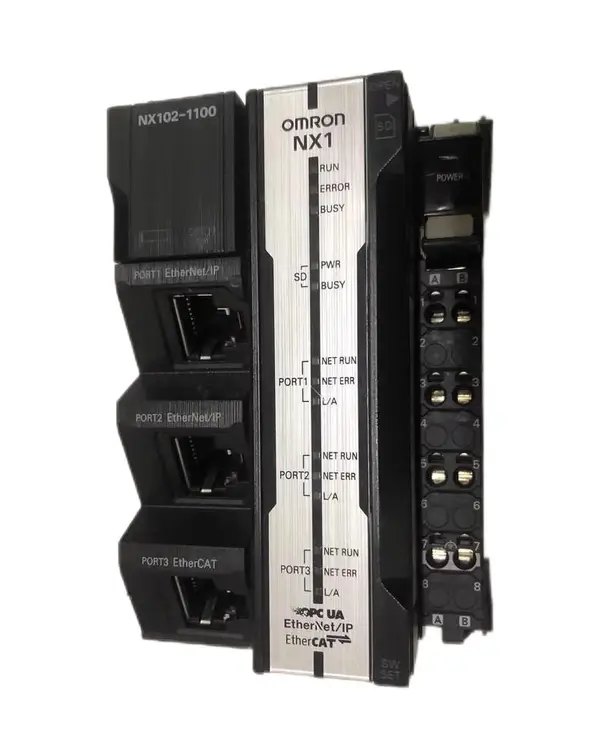

Two RJ45 Ethernet ports run EtherNet/IP (64 tag-data-link nodes) and standard TCP/IP. OPC UA is built in for SCADA / MES connectivity. Up to 32 NX expansion units stack on the local NX I/O bus and up to 64 EtherCAT slaves on remote nodes. Two option-board slots accept NX1W-CIF01 / CIF11 / CIF12 for serial. The lower-axis sibling is NX102-1000 (2 servo). The 8-servo step-up is NX102-1200. Older NJ1 controller is NJ101-1000.
Key Features
- Sysmac NX1 modular CPU with 5 MB program memory and 33.5 MB variables memory (1.5 MB retained / 32 MB volatile)
- Built-in EtherCAT master with 4 synchronous servo axes + 4 single-axis position control axes (15 total including virtual) and 1 ms primary task cycle
- Built-in EtherNet/IP scanner (64 connections), Ethernet TCP/IP, and OPC UA server for SCADA / MES integration
- Up to 32 NX-series expansion units on the local bus and 64 EtherCAT remote nodes; 2 option board slots for serial; 24 VDC supply; 470 g
- SKU: NX102-1100
- Series: Sysmac NX1 modular CPU (NX102 CPU family) on NX I/O Bus
- I/O: 32 I/O
Best-Fit Applications
- Four-axis pick-and-place cell where the NX102-1100 drives four 1S-series servos over EtherCAT and reads an NB5Q HMI on EtherNet/IP
- Synchronized cut-to-length line where the NX102-1100 positions a flying shear via electronic cam against a master encoder input
- Spare replacement on a packing machine where the original NX102-1100 was lost and Sysmac Studio has the project backup on the SD card
Buying Checklist
- Pick the NX102-1100 when the application needs 4 synchronous servo axes + 4 PTP axes with built-in OPC UA on a 66 mm wide modular CPU.
- Pick the NX102-1000 instead when 2 servo axes + 4 PTP axes is enough and no OPC UA is required (the lower-cost variant).
- Pick the NX102-1200 instead when 8 synchronous servo axes + 4 PTP axes is required on the same 5 MB / 33.5 MB body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Sysmac NX1 modular CPU (NX102 CPU family) on NX I/O Bus |
| Model / SKU | NX102-1100 |
| Program / Variables | 5 MB program memory; 33.5 MB variables memory (1.5 MB retained across power loss / 32 MB volatile) |
| Motion Axes | 4 synchronous motion axes + 4 single-axis position control axes + 15 total axes including virtual |
| Cycle / Execution | 1 ms primary task cycle; 3.3 ns LD instruction; 70 ns math instruction (long real) |
| Communication Ports | 2 Ethernet ports (EtherNet/IP scanner 64 connections + Ethernet TCP/IP); 1 EtherCAT master port; built-in OPC UA server; USB programming port |
| Option Boards | 2 option board slots for NX1W-CIF01 (RS-232C), NX1W-CIF11 (RS-422A/485), or NX1W-CIF12 (isolated RS-485) |
| I/O Expansion | Up to 32 NX-series expansion units on the local NX I/O bus; up to 64 EtherCAT remote I/O nodes |
| Controller Functions | Motion control, position control, sequence control, OPC UA server |
| Supply / Power | 24 VDC supply (operating range 20.4 to 28.8 VDC); supplied via unit power terminals |
| Dimensions / Approvals | 100 (H) x 66 (W) x 100 (D) mm; 470 g; IP20; 0 to 55 C ambient; CE, cULus (Class I Div 2), KC, RCM, EAC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX102-1100
NX102-1100 vs NX102-1200 - what is the difference?
Both are NX102 modular CPUs with 5 MB program / 33.5 MB variables memory. The 1100 has 4 synchronous servo axes + 4 PTP axes (15 total). The 1200 has 8 synchronous servo axes + 4 PTP axes (15 total). Both share the same 66 x 100 x 100 mm body, OPC UA server, and EtherNet/IP 64-connection scanner. Pick the 1100 for 4 servo; pick the 1200 for 8 servo.
Does the NX102-1100 need a separate EtherCAT Coupler?
No. The NX102-1100 is a modular CPU with built-in EtherCAT master. NX expansion units (digital I/O, analog, temperature, encoder) stack on the right side of the CPU and communicate over the internal NX bus. Remote EtherCAT slaves (G5 servo drives, MX2 inverter, NX-ECC201 slave terminals) hang off the EtherCAT port on the bottom.
Which software version is required to program the NX102-1100?
Sysmac Studio version 1.22 or higher. Older revisions will not recognize the CPU or expose the OPC UA server. The project lives in the controller or on a 5 mm HMC-SD291 SD card in the SD slot.
