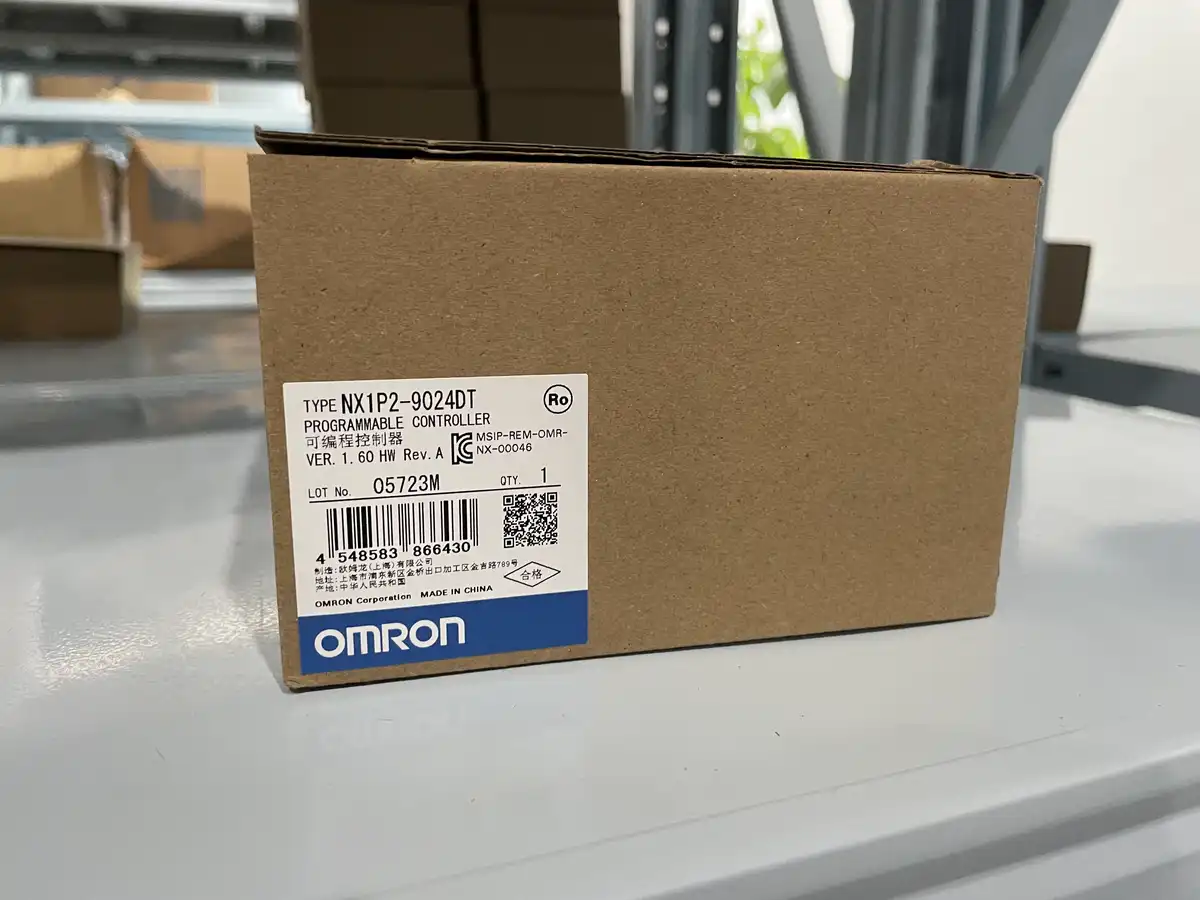

Omron NX1P2-9024DT — Compact PLC, 24 I/O, EtherCAT
SKU: NX1P2-9024DTUSD 242.00
Omron NX1P2-9024DT NX1P2 compact PLC, 14 inputs, 10 NPN outputs, EtherCAT + EtherNet/IP. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX1P2-9024DT is a compact PLC CPU unit from the NX1P2 series, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The CPU ships with 14 DC inputs and 10 NPN transistor outputs on a 24 VDC supply. Each output switches 300 mA per point and 2.4 A per common. Program memory is 1.5 MB and variables memory 2 MB, with a 2 ms primary task cycle. Two Ethernet sockets expose a built-in EtherCAT master and EtherNet/IP, with one option-board slot for serial or analog expansion.
Motion control tops out at 4 PTP axes with no synchronous servo axes - fine for indexing and small positioning jobs, but step up to the NX1P2-1040DT or NX102-9000 for synchronized motion. Up to 8 NX I/O units snap on the right side, with 16 nodes reachable over EtherCAT. Serial comes through an NX1W-CIF01 or NX1W-CIF11 option board. Programming is in Sysmac Studio.
Key Features
- NX1P2 compact PLC CPU, 14 DC inputs / 10 NPN transistor outputs, 24 VDC supply (20.4 to 28.8 VDC)
- Built-in EtherCAT master + EtherNet/IP on two RJ45 sockets, OPC-UA on the EtherNet/IP port
- 1.5 MB program memory, 2 MB variables, 2 ms primary task cycle, 4 PTP motion axes
- Up to 8 local NX units plus 16 remote I/O nodes over EtherCAT, single option-board slot
- SKU: NX1P2-9024DT
- Series: Omron NX1P2-series compact PLC CPU
- Voltage: 24 VDC
- I/O: 14 I/O
Best-Fit Applications
- Packaging indexer where 4 PTP axes drive a small servo packer and 10 NPN outputs switch solenoid valves without relay interposing
- Machine builder who needs EtherNet/IP upstream and EtherCAT servos on a single compact CPU without an extra rack PLC
- Spare replacement on a small assembly cell that needs an NX1P2 with NPN outputs and cannot take the PNP NX1P2-9024DT1 variant
Buying Checklist
- Pick the NX1P2-9024DT for a 24 I/O NX1P2 compact PLC with NPN outputs and built-in EtherCAT + EtherNet/IP.
- Pick the NX1P2-1040DT instead when the cell needs 24 built-in I/O points and 6 PTP motion axes rather than 14 / 10 and 4 axes.
- Pick the NX102-1200 instead when the machine needs 8 synchronous servo axes and 32 local NX I/O units.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NX1P2-series compact PLC CPU |
| Model / SKU | NX1P2-9024DT |
| Power Supply | 24 VDC (20.4 to 28.8 VDC) |
| Built-in I/O | 14 DC inputs PNP/NPN, 10 NPN transistor outputs |
| Output Current | 300 mA per point / 2.4 A per common |
| Program / Variables | 1.5 MB program, 2 MB variables (not retained) |
| Task Cycle | 2 ms primary task |
| Motion Control | 4 PTP axes, 0 synchronous servo axes |
| Communication | EtherCAT master + EtherNet/IP (2 Ethernet), 1 option-board slot (NX1W-CIF01/CIF11/CIF12 or ADB21/DAB21V/MAB221) |
| Expansion | Up to 8 NX units local, up to 16 remote I/O nodes via EtherCAT |
| Dimensions (W x H x D) | 124 × 100 × 71 mm; 590 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX1P2-9024DT
What is the Omron NX1P2-9024DT used for?
It is a compact NX1P2 PLC CPU for small machines and indexing stations. The 14 DC inputs and 10 NPN outputs drive solenoid valves and indicator lamps, while the built-in EtherCAT master runs PTP motion on up to 4 axes.
NX1P2-9024DT vs NX1P2-9024DT1 - what is the difference?
DT is NPN sinking output, DT1 is PNP sourcing output. The I/O count, processor, and EtherCAT / EtherNet/IP ports are identical. Pick the variant that matches the field device wiring.
Does the NX1P2-9024DT have synchronous servo axes?
No. This model supports 0 synchronous servo axes and 4 PTP axes only. For 6 PTP axes and 0 synchronous, pick the NX1P2-1040DT; for up to 12 axes with 8 synchronous, the NX102-1200.
What option boards fit the NX1P2-9024DT?
The NX1W-CIF01 (RS-232C), NX1W-CIF11 (RS-422A/485), NX1W-CIF12 (isolated RS-422A/485), NX1W-ADB21 (analog input), NX1W-DAB21V (analog output), and NX1W-MAB221 (analog in + out) all fit the single option-board slot.
