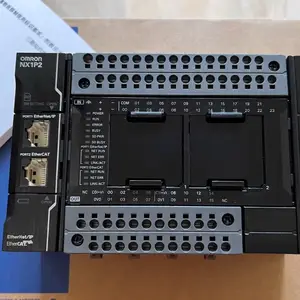

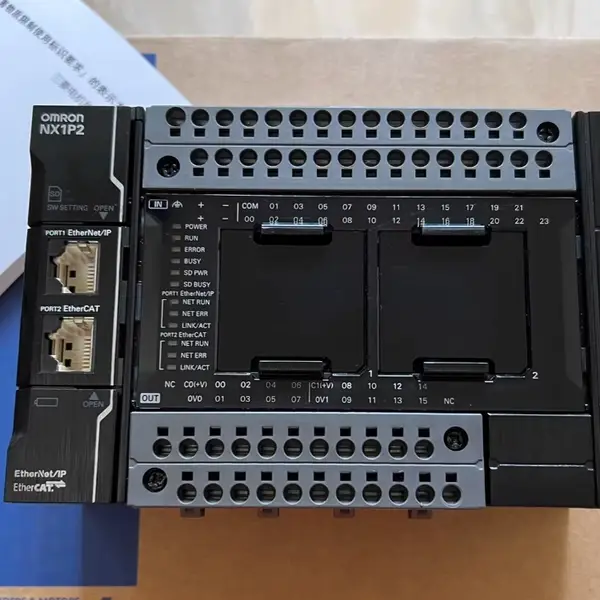

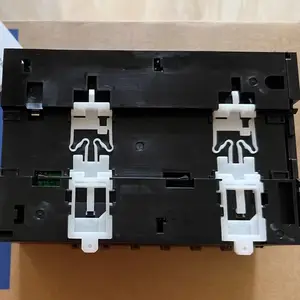

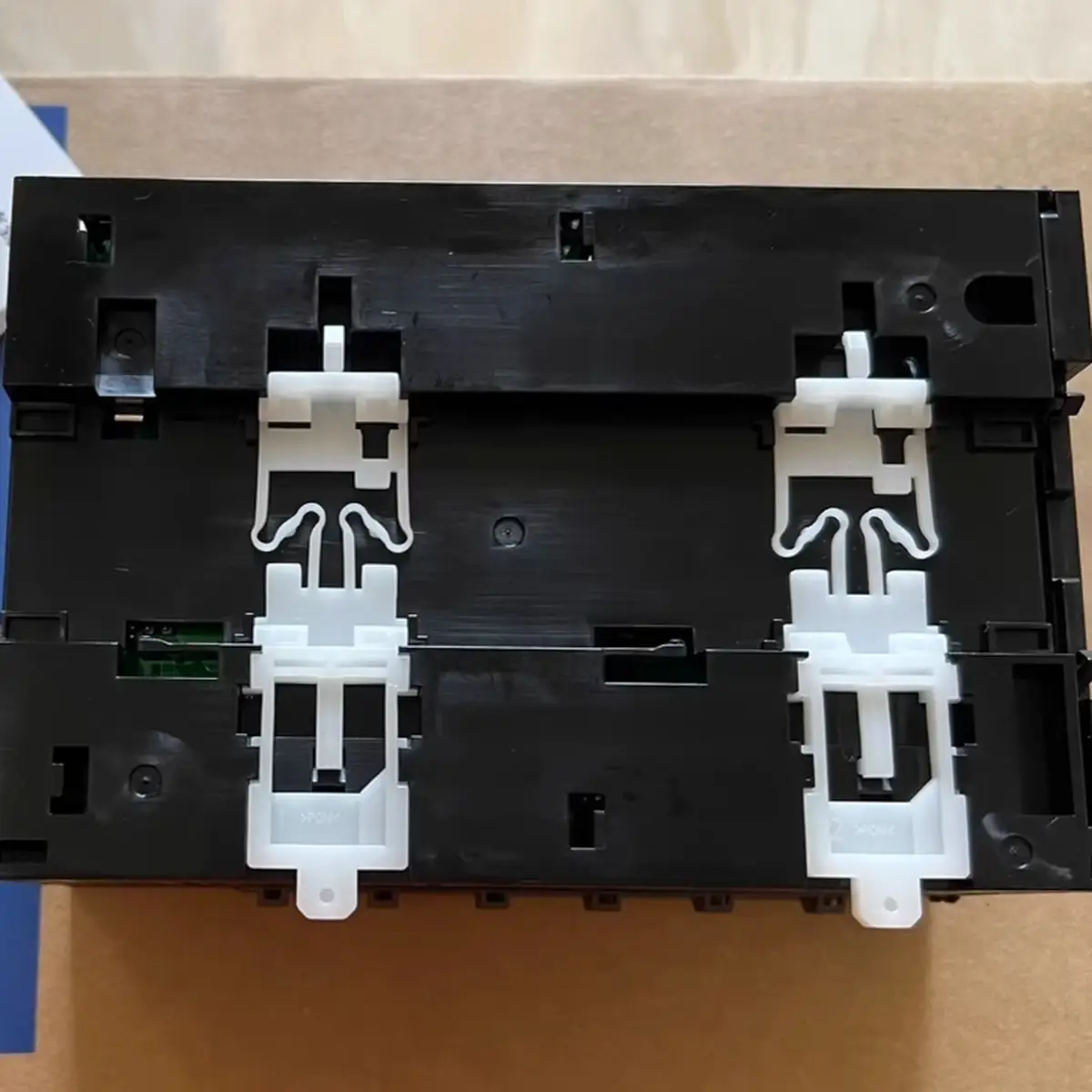

Omron NX1P2-1040DT1 — Compact PLC, 40 I/O, PNP Out
SKU: NX1P2-1040DT1USD 545.00
NX1P2 PLC, 40 I/O (24 in / 16 PNP out), 24 VDC, EtherCAT + EtherNet/IP. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX1P2-1040DT1 is the NX1P2-series compact machine automation controller with 40 built-in I/O and PNP outputs It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. It runs on 24 VDC and combines a 1.5 MB program memory / 2 MB variables controller with EtherCAT master and EtherNet/IP scanner (32 connections). Built-in I/O: 24 DC inputs (PNP or NPN selectable) and 16 PNP (sourcing) outputs at 0.5 A per point with load short-circuit protection. Up to 8 NX expansion units and 16 EtherCAT remote I/O nodes. Key specs: Built-in I/O 40 points: 24 DC inputs (PNP or NPN selectable) + 16 PNP (sourcing) transistor outputs; Output Rating 0.5 A per point, 1.5 A per common at 24 VDC; load short-circuit protection; Program / Variables 1.5 MB program memory; 2 MB variables memory; SD memory card slot; Motion / Cycle Primary task cycle 2 ms; 2 EtherCAT synchronous axes max; 4 PTP axes max; 6 total axes; Communication Ports 2 Ethernet (EtherCAT master + EtherNet/IP scanner, 32 connections); 0 USB; 2 serial option board.
Key Features
- NX1P2-series compact machine automation controller with 40 built-in digital I/O: 24 DC inputs (PNP/NPN selectable) plus 16 PNP (sourcing) outputs at 0.5 A per point
- 1.5 MB program memory, 2 MB variables, 2 ms primary task cycle, EtherCAT master (2 synchronous servo axes max) plus EtherNet/IP scanner (32 connections)
- 2 Ethernet ports (EtherCAT + EtherNet/IP), 2 serial option board slots for NX1W-CIF01 / CIF11 / CIF12, real-time clock with 10-day backup at 40 C
- Up to 8 NX expansion units, up to 16 EtherCAT remote I/O nodes, 24 VDC supply, 148 x 100 x 71 mm, 660 g
- SKU: NX1P2-1040DT1
- Series: NX1P2-series compact machine automation controller (NX1 CPU family)
- I/O: 40 points
Best-Fit Applications
- Four-axis packaging line where the NX1P2-1040DT1 runs 2 servo axes via EtherCAT and 2 PTP axes via pulse output to G5 servo drives
- Compact conveyor cell with 24 VDC PNP sensors on the built-in DC inputs and an NB7W-TW01B-V1 HMI on EtherNet/IP for operator control
- Spare replacement on a small machine where the original NX1P2-1040DT1 was lost and Sysmac Studio has the project backup on the SD card
Buying Checklist
- Pick the NX1P2-1040DT1 when the panel needs 40 built-in I/O (24 in / 16 PNP out) on a single compact PLC with EtherCAT + EtherNet/IP.
- Pick the NX1P2-1040DT instead when the loads need 16 NPN (sinking) outputs instead of 16 PNP (sourcing) outputs on the same 40-I/O body.
- Pick the NX1P2-1140DT instead when the machine needs 4 EtherCAT synchronous servo axes for higher-axis motion on the same 40-I/O PNP body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX1P2-series compact machine automation controller (NX1 CPU family) |
| Model / SKU | NX1P2-1040DT1 |
| Built-in I/O | 40 points: 24 DC inputs (PNP or NPN selectable) + 16 PNP (sourcing) transistor outputs |
| Output Rating | 0.5 A per point, 1.5 A per common at 24 VDC; load short-circuit protection |
| Program / Variables | 1.5 MB program memory; 2 MB variables memory; SD memory card slot |
| Motion / Cycle | Primary task cycle 2 ms; 2 EtherCAT synchronous axes max; 4 PTP axes max; 6 total axes |
| Communication Ports | 2 Ethernet (EtherCAT master + EtherNet/IP scanner, 32 connections); 0 USB; 2 serial option board slots (RS-232C / RS-422A / RS-485 via NX1W-CIF01 / CIF11 / CIF12) |
| Expansion | Up to 8 NX-series expansion units (digital I/O, analog I/O, position interface, load cell); up to 16 EtherCAT remote I/O nodes |
| Real-Time Clock | Built-in real-time clock; retention time 10 days at 40 C ambient (built-in capacitor) |
| Supply / Power | 24 VDC supply, operating range 20.4 to 28.8 VDC; supply via unit power terminals |

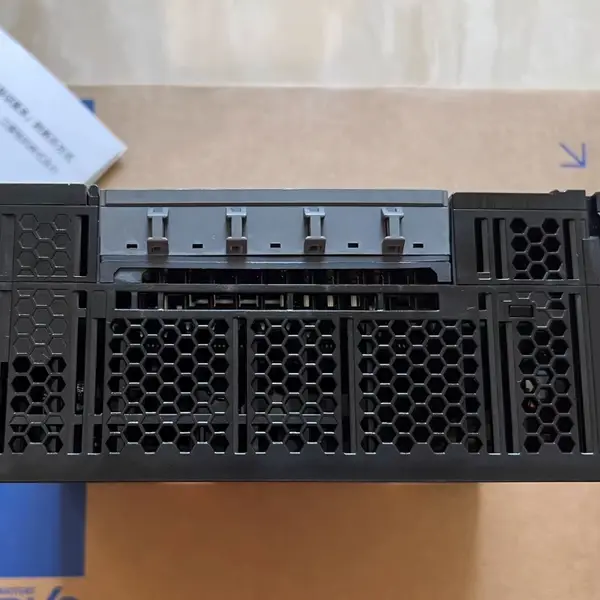

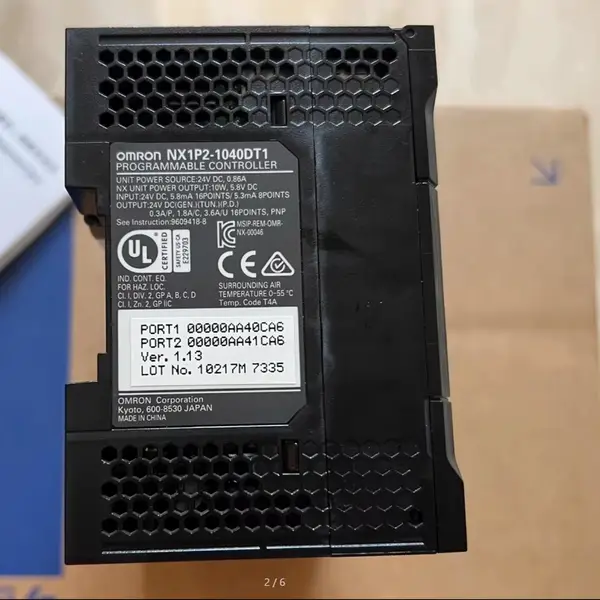

| Dimensions / Approvals | 148 (W) x 100 (H) x 71 (D) mm; 660 g; IP20; CE, cULus, RCM, KC, EAC; programming with Sysmac Studio Ver. 1.07 or higher |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX1P2-1040DT1
What is the Omron NX1P2-1040DT1 used for?
It is the NX1P2-series compact machine automation controller with 40 built-in I/O (24 DC inputs + 16 PNP outputs). Typical uses are four-axis packaging lines with 2 servo + 2 PTP axes, compact conveyor cells with 24 VDC PNP sensors and an NB7W HMI on EtherNet/IP, and spare replacement on a small machine where the Sysmac Studio backup is ready.
NX1P2-1040DT1 vs NX1P2-1040DT - what is the difference?
Both are NX1P2 compact controllers with 40 built-in I/O (24 in + 16 out). The 1040DT1 has PNP (sourcing) transistor outputs that switch the high side of a load and add load short-circuit protection. The 1040DT has NPN (sinking) outputs that switch the low side. Pick the 1040DT1 for PNP field devices or where load short-circuit protection is required; pick the 1040DT for NPN field devices.
How many motion axes does the NX1P2-1040DT1 control?
Up to 2 EtherCAT synchronous servo axes and 4 PTP axes (6 total). The 2 EtherCAT axes connect R88D-1SN02H-ECT or R88D-KN02H-ECT-Z servo drives and use Sysmac Studio motion control functions. The 4 PTP axes use pulse outputs from the built-in I/O or from an NX-PG0112 pulse output slice. For more axes (up to 8 servo) step up to NX102-1200.
Does the NX1P2-1040DT1 have USB and serial ports?
No USB. Two serial option board slots accept NX1W-CIF01 (RS-232C, 15 m max), NX1W-CIF11 (RS-422 / RS-485, 50 m max), or NX1W-CIF12 (isolated RS-422 / RS-485, 500 m max). Programming is over Ethernet from Sysmac Studio; the SD memory card slot holds the project backup.
