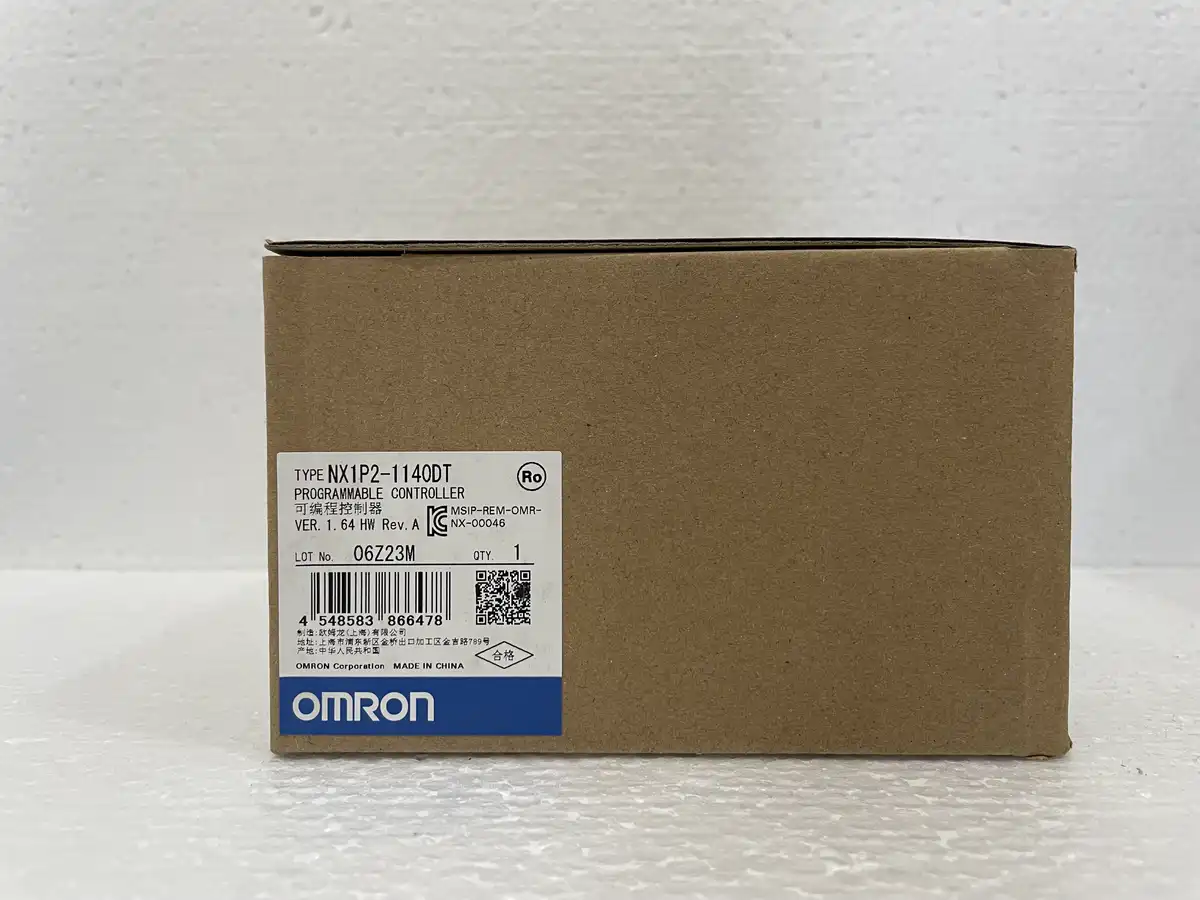

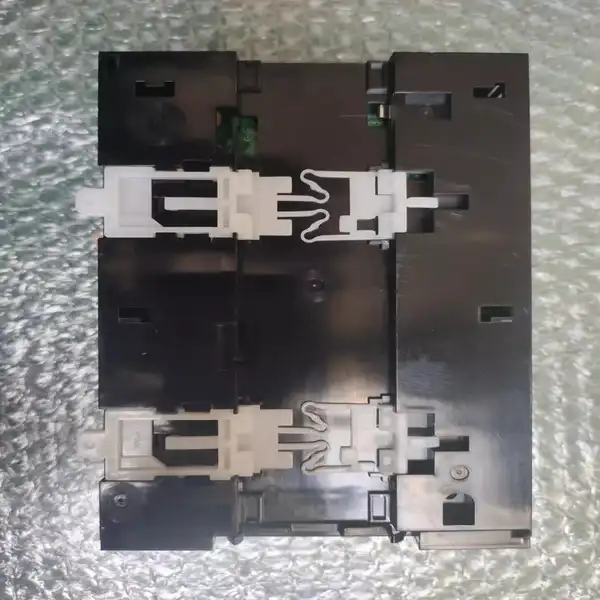

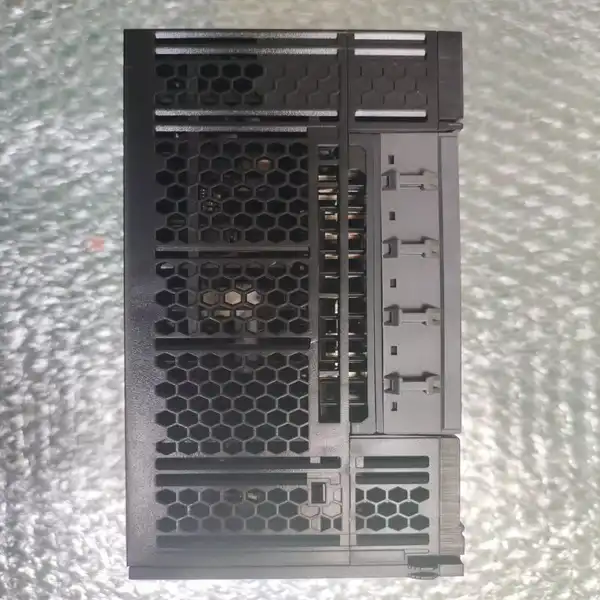

Omron NX1P2-1140DT — 40 I/O PLC, 4 Servo Axes, NPN
SKU: NX1P2-1140DTUSD 355.00
compact PLC, 40 I/O (24 in / 16 NPN out), EtherCAT 4 axes, EtherNet/IP. In stock, China.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX1P2-1140DT is the NX1P2-series compact machine automation controller with 40 built-in I/O and NPN transistor outputs It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. It runs on 24 VDC and combines a 1.5 MB program memory, 2 MB variables, and an EtherCAT master plus EtherNet/IP scanner on a 2 ms primary task cycle. Built-in I/O is 24 DC inputs (PNP or NPN selectable) plus 16 NPN (sinking) transistor outputs at 0.5 A per point. Up to 8 NX expansion units and 16 EtherCAT remote I/O nodes. Key specs: Built-in I/O 40 points: 24 DC inputs (PNP or NPN) + 16 NPN transistor outputs; Output Rating 0.5 A per point, 1.5 A per common at 24 VDC; no load short-circuit protection on NPN; Program / Variables 1.5 MB program memory; 2 MB variables; SD memory card slot; Motion / Cycle Primary task cycle 2 ms; 4 EtherCAT synchronous servo axes + 4 PTP axes (8 total); Communication Ports 2 Ethernet (EtherCAT master + EtherNet/IP scanner); 0 USB; 2 serial option board.
Key Features
- NX1P2-series compact controller with 40 built-in I/O: 24 DC inputs (PNP/NPN selectable) plus 16 NPN (sinking) outputs
- 1.5 MB program memory, 2 MB variables, 2 ms primary task cycle, EtherCAT master (4 synchronous axes) + EtherNet/IP scanner
- 8 total axes (4 EtherCAT servo + 4 PTP), 2 Ethernet ports, 2 serial option board slots, SD memory card slot
- 24 VDC supply, 8 NX expansion units, 16 EtherCAT remote I/O nodes, 148 x 100 x 71 mm, 650 g
- SKU: NX1P2-1140DT
- Series: NX1P2-series compact machine automation controller
- I/O: 40 points
Best-Fit Applications
- Eight-axis packaging line where the NX1P2-1140DT runs 4 servo axes via EtherCAT and 4 stepper axes via PTP pulse to a single NPN field bank
- Compact conveyor cell with 24 VDC NPN sensors on the built-in inputs and an NB7W-TW01B HMI on EtherNet/IP for operator control
- Spare replacement on a small NPN machine where Sysmac Studio has the project backup on the SD memory card and no firmware rewrite is needed
Buying Checklist
- Choose the NX1P2-1140DT1 instead when the field devices are PNP sourcing rather than NPN sinking on the same 40-I/O body.
- Choose the NX1P2-1040DT instead when only 2 servo axes are needed on the same NPN 40-I/O body, to save cost.
- Choose the NX102-1200 instead when the cabinet needs more than 8 motion axes or separate CPU and I/O rack mounting.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX1P2-series compact machine automation controller |
| Model / SKU | NX1P2-1140DT |
| Built-in I/O | 40 points: 24 DC inputs (PNP or NPN) + 16 NPN transistor outputs |
| Output Rating | 0.5 A per point, 1.5 A per common at 24 VDC; no load short-circuit protection on NPN |
| Program / Variables | 1.5 MB program memory; 2 MB variables; SD memory card slot |
| Motion / Cycle | Primary task cycle 2 ms; 4 EtherCAT synchronous servo axes + 4 PTP axes (8 total) |
| Communication Ports | 2 Ethernet (EtherCAT master + EtherNet/IP scanner); 0 USB; 2 serial option board slots for NX1W-CIF01 / CIF11 / CIF12 |
| Expansion | Up to 8 NX-series expansion units; up to 16 EtherCAT remote I/O nodes |
| Real-Time Clock | Built-in real-time clock; 10-day retention at 40 C ambient (built-in capacitor) |
| Supply / Power | 24 VDC supply, 20.4 to 28.8 VDC; 7.05 W unit power consumption; 4 A max terminal current |
| Dimensions / Approvals | 148 (W) x 100 (H) x 71 (D) mm; 650 g; IP20; CE, cULus, RCM, KC, EAC; Sysmac Studio Ver. 1.07+ |
FAQ for NX1P2-1140DT
What is the Omron NX1P2-1140DT used for?
It is the NX1P2-series compact machine automation controller with 40 built-in I/O (24 DC inputs + 16 NPN outputs). Typical uses are eight-axis packaging lines with 4 servo + 4 PTP axes, compact conveyor cells with 24 VDC NPN sensors on EtherNet/IP, and spare replacement where the Sysmac Studio backup is on the SD card.
NX1P2-1140DT vs NX1P2-1140DT1 - what is the difference?
Both are NX1P2 compact controllers with 40 built-in I/O. The 1140DT has NPN (sinking) outputs that switch the low side of a load. The 1140DT1 has PNP (sourcing) outputs that switch the high side and add load short-circuit protection. Choose the 1140DT for NPN field devices; choose the 1140DT1 for PNP field devices or short-circuit protection.
How many motion axes does the NX1P2-1140DT control?
Up to 4 EtherCAT synchronous servo axes and 4 PTP axes for an 8-axis total. The 4 EtherCAT axes connect R88D-1SN02H-ECT or R88D-KN02H-ECT-Z servo drives and use Sysmac Studio motion control functions. The 4 PTP axes use pulse outputs from an NX-PG0112 slice. For more axes step up to NX102-1200.
Does the NX1P2-1140DT have USB and serial ports?
No USB. Two serial option board slots accept NX1W-CIF01 (RS-232C, 15 m max), NX1W-CIF11 (RS-422 / RS-485, 50 m max), or NX1W-CIF12 (isolated RS-422 / RS-485, 500 m max). Programming is over Ethernet from Sysmac Studio; the SD memory card slot holds the project backup.
