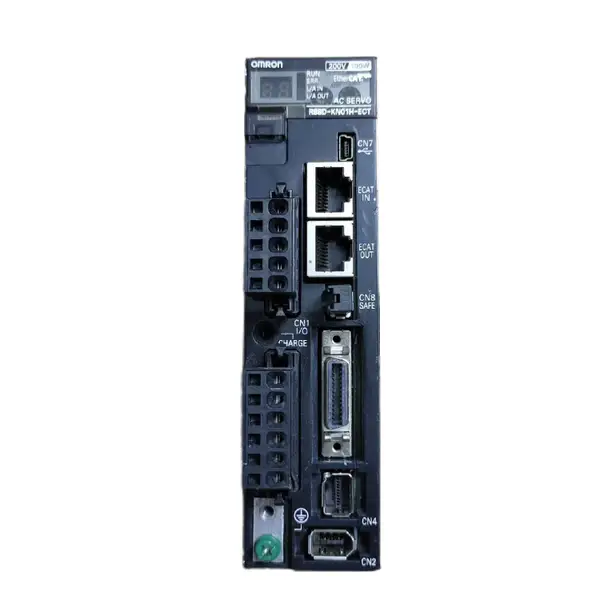

Omron R88D-KN01H-ECT-Z — front face of the 100 W G5 EtherCAT drive showing the Omron brand mark, the 200V 100W label, the RUN / ERR / L/A IN / L/A OUT / CHARGE LED column, the 7-segment status display, the AC SERVO label, the CN7 mini-USB port, the ECAT IN and ECAT OUT RJ45 sockets, the CN8 SAFE connector, the CN1 I/O connector, the CN4 connector, the CN2 encoder port and the green PE earth terminal

Omron R88D-KN01H-ECT-Z — G5 Drive, 100W, STO

SKU: R88D-KN01H-ECT-Z

USD 295.00

Accurax G5 EtherCAT servo drive, 100 W, 230 V single phase, STO. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron R88D-KN01H-ECT-Z is a 100 W member of the Accurax G5 servo drive family It is manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below.

The drive runs on 230 V single-phase (200-240 V per the body label, single or 3-phase). Rated current is 1.6 A on single-phase or 0.9 A on 3-phase.

For a 200 W step up, pick the R88D-KN02H-ECT-Z sibling. Key specs: Rated Output 100 W, 1.2 A rated output current; Drive Supply 200-240 VAC single-phase (230 V class), 50/60 Hz; Rated Input Current 1.6 A single-phase / 0.9 A 3-phase; Command Interface EtherCAT CoE slave; Encoder Support 20-bit incremental (or higher with absolute motor); Control Modes Position, speed, torque; Safety Functions Hardwired STO on CN8 SAFE (the -Z variant); Matching Motor R88M-K10030H-S2 (100 W 200 VAC G5 motor).

Key Features

  • Accurax G5 100 W EtherCAT servo drive, 230 V single-phase, 1.2 A rated output
  • EtherCAT CoE slave, 20-bit incremental encoder support, 2 kHz high-response loop
  • Built-in STO on the CN8 connector (hardwired, not network)
  • Position / speed / torque modes, auto-tuning, adaptive notch filters
  • SKU: R88D-KN01H-ECT-Z
  • Series: Omron Accurax G5-series servo drive (R88D-KN-ECT)

Best-Fit Applications

  • Small Z-axis lift on a packaging line where the 100 W covers the lift motor and the STO enables the safety circuit
  • EtherCAT axis on a multi-axis conveyor where the drive daisy-chains on the trunk and an NJ501 controller runs cyclic position control at 1 ms
  • Spare replacement for an R88D-KT02H-Z in an existing 200 V cabinet where the line wants to add a small auxiliary axis

Buying Checklist

  • Pick the R88D-KN01H-ECT-Z for a 100 W G5 EtherCAT drive on 230 V single phase with hardwired STO.
  • Pick the R88D-KN02H-ECT-Z instead when the line needs 200 W on the same 230 V class with STO.
  • Pick the R88D-1SN02H-ECT instead when the cabinet is moving to the 1S family and the motor needs a battery-free absolute encoder.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron Accurax G5-series servo drive (R88D-KN-ECT)
Model / SKU R88D-KN01H-ECT-Z
Rated Output 100 W, 1.2 A rated output current
Drive Supply 200-240 VAC single-phase (230 V class), 50/60 Hz
Rated Input Current 1.6 A single-phase / 0.9 A 3-phase
Command Interface EtherCAT CoE slave
Encoder Support 20-bit incremental (or higher with absolute motor)
Control Modes Position, speed, torque
Safety Functions Hardwired STO on CN8 SAFE (the -Z variant)
Matching Motor R88M-K10030H-S2 (100 W 200 VAC G5 motor)
Dimensions / Weight 40 (W) x 150 (H) x 202 (D) mm, 0.5 kg

FAQ for R88D-KN01H-ECT-Z

Does the R88D-KN01H-ECT-Z have SS1 and SLS safety?
No. SS1 and SLS safety functions are on the 1S family. The -Z suffix on this 100 W G5 drive adds hardwired Safe Torque Off (STO) via the CN8 SAFE connector only.
What motor pairs with the R88D-KN01H-ECT-Z?
Any 100 W G5 motor: the R88M-K10030H-S2 (100 W, incremental) or the R88M-K10030T-S2 (100 W, absolute). 50 W G5 motors like the R88M-K05030H-S2 also work but the drive runs well below rated current.
Can the R88D-KN01H-ECT-Z run on 3-phase 200 VAC?

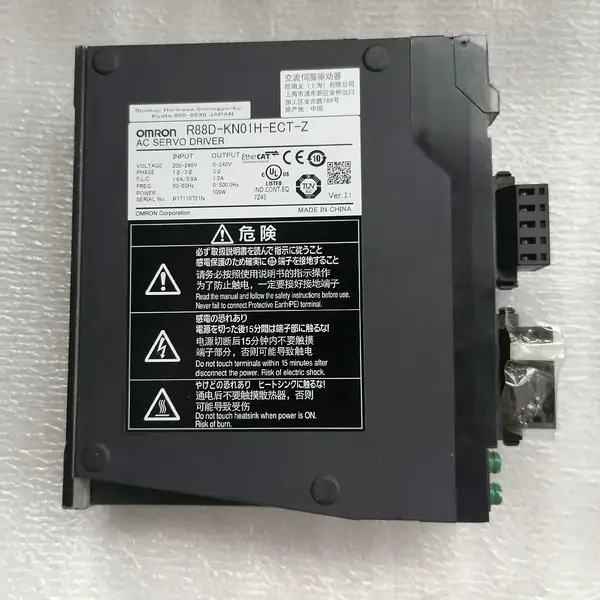

Yes. The body label lists 1-phase / 3-phase at 200-240 V. On 3-phase the rated input drops to 0.9 A vs 1.6 A on 1-phase.
What programming tool does the R88D-KN01H-ECT-Z use?
Sysmac Studio for parameter setup and monitoring, or the standalone CX-Drive tool for older projects. EtherCAT ESI files are available for download from industrial.omron.com.au.
