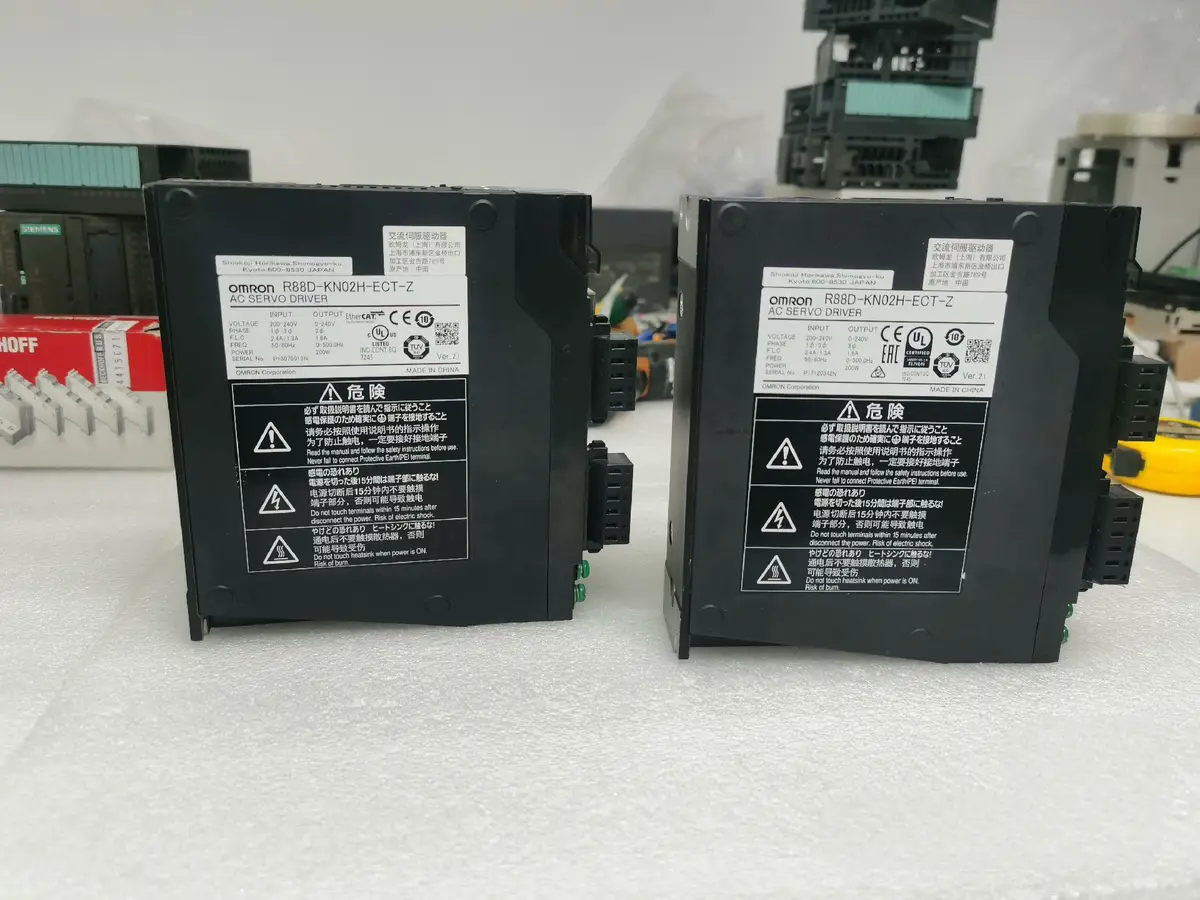

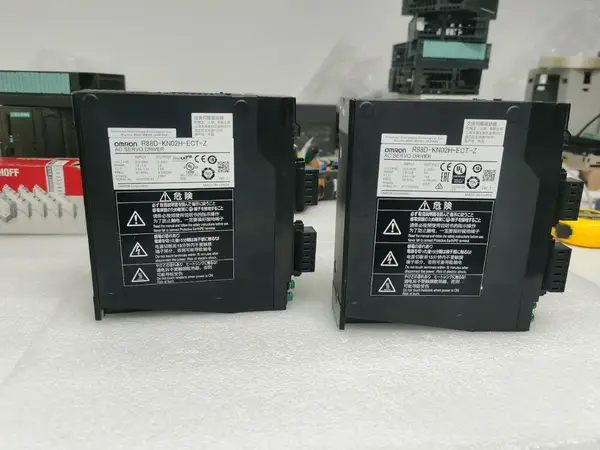

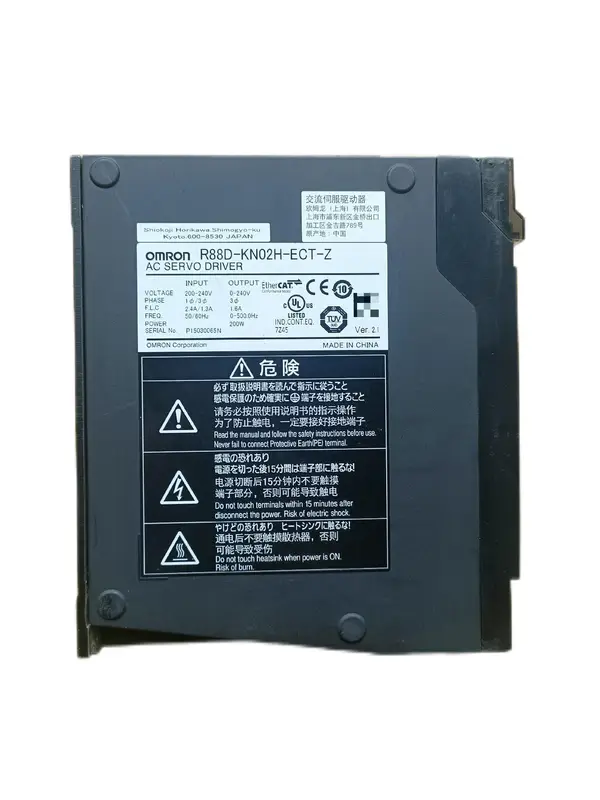

Omron R88D-KN02H-ECT-Z — 200 W EtherCAT Servo Drive
SKU: R88D-KN02H-ECT-ZUSD 295.00
is a 200 W Accurax G5 servo drive with EtherCAT control and hardwired STO safety, single/three-phase 200-240 VAC.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron R88D-KN02H-ECT-Z is a 200 W Accurax G5 series EtherCAT servo drive with built-in safety It is manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below. Specifications on this page were checked against Omron's Accurax servo datasheets.
It drives 200 W Accurax G5 servo motors (R88M-K20030@-S2) from a 200 to 240 VAC supply, either single-phase or three-phase. Continuous output is 1.6 A at 0 to 240 V three-phase.
Pair it with the R88M-K20030H-S2 (200 W, 3,000 rpm, 0.64 Nm) for a stock axis. Key specs: Rated Output 200 W (0.2 kW); Supply Voltage 200 to 240 VAC, single or three phase; Supply Current 2.4 A single-phase / 1.3 A three-phase; Output 0 to 240 V three-phase, 1.6 A continuous; Control Interface EtherCAT (CoE, CANopen over EtherCAT); Control Modes Position, speed, torque; Safety Functions STO (hardwired); SS1 and SLS via FSoE; Compatible Motors R88M-K series 200 W (R88M-K20030@-S2).
Key Features
- 200 W Accurax G5 servo drive for R88M-K series motors up to 200 W
- EtherCAT CoE control, 250 microsecond cycle, position/speed/torque
- Hardwired STO via dedicated terminal; SS1 and SLS over FSoE
- 200 to 240 VAC single or three phase in, 0 to 240 V three phase out
- SKU: R88D-KN02H-ECT-Z
- Series: Omron Accurax G5 servo drive
- Voltage: 200-240 VAC
Best-Fit Applications
- Indexing a small parts tray under an NJ501-1300 in a multi-axis pick-and-place cell, 250 microsecond cycle time
- Retrofitting a 200 W axis on a packaging machine that needs to drop STO straight into a safety relay cabinet
- Replacing a 1S-series drive on a labelling head where the customer wants to stay on the G5 generation and keep existing R88M-K motors
Buying Checklist
- Pick the R88D-KN02H-ECT-Z for a 200 W EtherCAT axis that needs hardwired STO today.
- Pick the R88D-KN01H-ECT-Z instead when the axis is 100 W and the same safety story fits.
- Pick the R88D-KN04H-ECT-Z instead when the axis is 400 W on the same EtherCAT bus.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron Accurax G5 servo drive |
| Model / SKU | R88D-KN02H-ECT-Z |
| Rated Output | 200 W (0.2 kW) |
| Supply Voltage | 200-240 VAC; at least one published listing specifies 3-phase only, while the G5 200 V class also exists in single-phase versions - confirm the phase requirement for this model before ordering |
| Supply Current | 2.4 A single-phase / 1.3 A three-phase |
| Output | 0 to 240 V three-phase, 1.6 A continuous |
| Control Interface | EtherCAT (CoE, CANopen over EtherCAT) |
| Control Modes | Position, speed, torque |
| Safety Functions | STO per IEC 61800-5-2; SS1 and SLS via FSoE are not confirmed for this model |
| Compatible Motors | R88M-K series 200 W (R88M-K20030@-S2) |
| Mounting / Protection | Panel mount, IP20, 40 x 150 x 132 mm, 0.8 kg |
FAQ for R88D-KN02H-ECT-Z
What motors does the R88D-KN02H-ECT-Z work with?
The 200 W Accurax G5 servo motors in the R88M-K family -- the R88M-K20030@-S2 variants with 3,000 rpm, 0.64 Nm and your choice of incremental or absolute encoder, with or without a holding brake.
What does the -Z suffix mean on R88D-KN02H-ECT-Z?
It adds Omron's hardwired-safety (STO) function on a dedicated terminal block, with SS1 and SLS available over EtherCAT FSoE. The non-Z model is EtherCAT-only. Pick -Z when the safety circuit needs a wired connection to a safety relay or controller.
Does the R88D-KN02H-ECT-Z accept single-phase 200 VAC?
Yes. The input is 200 to 240 VAC, single or three phase -- 2.4 A on single phase, 1.3 A on three phase. In a small cabinet a single-phase feed is fine for a 200 W axis.
How is the R88D-KN02H-ECT-Z set up?
In Sysmac Studio on a PC connected to the NJ/NX controller that hosts the EtherCAT master. Tuning uses the same auto-tuning routine as the rest of the G5 family. The EtherCAT ESI file is in the G5 datasheet bundle on Omron's site.
