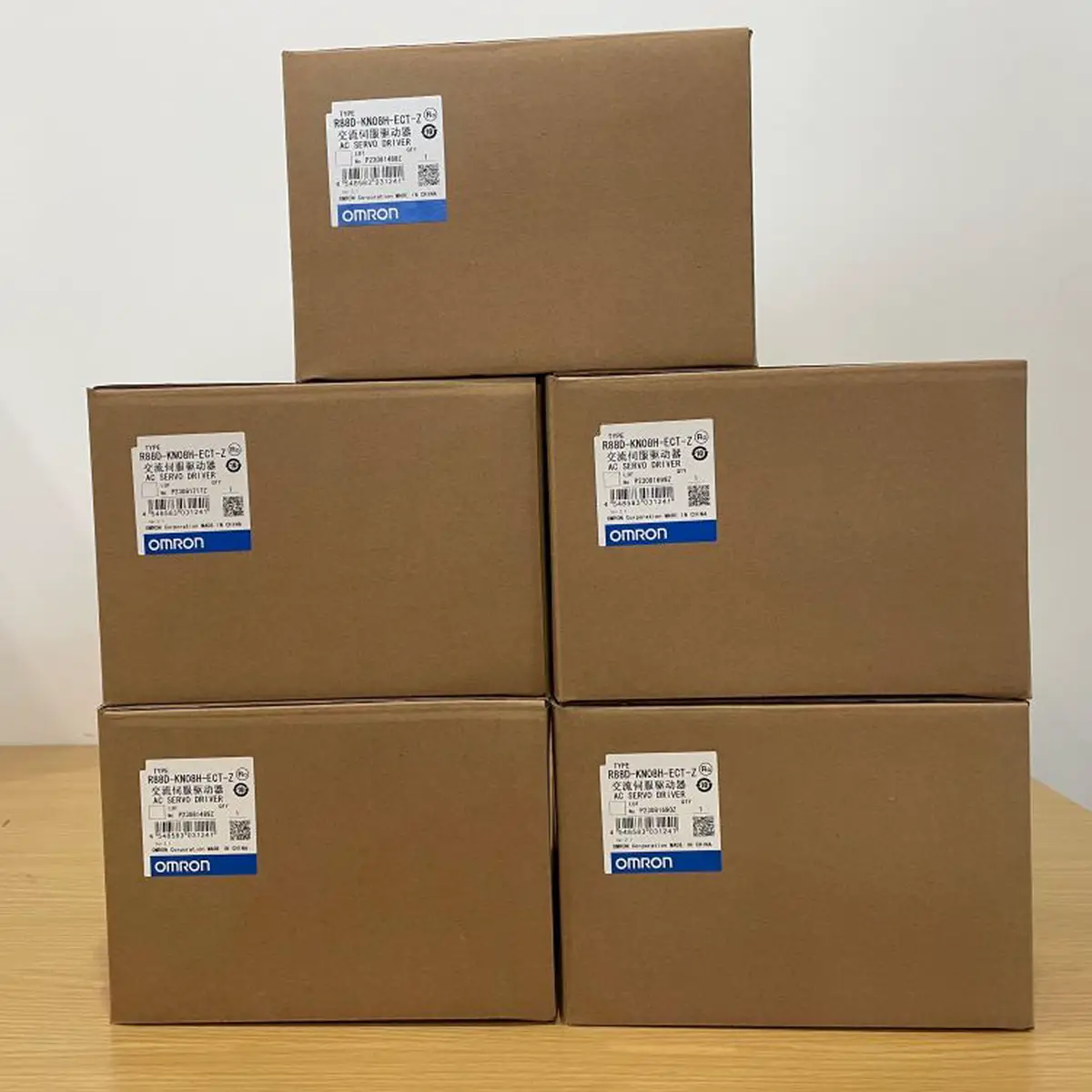

Omron R88D-KN08H-ECT-Z — Accurax G5 EtherCAT Drive
SKU: R88D-KN08H-ECT-ZUSD 295.00
Accurax G5 200 V single-phase EtherCAT servo drive, 750 W output, built-in STO. 200-240 VAC, 4.1 A, pairs with R88M-K75030 T/H-S2 motors.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron R88D-KN08H-ECT-Z is a 200 V single-phase Accurax G5-series AC servo drive with built-in EtherCAT communications, rated at 750 W output. It is manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below.
65 x 150 x 242 mm panel-mount chassis at ~1.6 kg (3.6 lbs) Position, speed, or torque control per axis with 2 kHz high-response frequency
Position, speed, or torque control per axis with 2 kHz high-response frequency 65 x 150 x 242 mm panel-mount chassis at ~1.6 kg (3.6 lbs)
Mount in a cabinet with the R88A-FIK107-SE RFI filter for CE EMC compliance.
Key Features
- Position, speed, or torque control per axis with 2 kHz high-response frequency
- 65 x 150 x 242 mm panel-mount chassis at ~1.6 kg (3.6 lbs)
- Add R88A-FIK107-SE RFI filter (sold separately) for CE EMC compliance at 230 VAC
- Accurax G5-series 200 V single-phase EtherCAT AC servo drive (NOT SmartStep 2 -- SmartStep 2 is the R7D-BP[] family)
- SKU: R88D-KN08H-ECT-Z
- Series: Accurax G5 EtherCAT AC servo drive
Best-Fit Applications
- Pair with the R88M-K75030T-S2 absolute motor for battery-free multi-turn position retention
- Indexing table drive where the G5 high-response tuning gives smooth 90-degree moves
- Pick-and-place axis on a packaging machine driven from an NJ / NX EtherCAT motion master
Buying Checklist
- Pick the R88D-KN02H-ECT-Z or R88D-KN04H-ECT-Z instead for 200 W / 400 W axes in the same G5 family
- Pick the R88D-KN10H-ECT-Z instead for 1 kW 200 V single-phase (the next step up in the same family)
- Pick the R88D-KN08H-ECT-Z for a 200 V single-phase 750 W EtherCAT servo axis on an NJ / NX cabinet
Technical Specifications
| Series | Accurax G5 EtherCAT AC servo drive |
|---|---|
| Model | R88D-KN08H-ECT-Z (the -Z suffix bundles the connector kit) |
| Rated Output | 750 W (0.75 kW) |
| Main Supply | 200-240 VAC single-phase, 50/60 Hz, 4.1 A continuous |
| Output | 3-phase 0-240 V variable-frequency, 4.1 A rms continuous |
| Communication | EtherCAT (CoE) slave, with USB mini-B console |
| Control Modes | Position, speed, torque control |
| Response Frequency | 2 kHz high-response |
| Safety Functions | Built-in STO only (Safe Torque Off); SS1 / SLS on -L variants |
| Compatible Motor | R88M-K75030H-S2 incremental / R88M-K75030T-S2 absolute / H-BS2 / T-BS2 with brake |
| Dimensions | 65 x 150 x 242 mm panel-mount chassis, ~1.6 kg |
| Configuration | Sysmac Studio via USB or EtherCAT; R88A-FIK107-SE RFI filter for CE EMC |
FAQ for R88D-KN08H-ECT-Z
What is the difference between R88D-KN08H-ECT-Z and R88D-1SN08H-ECT?
The R88D-KN08H-ECT-Z is the 750 W Accurax G5 drive; the R88D-1SN08H-ECT is the 750 W 1S-series drive (the G5 successor). Both are 200 V single-phase EtherCAT drives with the same rated output, but the 1S-series runs a newer tuning suite (Sysmac Studio with 1S-series device profiles) and has a built-in 23-bit battery-less absolute encoder interface. Pick the G5 (KN08H) for like-for-like spare replacement on an existing Accurax G5 cabinet; pick the 1S (1SN08H) for new builds.
Does the R88D-KN08H-ECT-Z have SS1 or SLS safety?
No. The bare KN[]-ECT series carries STO (Safe Torque Off) only via dedicated safety input wiring. For SS1 (Safe Stop 1), SLS (Safely-Limited Speed), or other advanced safety functions, step up to the -L variant (R88D-KN08H-ECT-L) which adds the safety expansion card. For FSoE distributed safety over EtherCAT, pick the 1S-series -S2 variant (R88D-1SN08H-ECT-S2).
What motor does the R88D-KN08H-ECT-Z drive?
Omron R88M-K75030H-S2 (750 W, 3,000 rpm, incremental encoder, 2.4 Nm) is the standard pick. For absolute-encoder multi-turn position retention, pick the R88M-K75030T-S2 (same motor, absolute encoder (T suffix)). For a brake axis, pick the H-BS2 or T-BS2 variants (the BS2 suffix adds a 24 VDC brake). All four R88M-K75030[] motors are on the Accurax G5 lineup at the same 750 W axis class.
Does the R88D-KN08H-ECT-Z include the connector kit?
Yes -- the -Z suffix is a logistics code meaning the drive ships with the connector kit (M4 ring-lug power terminals, 24-pin I/O connector, encoder connector). The bare R88D-KN08H-ECT (no -Z) is the same drive without the kit and is intended for bulk orders where the panels already have the connectors. Add the R88A-FIK107-SE RFI filter for CE EMC compliance at 230 VAC.
