Part of the Omron Servo series — see the full model table, lifecycle status and replacement parts.

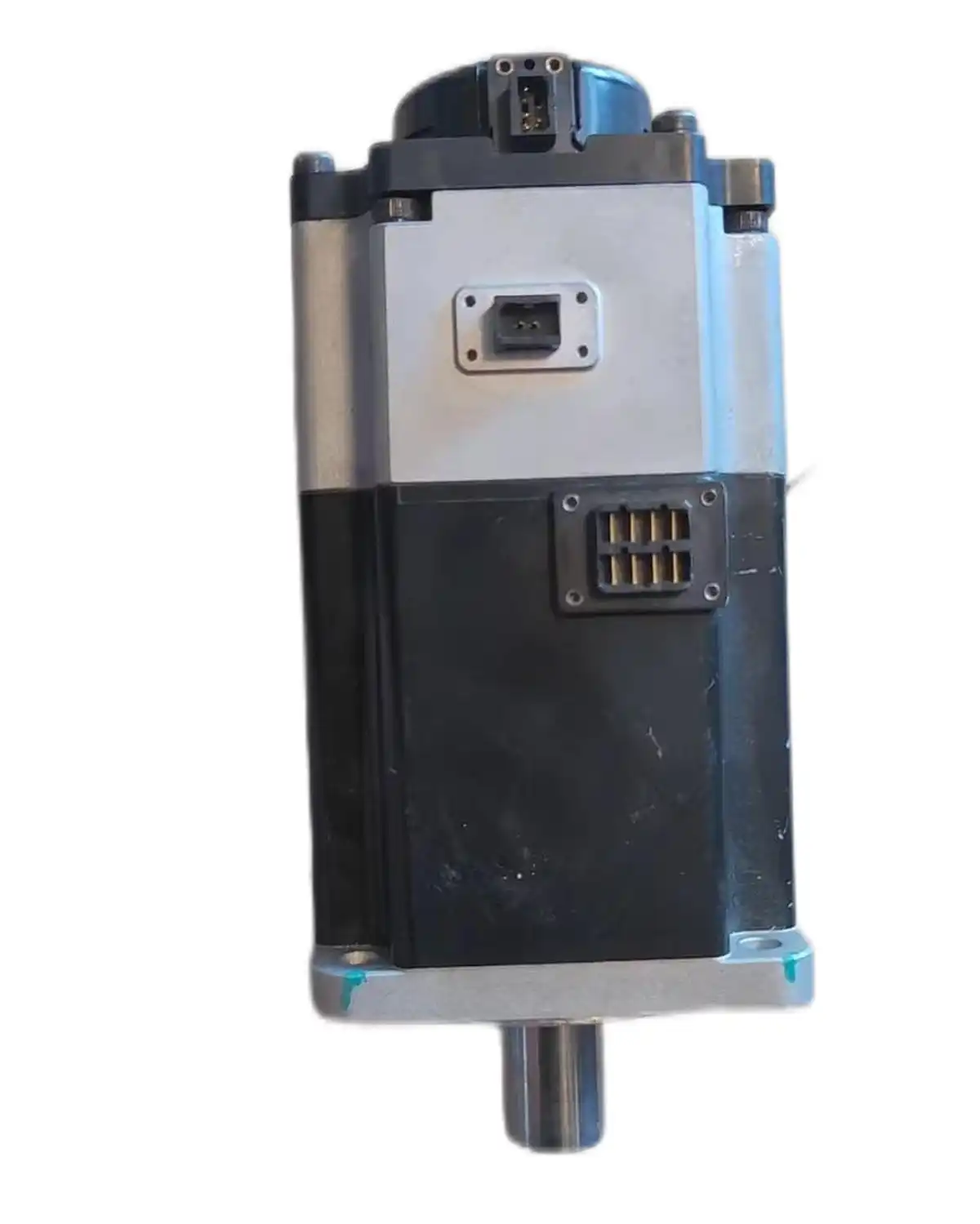

Omron R88M-1M75030T-BS2 — AC Servo Motor 750W
SKU: R88M-1M75030T-BS2USD 225.00
is a 1S series AC servo motor with 750W power, 3000rpm, 24VDC brake for vertical axis applications in industrial automation.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron R88M-1M75030T-BS2 is engineered for machine axes requiring accurate positioning and stable torque delivery across repeated cycles. It is manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below. Specifications on this page were checked against Omron's Accurax servo datasheets.
Part of Omron 1S motion platform ecosystem 750W servo motor class for precision machine axes Part of Omron 1S motion platform ecosystem 750W servo motor class for precision machine axes
Part of Omron 1S motion platform ecosystem 750W servo motor class for precision machine axes
This motor is used in packaging, assembly, and handling applications where motion repeatability and cycle-time consistency directly impact production performance.
Key Features
- Part of Omron 1S motion platform ecosystem
- 750W servo motor class for precision machine axes
- Suitable for high-cycle industrial automation environments
- Reliable performance for repeatable machine throughput
- SKU: R88M-1M75030T-BS2
- Series: 1S Series
- Voltage: 200V
Best-Fit Applications
- Controlling pick-and-place linear motion
- Powering rotary positioning tables
- Supporting synchronized transfer mechanisms
Buying Checklist
- Improves positioning repeatability and product quality
- Strong integration with Omron 1S drive ecosystem
- Good balance of performance and application flexibility
Technical Specifications
| Model | R88M-1M75030T-BS2 |
|---|---|
| Series | 1S Series |
| Rated Output | 750W |
| Rated Speed | 3000rpm |
| Rated Voltage | 200V AC |
| Rated Torque | 2.4 Nm |
| Shaft Type | Smooth shaft |
| Brake | 24VDC electromagnetic brake |
| Shaft Diameter | 19mm |
| Encoder | 23-bit battery-less absolute multi-turn |
| Frame Size | 80mm |
| Mass | Approx. 2.3kg |
| Protection | IP65 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for R88M-1M75030T-BS2
Does this motor have a brake?
Yes, 24VDC electromagnetic brake for vertical axis holding.
What is the brake voltage?
24VDC ±10% for brake release.
What drives are compatible?
R88D-1SN08H-ECT or higher rated drives.
Can this be used vertically?
Yes, the brake enables vertical axis applications.
