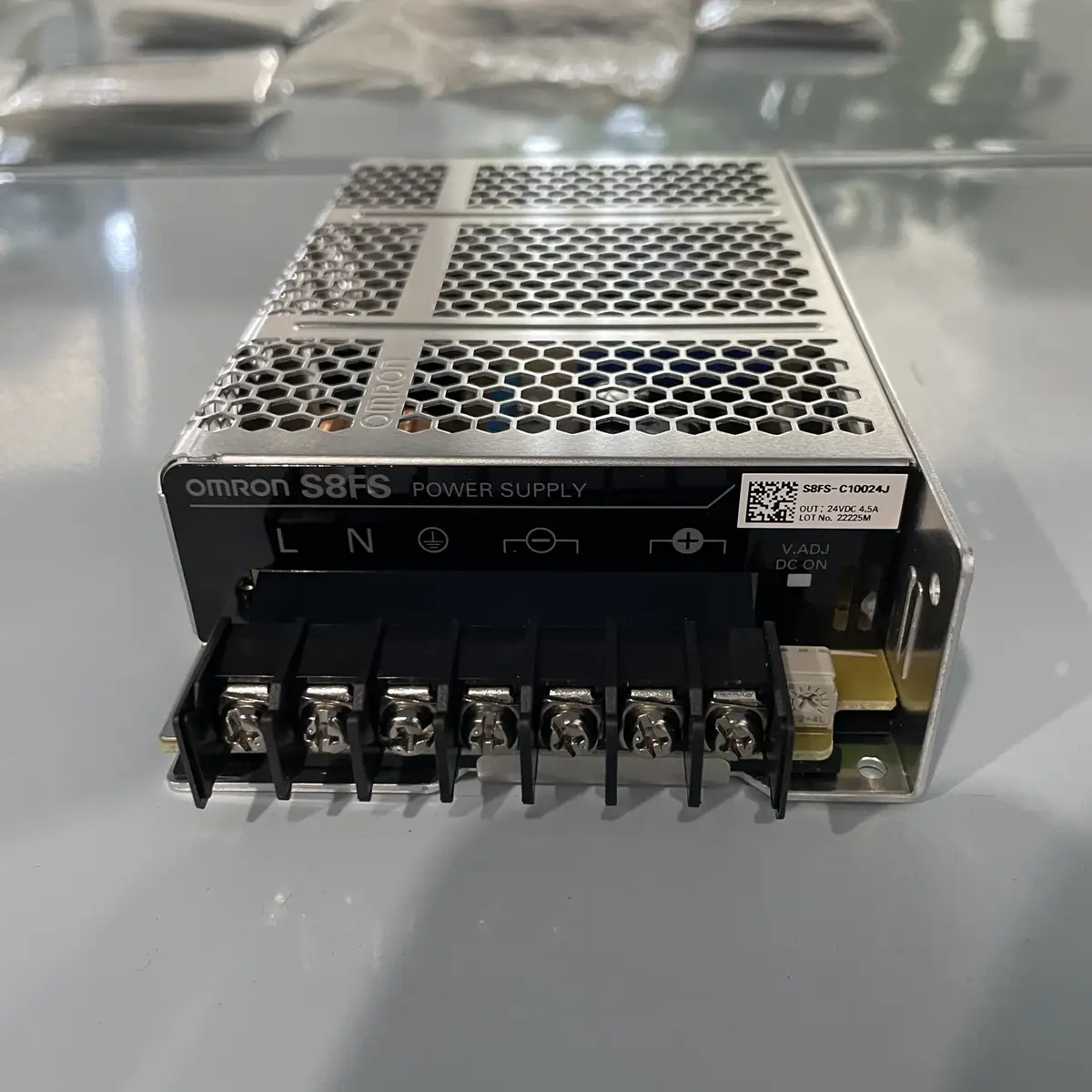

Omron S8FS-C10024J — front face of the enclosed aluminium housing showing the brand label, the 24 VDC output rating, and the DC OK green LED

Omron S8FS-C10024J — 100 W 24 VDC PSU, Free-Voltage AC In

SKU: S8FS-C10024J

USD 11.00

S8FS-C 100 W enclosed switching power supply, 24 VDC / 4.5 A output, AC 100-240 V free-voltage input, vertical terminals, 3-year warranty.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron S8FS-C10024J is a 100 W enclosed switching power supply from the S8FS-C series, the cost-effective general-purpose tier of Omron's industrial PSU family. It outputs a regulated 24 VDC at 4.5 A — enough for one or two compact PLCs, a small HMI, and a string of 24 V sensor inputs. The "J" suffix is the free-voltage AC input version: AC 100-240 V (allowable AC 85-264 V), 50/60 Hz, plus DC 120-370 V. The plain S8FS-C10024 (no J) is the switch-selectable 100-120 V / 200-240 V version with a different DC input range.

Where it fits in the S8 family

S8FS is the cost-effective tier (three-year warranty, FA-panels fit). S8VK-C is the economy tier (similar warranty but tighter feature set). S8VK-G is the value tier with peak 120 % boost. S8VK-S is the premium tier with Push-In Plus terminals and a low-voltage alarm output. Pick S8FS when the spec says "100 W continuous, no boost, no alarm, 3-year warranty" — that is the headline pitch. Pick S8VK-S06024 instead if you want a slim 60 W with a low-voltage alert; pick S8VS-12024A if you need a maintenance display.

What makes the J different

The "J" suffix is on the model code, not a separate family. It means the unit accepts free-voltage AC 100-240 V without a slide switch. The plain S8FS-C10024 has a slide-switch on the side that the user must set to 100-120 V or 200-240 V before applying AC; mis-setting the switch is a common burn-out cause. For new machines exported worldwide or sold into cabinets fed from any AC mains, choose the J version.

Before ordering

Size the load at 80 % of rated 4.5 A to leave headroom on inductive inrush. The vertical terminal block accepts 22-14 AWG wires; torque to 0.74 N·m. Allow for the operating temperature rating (-20 to 60 °C with no fan; the 150 W / 200 W / 350 W / 600 W siblings carry an internal fan). Add a Y-shaped surge protector on the AC input side for any cabinet near a variable-frequency drive. The unit mounts to a backplate or DIN-rail with the included bracket.

Key Features

  • S8FS-C series enclosed industrial switching power supply
  • 100 W continuous output, 24 VDC regulated at 4.5 A
  • Free-voltage AC 100-240 V input (AC 85-264 V allowable), 50/60 Hz
  • Also accepts DC 120-370 V input
  • Vertical terminal block (J suffix = no AC slide-switch)
  • 105 °C-rated Japanese electrolytic capacitors, 3-year warranty
  • Resists AC 300 V abnormal input, 10-90 kHz inverter noise, and surge per IEC 61000-4
  • Suitable for altitudes up to 3,000 m
  • Operating temperature -20 to 60 °C, no fan required
  • UL 508 (Listing), CE, CCC (15-150 W models), EN 61204-3 Class A EMC
  • DIN-rail or panel mounting with included bracket
  • SKU: S8FS-C10024J
  • Series: S8FS-C enclosed cost-effective industrial PSU
  • Voltage: 24 VDC
  • I/O: 100 I/O

Best-Fit Applications

  • Power for one CP1L or CP2E PLC plus a 5-7 inch HMI in a small machine cabinet
  • 24 VDC supply for E3FA / E2E sensor I/O strings feeding a single CJ1 / CP1E CPU
  • General-purpose 24 VDC bus for control panels exporting worldwide on free-voltage mains
  • Back-up retrofit of older S8JC-Z10024C supplies with the same 100 W footprint
  • Spare PSU in a panelbuilder's shelf to cover most 24 VDC needs without skus

Buying Checklist

  • Pick the plain S8FS-C10024 (no J) only if the cabinet is fixed at 100-120 or 200-240 VAC and you want a slide-switch selector.
  • Pick S8VK-G12024 instead if you want 120 W with a 150 % peak boost for motor-start inrush.
  • Pick S8VK-S06024 instead if a slim 60 W unit fits the cabinet better.
  • Pick S8VS-12024A if you need a maintenance display and over-voltage alarm output.
  • Pick S8FS-C15024 if you routinely drive 5 A or more — the 100 W is 4.5 A, the 150 W is 6.5 A.
  • Size the load to 80 % of 4.5 A (≈3.6 A) to leave headroom for cold-start inrush on 24 V solenoids.

Technical Specifications

Series S8FS-C enclosed cost-effective industrial PSU
Output Power 100 W continuous
Output Voltage / Current 24 VDC / 4.5 A
Input Voltage (AC) AC 100-240 V free-voltage (AC 85-264 V allowable), 50/60 Hz
Input Voltage (DC) DC 120-370 V
Voltage Adjustment Range ±10 % via front V.ADJ potentiometer
Cooling Natural convection, no internal fan
Operating Temperature -20 to 60 °C at rated load
Terminal Style Vertical terminal block, screw-clamp
Mounting Backplate or DIN-rail (with included bracket)
Compliance UL 508 Listed, CE (EN 61204-3 Class A), CCC

FAQ for S8FS-C10024J

What is the difference between S8FS-C10024J and S8FS-C10024?
They are the same 100 W / 24 VDC / 4.5 A supply, but the AC input stage differs. The S8FS-C10024 (no J) has a slide switch that you must set to either 100-120 VAC or 200-240 VAC before applying power. The S8FS-C10024J (with J) accepts free-voltage AC 100-240 V directly with no selector. For new machines built in countries with mixed mains, the J version avoids the common "forgot to flip the switch" burn-out.
Can the S8FS-C10024J take 110 VDC input from a battery?
Yes, the J suffix accepts DC 120-370 V, which covers common DC battery and DC bus voltages (125 VDC nominal battery systems and 220-340 VDC in solar / DC microgrids). The plain S8FS-C10024 (no J) has a wider DC range of 248-373 V and would not handle 125 VDC battery systems.
Does the S8FS-C10024J need a fan or special cooling clearance?
No. The 100 W rating is met with natural convection across the aluminium housing, no internal fan. Allow 25 mm clearance above and below for airflow, and keep the operating temperature below 60 °C. For ambient above 60 °C or for continuous loads over 4 A, the 150 W S8FS-C15024 with a larger heat-sink area is a safer choice.
