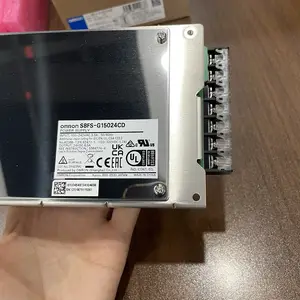

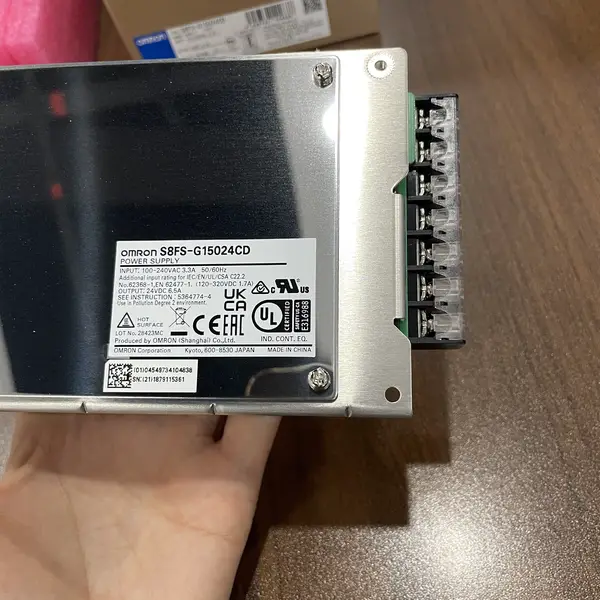

Omron S8FS-G15024CD — 150 W 24 VDC DIN-Rail PSU
SKU: S8FS-G15024CDUSD 59.00
150 W DIN-rail supply for 24 VDC panels, delivering 6.5 A through front-facing screw terminals.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

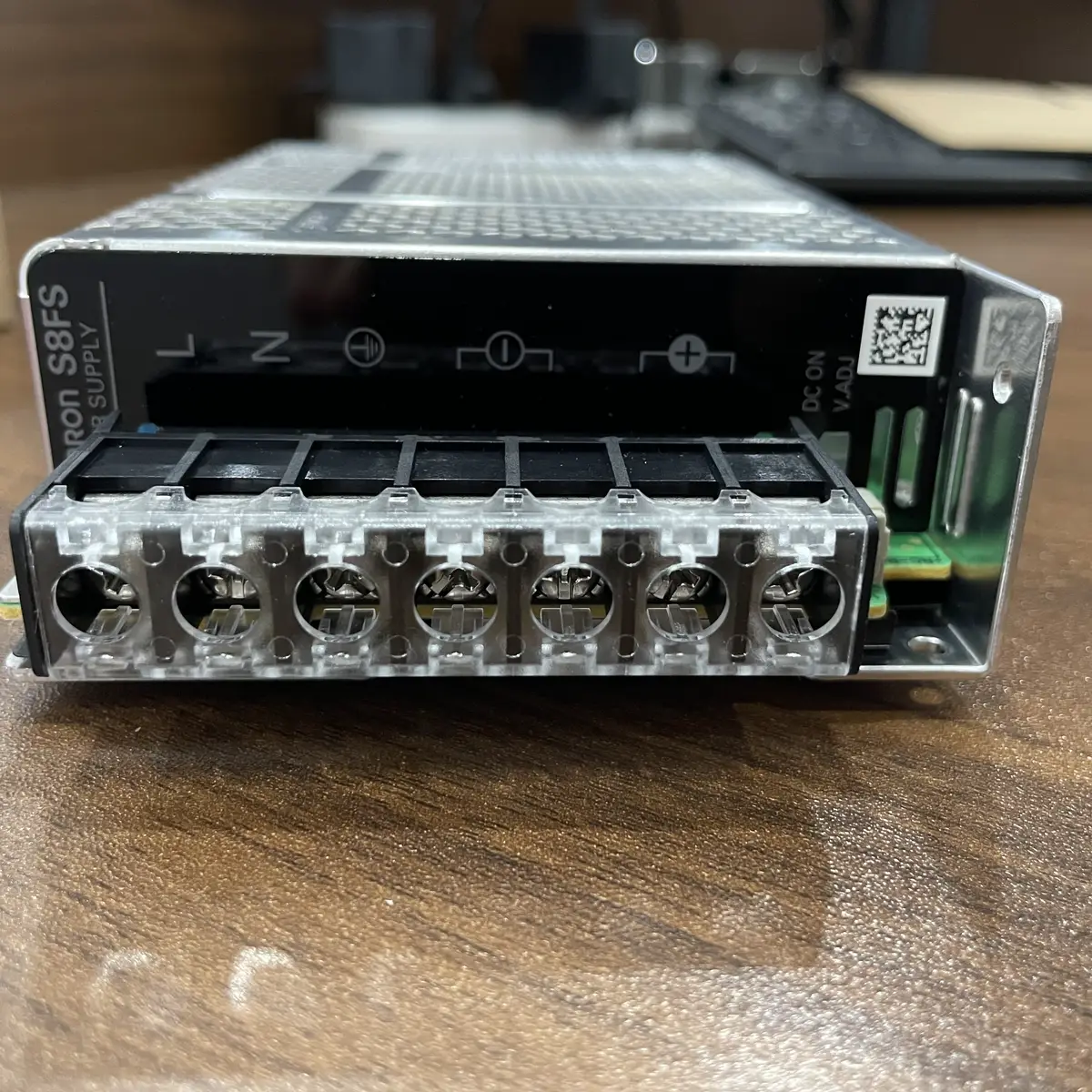

The Omron S8FS-G15024CD supplies 24 VDC to a medium control panel from a single-phase AC feed or a supported DC input. It is the 150 W, 6.5 A DIN-rail model in the S8FS-G family. The covered metal housing is fanless, and all screw terminals face the service side. Two positive and two negative terminals make it easier to land more than one load group without stacking wires under a single screw. A front terminal cover helps prevent loose screws from dropping out.
Where the extra capacity fits
This model fits PLC and remote-I/O cabinets with several sensors, relay coils, interface devices, or 24 VDC valve controls. It offers a clear step up from the 50 W version while keeping the same simple local controls: a green DC ON light and an output adjuster. There is no display, alarm output, or communication port.
One output with convenient terminals
The four output screws do not create separate power channels. They share one 24 VDC output and one combined current rating. If different load groups need separate protection, provide it elsewhere in the panel. The terminals mainly make the outgoing wiring neater and easier to service.
Before ordering
Add the normal current of every connected device and check short start-up demand before choosing the supply. Confirm that the cabinet has enough rail depth for the long case and mounting clip. Leave open space around the vented cover and check the reduced output limit if the enclosure runs hot. This model cannot be paralleled to increase current. For backup power, use the arrangement shown in the datasheet and size each supply to carry the full load alone.
Key Features
- 150 W supply with 24 VDC, 6.5 A output
- 100–240 VAC rated input with allowed DC input
- Covered, fanless metal housing
- Two positive and two negative screw terminals
- DIN-rail mounting
- Green DC ON light and output adjustment
- Operation up to 70 °C with load reduction
- SKU: S8FS-G15024CD
- Series: S8FS-G15024CD
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Main 24 VDC supply for medium PLC and remote-I/O cabinets
- Sensor, relay, and valve control power on packaging machines
- Control power for assembly cells with several field devices
- Replacement supply in DIN-rail panels with front-access wiring
Buying Checklist
- Confirm the combined continuous load stays within 6.5 A.
- Check start-up demand for relays, valves, or other switched loads.
- Verify the cabinet feed is within the listed AC or DC range.
- Check whether the shared output terminals suit the planned load groups.
- Choose S8FS-G15024C when the supply must mount directly to a panel.
- Allow for rail depth, airflow, and any temperature or input derating.
Technical Specifications
| Power Rating | 150 W |
|---|---|
| Output Voltage | 24 VDC |
| Output Current | 6.5 A |
| Input Voltage | 100–240 VAC rated; 85–264 VAC or 80–370 VDC allowable |
| Construction | Covered, fanless |
| Mounting | DIN rail |
| Connection | Screw terminals; two +V and two -V |
| Output Indicator | DC ON, green LED |
| Output Adjustment | -10% to +15% |
| Operating Temperature | -20 to 70 °C; derating applies |
| Overall Dimensions (W × H × D) | 97 × 39.2 × 177.7 mm |
Resources & Downloads
FAQ for S8FS-G15024CD
Does the S8FS-G15024CD have two independent 24 VDC outputs?
No. The two positive and two negative screws belong to one 24 VDC output; they are convenient connection points, not separate channels. All connected loads share the 6.5 A rating. Add separate branch protection elsewhere if the panel design requires individual load groups to be isolated.
Does the CD suffix on S8FS-G15024CD mean DIN-rail mounting?
Yes. The CD model has a covered housing, a DIN-rail clip, and screw terminals. S8FS-G15024C has the same output rating but mounts directly to a panel. Because the 150 W case is long, confirm both the mounting style and available depth before ordering a replacement.
Can two S8FS-G15024CD supplies be connected in parallel?
No, not to increase available current. Omron marks parallel operation as unsupported on this model. A backup setup needs matching supplies and the extra parts shown in the datasheet, and either unit must carry the full connected load alone during a failure.
