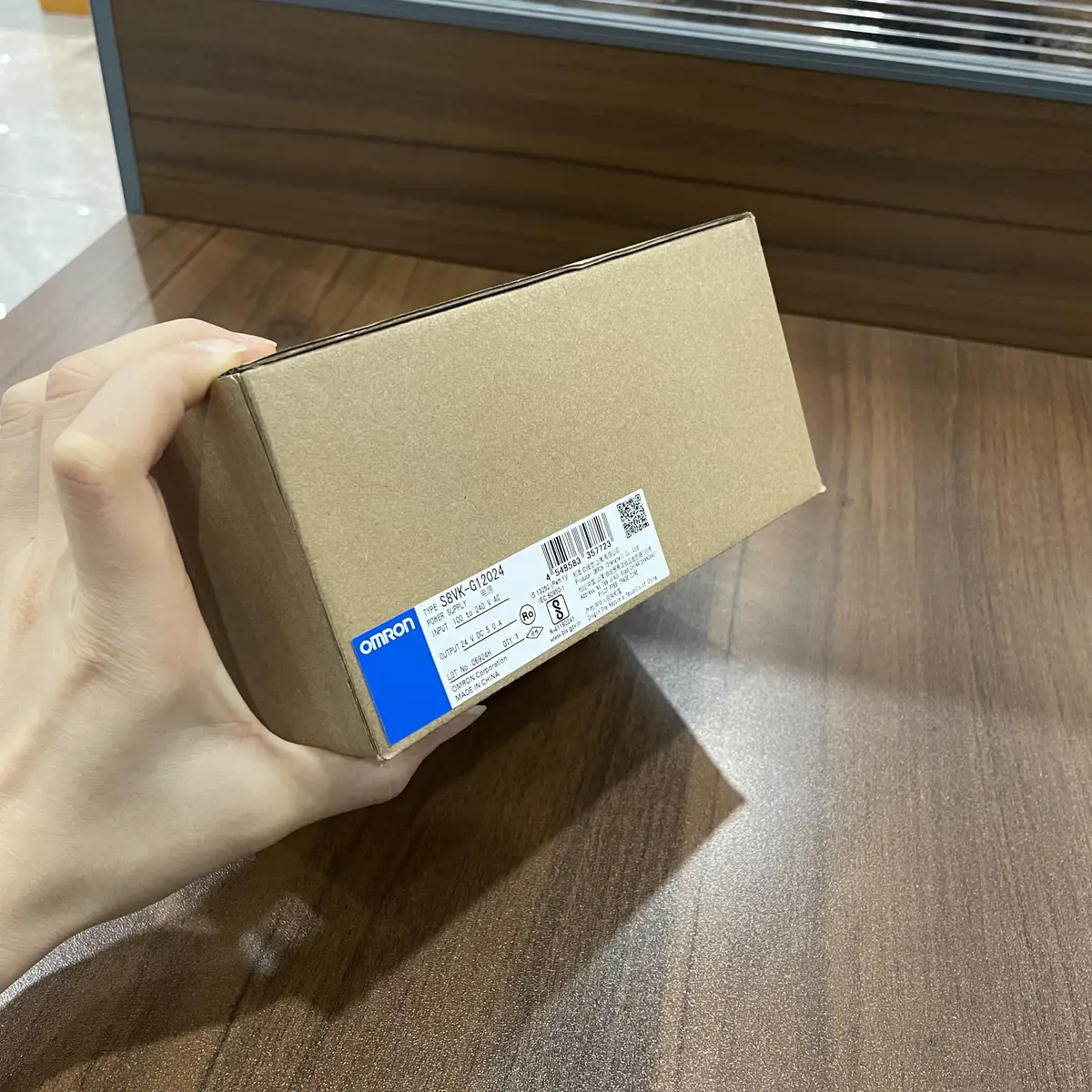

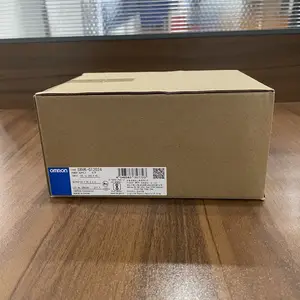

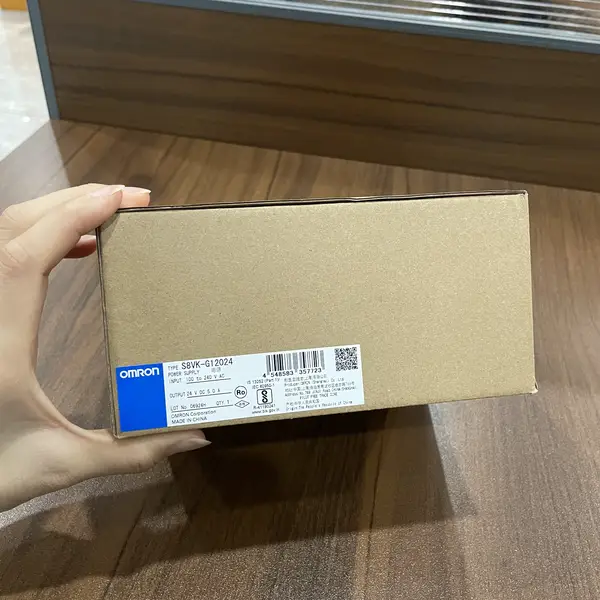

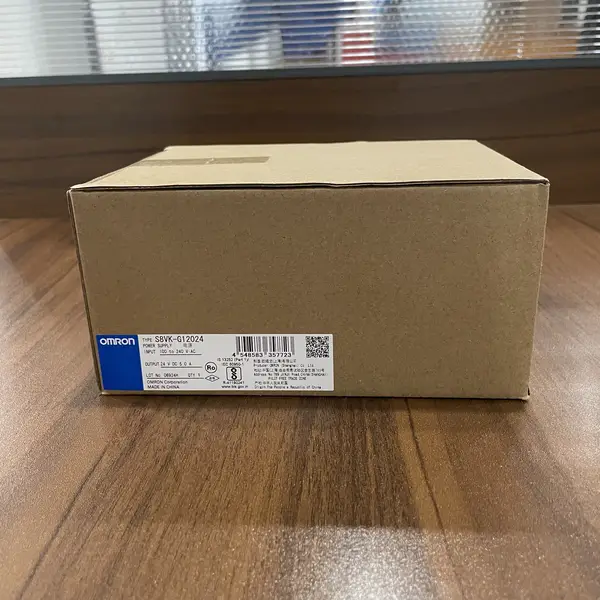

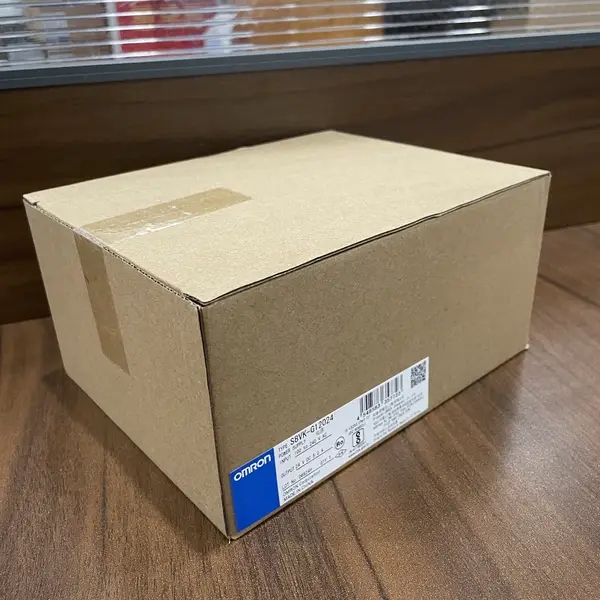

Omron S8VK-G12024 — DIN-Rail PSU, 120 W, 24 VDC, 5 A
SKU: S8VK-G12024USD 45.00
120 W DIN-rail switch-mode power supply, 24 VDC 5 A output (6 A power boost), 100-240 VAC universal input, 89 % efficiency, parallel up to 2 with redundancy LED, 5-year warranty, spring-clamp terminals, -40 to +70 °C.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The S8VK-G12024 is the 120 W tier of Omron's S8VK-G family of premium DIN-rail switch-mode power supplies — the right pick for control cabinets where the 60 W S8VK-G06024 isn't enough headroom but the 240 W S8VK-G24024 is overkill. It delivers a regulated 24 VDC output at 5 A continuous, with a 120 % power-boost capability (6 A for 5 s) for inrush loads like motor contactors, valve solenoids, and capacitor banks that exceed the steady-state rating during cold-start. The 100 to 240 VAC universal input also accepts 90 to 350 VDC, so the same SKU can be powered from a battery-backed DC bus without re-specifying the supply.
Where the S8VK-G12024 sits in the S8VK-G family
The S8VK-G family ranges from 15 W to 480 W in 5 V, 12 V, 24 V, and 48 V outputs. The S8VK-G12024 (this SKU) sits in the middle of the 24 V branch: S8VK-G01524 (15 W, 0.65 A), S8VK-G03024 (30 W, 1.3 A), S8VK-G06024 (60 W, 2.5 A), S8VK-G12024 (120 W, 5 A — this SKU), S8VK-G24024 (240 W, 10 A), S8VK-G48024 (480 W, 20 A). Pick this SKU when the load requires more than the S8VK-G06024's 2.5 A (e.g.
Parallel redundancy with the S8VK-R or second S8VK-G12024
The S8VK-G12024 supports parallel operation up to 2 supplies for redundancy on critical-load systems (life-safety PLCs, medical-device controllers, fire-alarm panels, redundant communication switches). When two S8VK-G12024 supplies are wired in parallel with their outputs tied together through a Schottky diode (or via the dedicated S8VK-R redundancy / decoupling module), the supply with the higher output voltage carries the full load; the redundant unit takes over only when the primary fails.
Spring-clamp wiring, terminal layout, and installation pitfalls
All S8VK-G-series supplies use spring-clamp (push-in) terminals instead of screw terminals. Insert a flat-blade screwdriver (3.0 mm wide, max) into the orange rectangular slot above the terminal, push to open the cage clamp, insert the stripped conductor (10 mm strip length, 0.5 to 4 mm² / AWG 20 to 12), and release — the conductor is held by spring tension at ~10 N contact force.
Key Features
- 120 W continuous output power
- 120 % power-boost capability
- Universal input: 100 to 240 VAC or 90 to 350 VDC
- 89 % efficiency at full load
- 5-year warranty
- Spring-clamp terminals — fast wiring, vibration-resistant
- Parallel operation up to 2 supplies for redundancy
- Series operation possible with external blocking diode
- SKU: S8VK-G12024
- Series: S8VK-G Premium DIN-Rail Power Supplies
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Control-cabinet primary 24 VDC supply for a packaging machine — S8VK-G12024 powering an NX-ECC202 EtherCAT coupler, 5 × NX-OD4256 outputs.
- Redundant-power supply for a process-critical PLC — two S8VK-G12024 supplies wired in parallel via S8VK-R10 module, providing N+1 redundancy without.
- Power source for a clean-room assembly cell — low-noise 24 VDC with EN 55011 Class B EMC compliance for sensitive.
- Outdoor cabinet power supply — -40 °C cold-start capability for unheated roadside cabinets with derating curve matched to the cabinet's.
Buying Checklist
- Pick S8VK-G12024 for 120 W 24 VDC with 5-year warranty, parallel-redundancy LED, spring-clamp terminals, and -40 to +70 °C operating range
- Pick S8VK-G06024 for 60 W 24 VDC 2.5 A
- Pick S8VK-G24024 for 240 W 24 VDC 10 A
- Pick S8VK-C12024 for the 120 W 24 VDC economy version
- Pick S8VS-12024 for the 120 W legacy version
- Pick S8VK-R10 redundancy module when wiring 2 S8VK-G12024 supplies in parallel for N+1 redundancy on critical loads
Technical Specifications
| Model | S8VK-G12024 |
|---|---|
| Series | S8VK-G Premium DIN-Rail Power Supplies |
| Type | Single-phase 100-240 VAC / 90-350 VDC input, 24 VDC output |
| Power Rating | 120 W continuous |
| Output Voltage | 24 VDC (adjustable 24-27.5 VDC via front-panel trimmer) |
| Rated Output Current | 5 A continuous |
| Power Boost | 120 % of rated (6 A) for 5 s on cold start |
| Input Voltage Range | 100 to 240 VAC, 50/60 Hz; 90 to 350 VDC |
| Input Frequency | 47 to 63 Hz |
| Inrush Current | 20 A max (cold start at 230 VAC) |
| Leakage Current | 0.5 mA max at 230 VAC |
| Overvoltage Protection | Yes, latch-off (restart on input reapplication) |
| Overtemperature Protection | Yes, auto-recovery |
| Series Operation | Possible up to 2 supplies with external blocking diode |
| Wire Range | 0.5 to 4 mm² (AWG 20 to 12), solid or stranded with ferrule |
Resources & Downloads
FAQ for S8VK-G12024
What's the difference between S8VK-G12024 and S8VK-C12024?
Both are 120 W 24 VDC DIN-rail supplies. The S8VK-G12024 (this SKU) is the premium tier: 5-year warranty, spring-clamp terminals, parallel-redundancy LED for N+1 operation, -40 to +70 °C operating range, Lloyd's Register marine approval. The S8VK-C12024 is the economy tier: 3-year warranty, screw terminals, no parallel-balance LED, -25 to +65 °C operating range, no Lloyd's approval.
Can two S8VK-G12024 supplies be wired in parallel for redundancy?
Yes — the S8VK-G12024 supports parallel operation up to 2 units for N+1 redundancy on critical loads. Wire the +V outputs of both supplies to a common bus through an external decoupling module (Omron S8VK-R10 redundancy module or equivalent Schottky diode pair) to prevent reverse-current damage if one supply fails.
What does the 120 % power boost mean on the S8VK-G12024?
The 120 % power boost (6 A) is a 5-second current limit that allows the S8VK-G12024 to deliver up to 6 A on cold-start (input power applied with discharged load capacitors) and on motor-inrush events, before settling back to the 5 A continuous rating.
Why does the S8VK-G12024 have spring-clamp terminals instead of screw terminals?
Spring-clamp (push-in) terminals offer three advantages over screw terminals: (1) faster wiring — push a ferrule-crimped conductor into the terminal and release, no torque-wrench verification needed (vs 5-10 s per terminal for screw tightening); (2) vibration resistance — the spring tension (~10 N contact force) holds the conductor firmly under mechanical shock up to 10 G, vs screw terminals which can loosen over time and require re-torquing; (3) corrosion resistance — the spring contact area is hermetically sealed against atmospheric.
