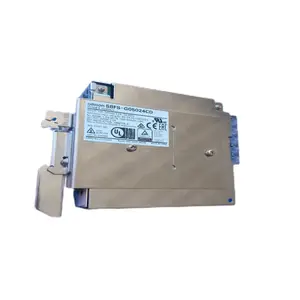

Omron S8FS-G05024CD — 50 W 24 VDC DIN-Rail PSU
SKU: S8FS-G05024CDUSD 47.00
Compact 50 W DIN-rail supply providing 24 VDC at 2.2 A through front-facing screw terminals.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

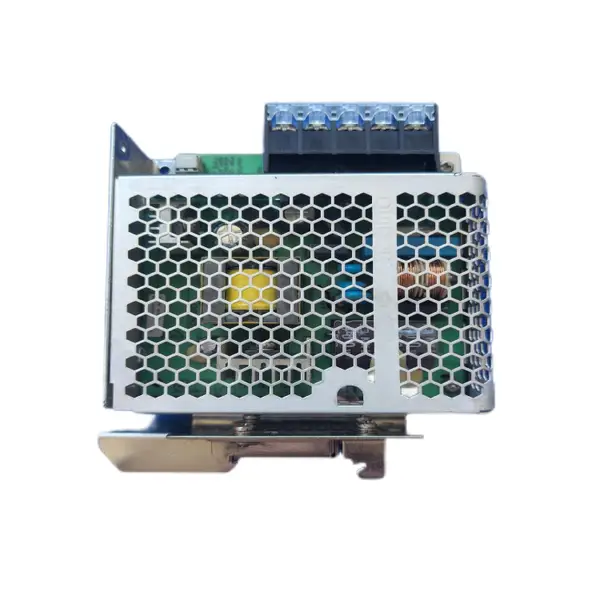

The Omron S8FS-G05024CD is a 24 VDC power supply for compact control panels that need more capacity than the 30 W model. It provides 2.2 A from a single-phase AC feed and also accepts a supported DC input. The covered, fanless housing mounts on DIN rail. Its screw terminals, green output light, and voltage adjuster all face the technician, which helps when checking or replacing the unit in a crowded cabinet.
The right amount of power for a small panel
Use this model for a small PLC section, sensors, relays, and interface devices when their combined current fits the rating. It gives more breathing room than S8FS-G03024CD without moving to the much larger 150 W supply. The unit has one output, no alarm contact, and no communication port. It is best suited to straightforward local power rather than a monitored supply system.
Check the mounting suffix
The CD suffix identifies the covered DIN-rail version with screw terminals. S8FS-G05024C has the same output but is built for direct panel mounting. This distinction is important in replacement work because the cases look similar while the mounting hardware differs. Check the full model number rather than ordering by wattage and voltage alone.
Before ordering
Total the steady current of all present loads and leave sensible room for devices likely to be added. Check start-up demand separately; overload protection is not extra working capacity. Confirm the cabinet feed, rail space, and wire access. The vented housing relies on natural air movement, so avoid blocking the cover or crowding it against other warm equipment. Omron does not support parallel connection to raise the output current. If one unit is too small, choose a higher-rated model.
Key Features
- 50 W supply with 24 VDC, 2.2 A output
- 100–240 VAC rated input with allowed DC input
- Covered, fanless metal housing
- Front-facing screw terminals with terminal cover
- DIN-rail mounting
- Green DC ON light and output adjustment
- Operation up to 70 °C with load reduction
- SKU: S8FS-G05024CD
- Series: S8FS-G05024CD
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- PLC, sensor, and relay power in compact OEM control panels
- 24 VDC supply for small packaging-machine control sections
- Local power for conveyor sensors and interface modules
- Replacement supply where front-facing terminals simplify service access
Buying Checklist
- Confirm the combined continuous load stays within 2.2 A.
- Check start-up demand for relays, valves, or other switched loads.
- Verify the cabinet feed is within the listed AC or DC range.
- Choose S8FS-G03024CD when 1.5 A is enough and space is tighter.
- Choose S8FS-G05024C when the supply must mount directly to a panel.
- Allow for rail depth, airflow, and any temperature or input derating.
Technical Specifications
| Power Rating | 50 W |
|---|---|
| Output Voltage | 24 VDC |
| Output Current | 2.2 A |
| Input Voltage | 100–240 VAC rated; 85–264 VAC or 80–370 VDC allowable |
| Construction | Covered, fanless |
| Mounting | DIN rail |
| Connection | Front-facing screw terminal block |
| Output Indicator | DC ON, green LED |
| Output Adjustment | -10% to +15% |
| Operating Temperature | -20 to 70 °C; derating applies |
| Overall Dimensions (W × H × D) | 97 × 37.2 × 117.7 mm |
Resources & Downloads
FAQ for S8FS-G05024CD
What is the difference between S8FS-G05024CD and S8FS-G03024CD?
The G050 model raises available current from 1.5 A to 2.2 A and uses a wider body. Both supply 24 VDC, use front-facing screw terminals, and mount on DIN rail. Choose G050 when the normal load or planned additions do not fit comfortably within the G030 rating.
Does the CD suffix on S8FS-G05024CD mean DIN-rail mounting?
Yes. In the S8FS-G range, CD identifies the covered DIN-rail model, and this exact SKU has screw terminals. S8FS-G05024C provides the same voltage and current for direct panel mounting instead. Check the suffix and mounting space before buying a replacement.
Can the S8FS-G05024CD use a DC input?
Yes. Omron lists 80 to 370 VDC as an allowable input range in addition to single-phase AC. DC use has extra fuse and approval requirements, so check the current datasheet for the intended voltage and market before ordering or wiring the supply.
