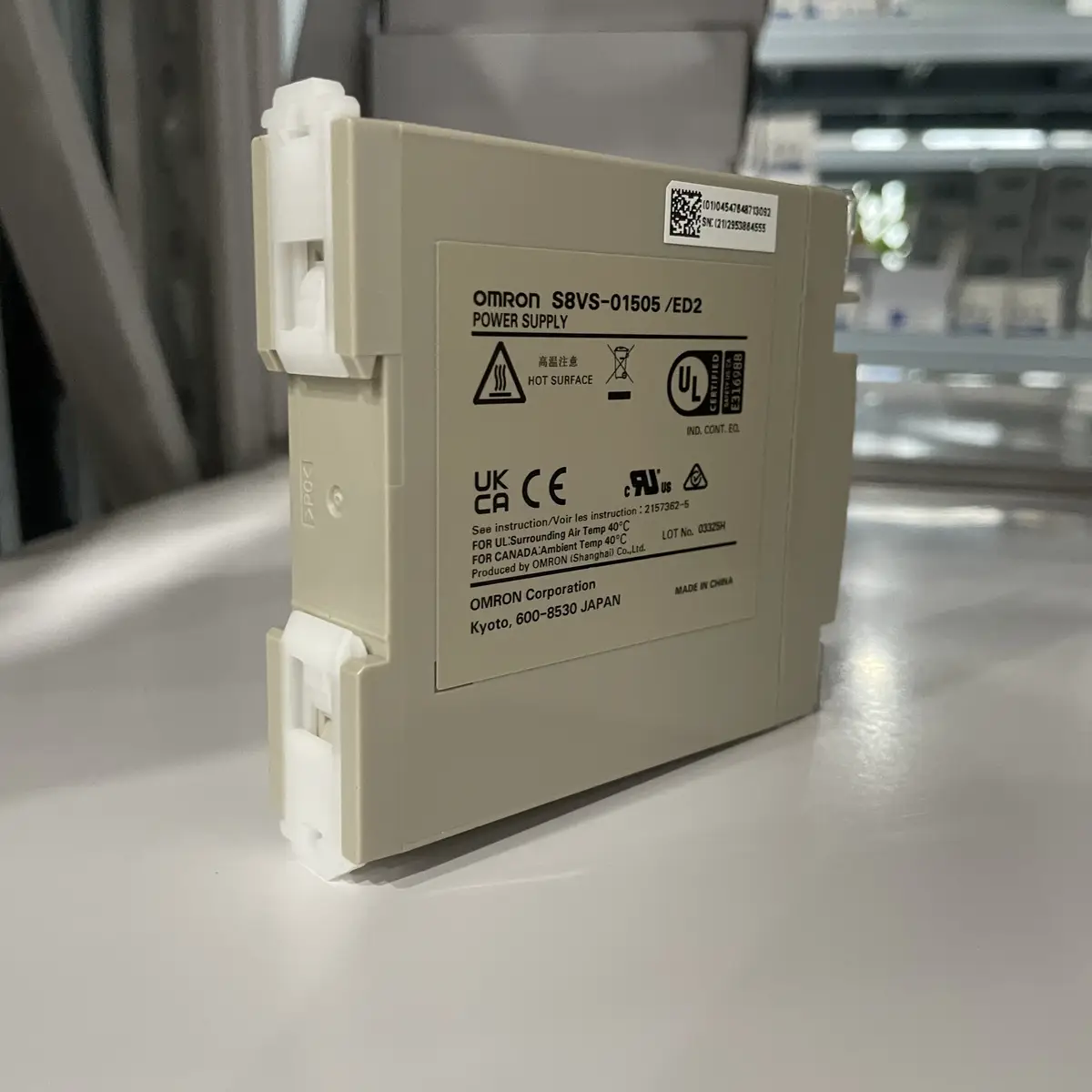

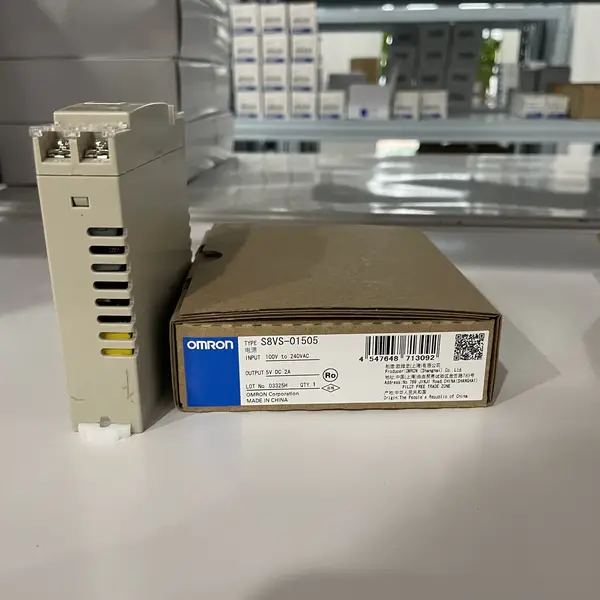

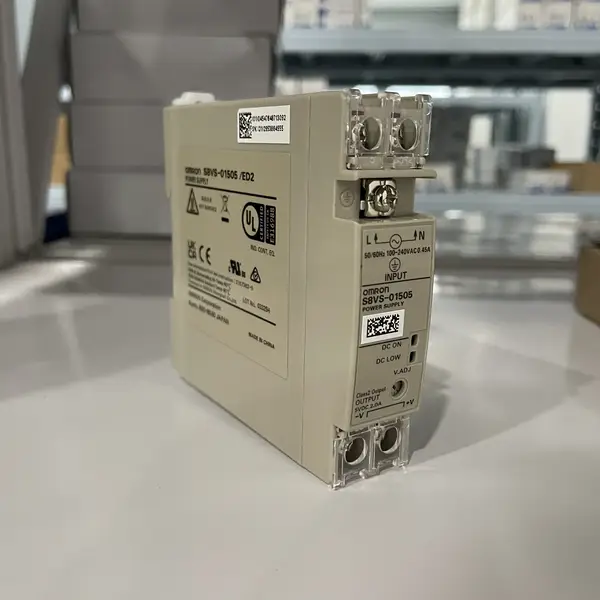

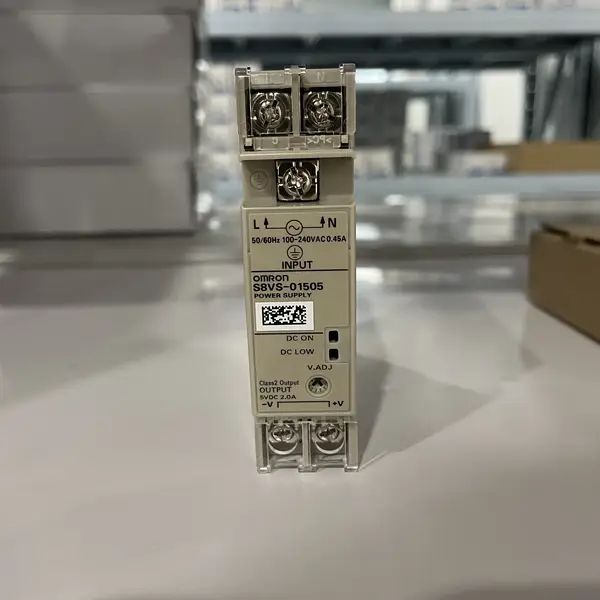

Omron S8VS-01505 — compact 22.5 mm wide DIN-rail PSU in the S8VS family with the plastic enclosed case, the input terminal block on the lower left, and the 5 VDC output terminal on the lower right

Omron S8VS-01505 — 15 W 5 VDC 2 A DIN-rail

SKU: S8VS-01505

USD 42.00

Omron S8VS-01505 compact DIN-rail PSU, 15 W 5 VDC 2 A, 100-240 VAC input. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron S8VS-01505 is a 15 W compact DIN-rail switch-mode power supply with 5 VDC output, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

The supply accepts single-phase 100-240 VAC at 50/60 Hz and delivers a regulated 5 VDC at 2 A continuous. The plastic case is 22.5 mm wide, the narrowest in the S8VS family, designed for tight panels where 5 VDC is needed for indicator lamps, small PLC backplanes, or sensor signal conditioning. Operating temperature is -10 to 60 C ambient.

The covered enclosure measures 22.5 mm W x 90 mm H x 110 mm D and weighs 200 g. Screw terminal block for input and output. Compliance covers UL class 2 output, EN 61204-3, CE, and RoHS. The S8VS-03005 is the 30 W / 6 A sibling in the same 22.5 mm wide form factor.

Key Features

  • Compact single-phase 100-240 VAC DIN-rail PSU in 22.5 mm wide plastic case
  • 15 W output, 5 VDC at 2 A continuous, UL class 2 output
  • Operates from -10 to 60 C ambient, screw terminal block for input and output
  • 22.5 mm W x 90 mm H x 110 mm D, 200 g, UL / EN 61204-3 / CE / RoHS
  • SKU: S8VS-01505
  • Series: S8VS compact DIN-rail power supply, 5 VDC output
  • Voltage: 5 VDC

Best-Fit Applications

  • Compact 5 VDC bus on a CP1E machine cell where 15 W covers a small PLC signal-rail power supply and a handful of indicator LEDs
  • Sensor signal conditioning on a packaging line where 5 VDC powers photoelectric sensor amplifiers and indicator lamps in a 22.5 mm wide slot
  • Spare replacement on a legacy CJ1M line where the original S8VS-01505 failed and the 22.5 mm narrow footprint must match the existing DIN-rail slot

Buying Checklist

  • Choose the S8VS-01505 when the cabinet needs 15 W / 2 A at 5 VDC in the narrowest 22.5 mm wide DIN-rail slot.
  • Choose the S8VS-03005 instead when the same 22.5 mm wide slot needs 30 W / 5 A at 5 VDC.
  • Choose the S8VK-G06024 instead when the cabinet needs 24 VDC instead of 5 VDC and accepts a wider 40 mm footprint.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series S8VS compact DIN-rail power supply, 5 VDC output
Model / SKU S8VS-01505
Output Power 15 W
Output Voltage / Current 5 VDC at 2 A continuous
Input Voltage Single-phase 100-240 VAC, 50/60 Hz
Efficiency 73 percent typical at full load
Operating Temperature -10 to 60 C ambient
Mounting DIN rail (TS35/7.5 or TS35/15), plastic enclosed case
Protection Overload, overvoltage, output short-circuit
Certifications UL class 2 output, EN 61204-3, CE, RoHS
Dimensions / Weight 22.5 mm W x 90 mm H x 110 mm D, 200 g

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for S8VS-01505

What is the difference between S8VS-01505 and S8VS-03005?
Both are 5 VDC outputs in the narrow 22.5 mm wide S8VS family. The 01505 delivers 15 W / 2 A continuous; the 03005 delivers 30 W / 6 A. Choose 01505 for indicator lamps and small signal conditioning, 03005 for heavier 5 VDC loads.
Is the S8VS-01505 UL class 2 rated?
Yes. The 15 W output is UL class 2 rated, which limits the output to 100 VA or 5 A. The rating simplifies the field wiring because no special Class 2 cable routing is needed. The 01505 delivers 15 W / 2 A continuous; the 03005 delivers 30 W / 6 A continuous at the same 5 VDC output voltage. Both share the narrow 22.5 mm wide DIN-rail housing.
Does the S8VS-01505 accept DC input?
No. The S8VS-01505 is single-phase AC only at 100-240 VAC. For DC input, choose the S8VK-S or S8VK-G family which accept 90-350 VDC. The rating simplifies the field wiring because no special Class 2 cable routing is needed, which reduces the cabinet wiring cost and simplifies UL panel listing.
What is the efficiency of the S8VS-01505?
73 percent typical at full load. The supply runs from -10 to 60 C ambient. Compliance covers UL class 2 output, EN 61204-3, CE, and RoHS. Compliance covers UL class 2 output, EN 61204-3 for DC output performance, CE marking for the European market, and RoHS for hazardous-substance restriction.
