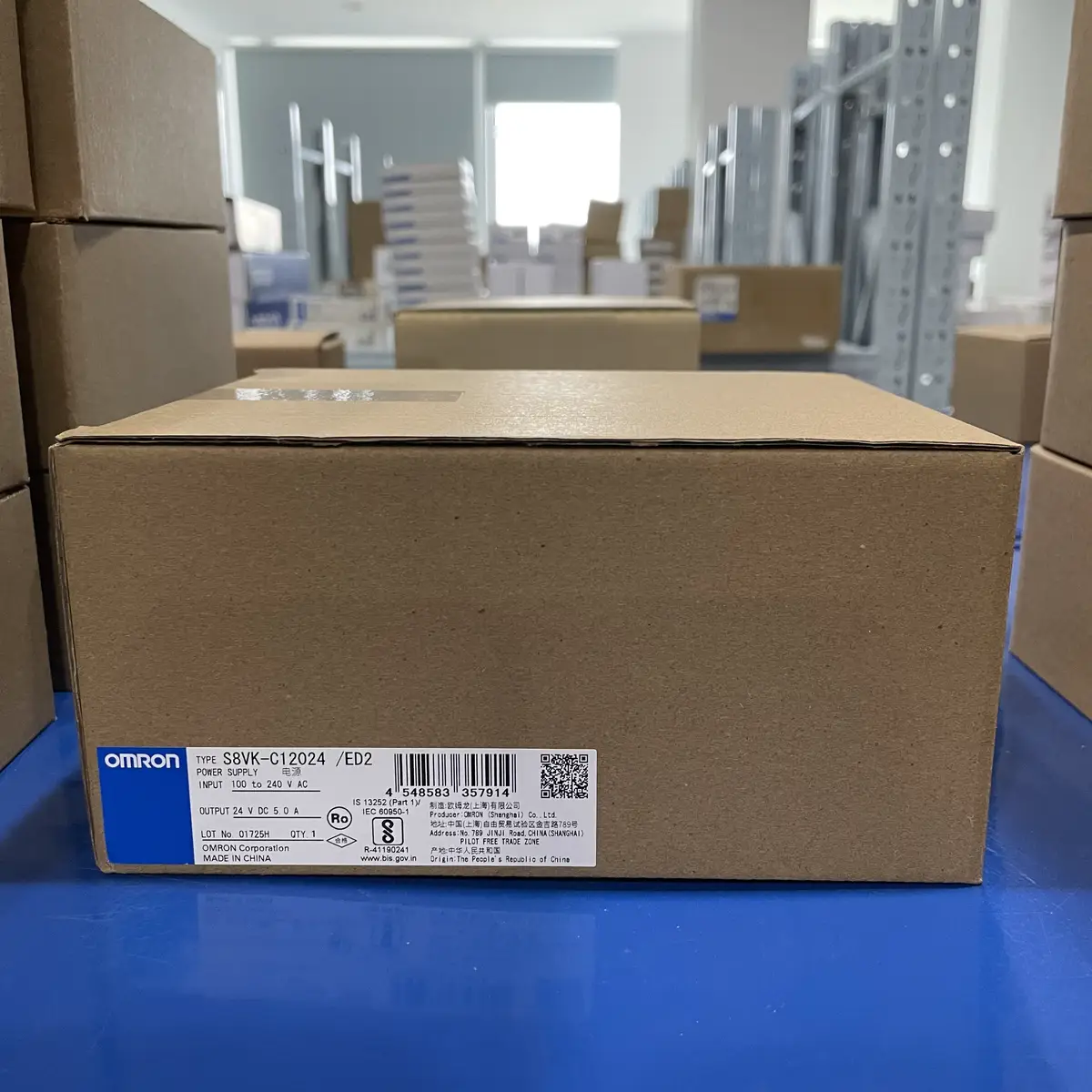

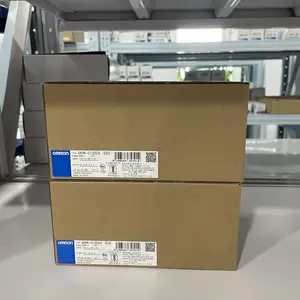

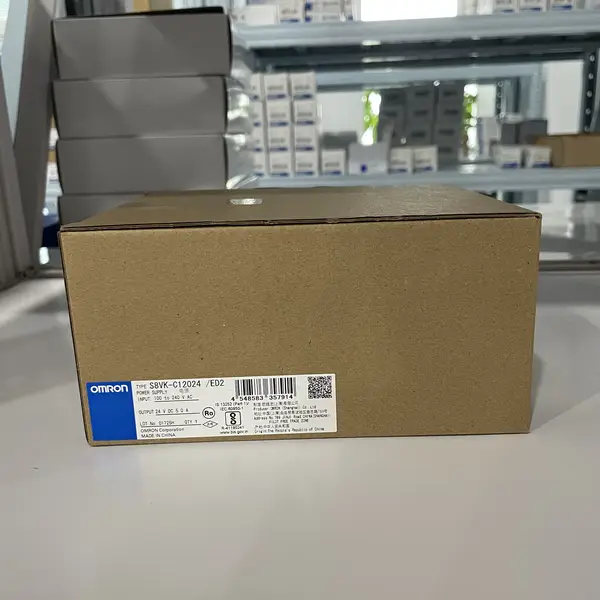

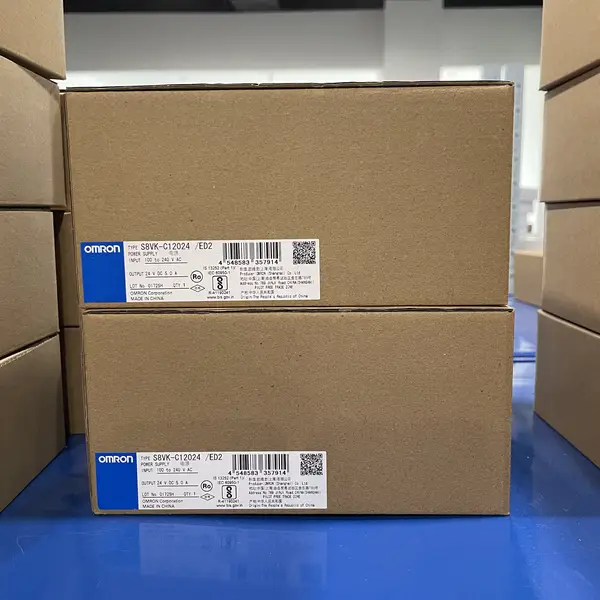

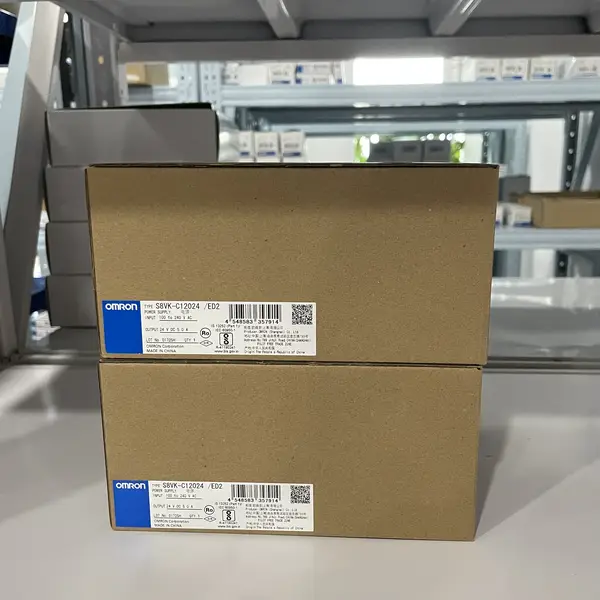

Omron S8VK-C12024 — 120 W 24 VDC 5 A Economy PSU
SKU: S8VK-C12024USD 24.00
Cost-effective 120 W / 24 VDC / 5 A DIN-rail PSU, 89% efficient, 100-240 VAC input, screw terminals, 3-year warranty.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron S8VK-C12024 is the 120 W member of the S8VK-C line — the cost-effective tier of Omron's S8VK family. It delivers 24 VDC at 5 A from a single-phase 100 to 240 VAC (or 90 to 350 VDC) input, with 89% typical efficiency and a 3-year warranty. The C line suits budget-sensitive indoor panels where the G line's 5-year warranty and the S line's harsh-environment rating are not required, and where the load sits between 2.5 A and 5 A.
Choosing between the S8VK-C, S8VK-G, and S8VK-S 120 W models
All three deliver 24 VDC at 5 A from the same 100 to 240 VAC input, in the same 40 x 125 x 113 mm footprint as the C and G lines. S8VK-C12024 (this SKU) is the cost-effective pick: screw terminals, -25 to 60 °C, 3-year warranty. S8VK-G12024 is the global-harmonized general-purpose line: -40 to 70 °C, 5-year warranty, and a 120% power boost (6 A for 5 s) for starting capacitive loads. S8VK-T12024 is the three-phase 200 to 240 VAC input line for plants that already have three-phase mains at the cabinet. Pick the C12024 when the cabinet is climate-controlled and the 3-year warranty is acceptable; pick the G12024 for most new installations; pick the T12024 for three-phase mains.
Before ordering or installing
Check the derating curve before specifying: standard mounting delivers 100% output at 40 °C and derates linearly to about 75% at 60 °C. If your panel runs above 40 °C, size up to the S8VK-C24024 (10 A) to keep the load at 50% of rating. Tighten the screw terminals to 0.5 to 0.6 N·m. The S8VK-C line does not support direct parallel operation; for 1+1 redundancy, add an S8VK-R20 redundancy unit between two supplies. Series operation (stacking two for ±24 V or 48 V) is supported with an external diode on each output. The output voltage is adjustable from -10% to +15% via the V.ADJ trimmer on the front face.
Key Features
- 120 W / 24 VDC / 5 A DIN-rail switch-mode power supply
- S8VK-C cost-effective line, 3-year warranty
- Universal input: 100 to 240 VAC (85 to 264 VAC operating), 90 to 350 VDC
- 89% typical efficiency at 230 VAC
- Screw terminals, 0.5 to 0.6 N·m torque
- Output voltage adjustable -10% to +15% via V.ADJ trimmer
- Series operation supported (with external diode); parallel via S8VK-R20
- Green DC ON LED on front face
- Conforms to UL 508 / 62368-1, cUR, EN 62477-1, EN 62368-1
- SKU: S8VK-C12024
- Series: S8VK-C cost-effective DIN-rail power supply
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- 24 VDC supply for a CJ2M PLC with several I/O units
- Power for a mid-size sensor-and-solenoid panel on a packaging or assembly line
- Cost-down 24 VDC supply in OEM machine control cabinets
- Replacement supply for legacy S8VS-12024 installations
- Industrial control panels powering sensors, indicators, and small valves
Buying Checklist
- Pick S8VK-C12024 (this SKU) for a cost-effective 120 W / 24 VDC / 5 A DIN-rail PSU
- Pick S8VK-G12024 for the general-purpose 5-year-warranty pick with power boost
- Pick S8VK-T12024 when the cabinet has three-phase 200 to 240 VAC mains
- Pick S8VK-C06024 if the load is under 2.5 A (saves panel space)
- Pick S8VK-C24024 if the load exceeds 4.5 A continuous
- Add an S8VK-R20 redundancy unit for 1+1 parallel/redundancy
Technical Specifications
| Model | S8VK-C12024 |
|---|---|
| Series | S8VK-C cost-effective DIN-rail power supply |
| Power Rating | 120 W continuous |
| Output Voltage | 24 VDC (adjustable -10% to +15%) |
| Output Current | 5 A continuous |
| Rated Input Voltage | 100 to 240 VAC (single phase) |
| Operating Input Range | 85 to 264 VAC; 90 to 350 VDC |
| Efficiency | 89% typical at 230 VAC |
| Operating Temperature | -25 to 60 °C (derate above 40 °C) |
| Parallel / Series | Parallel via S8VK-R20; series up to 2 with external diode |
| Dimensions (W x H x D) | 40 x 125 x 113 mm |
| Certifications | UL 508 / 62368-1, cUR, EN 62477-1, EN 62368-1; EN 55011 Class A |
Resources & Downloads
FAQ for S8VK-C12024
How do I choose between S8VK-C12024, S8VK-G12024, and S8VK-T12024?
All three deliver 24 VDC at 5 A in the same 40 x 125 x 113 mm footprint. S8VK-C12024 (this SKU) is single-phase 100 to 240 VAC, 3-year warranty — the cost-effective pick. S8VK-G12024 is also single-phase but adds -40 to 70 °C range, 5-year warranty, 120% power boost (6 A for 5 s). S8VK-T12024 is three-phase 200 to 240 VAC — for three-phase cabinets. Pick C12024 for budget single-phase, G12024 for most new installs, T12024 for three-phase mains.
Can I parallel two S8VK-C12024 units for redundancy?
Not directly. The S8VK-C line does not support internal current sharing, so paralleling two C12024 supplies output-to-output will fight each other and may fault the overvoltage protection. For 1+1 redundancy, add an S8VK-R20 redundancy unit between the two supplies and the load — it isolates the outputs, decouples the load, and gives a redundancy-OK signal. Series operation (stacking for ±24 V or 48 V) is supported with an external diode on each output.
What fuse or circuit breaker do I need on the AC input?
The internal fuse is 250 VAC 8.0 A HBC (high breaking capacity), not user-replaceable. For external protection, fit a 10 A or 13 A slow-blow MCB on the AC feed — fast-blow breakers will nuisance-trip on the 16 A peak inrush at 115 VAC or 32 A peak at 230 VAC (cold start at 25 °C). Allow at least 1.5 mm² (AWG 16) wire for the input and 4 mm² (AWG 12) for the 5 A output.
What happens if the panel temperature runs above 50 °C?
Above 40 °C the S8VK-C12024 derates linearly: about 90% of rated load at 50 °C and about 75% at 60 °C (standard mounting). For a panel that runs above 50 °C continuously, step up to the S8VK-C24024 (10 A) to keep the load at 50% of rating, or to the S8VK-G12024 which runs to 70 °C without derating. Side-by-side mounting and face-up mounting both derate further; check the datasheet derating curve for your exact layout before specifying.
