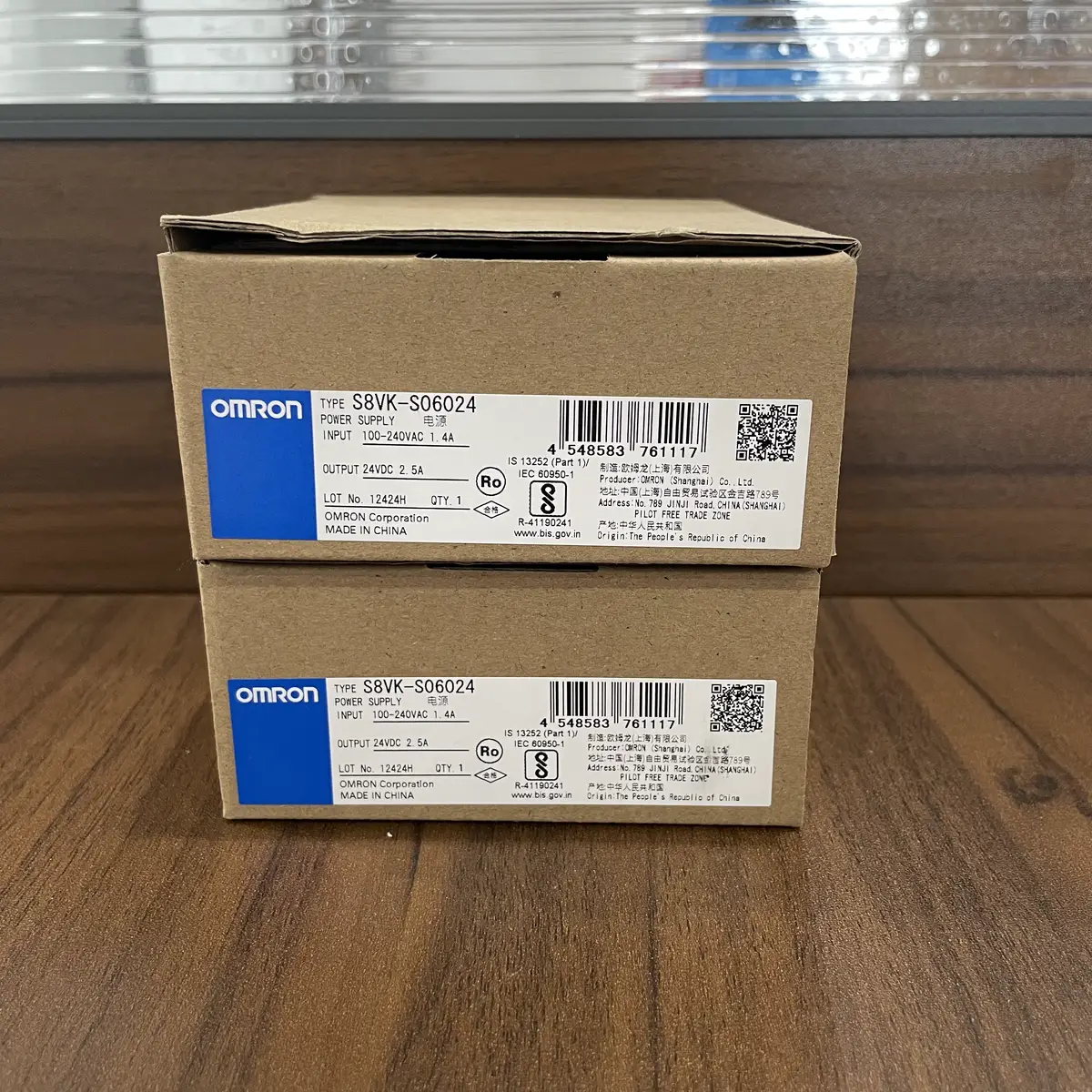

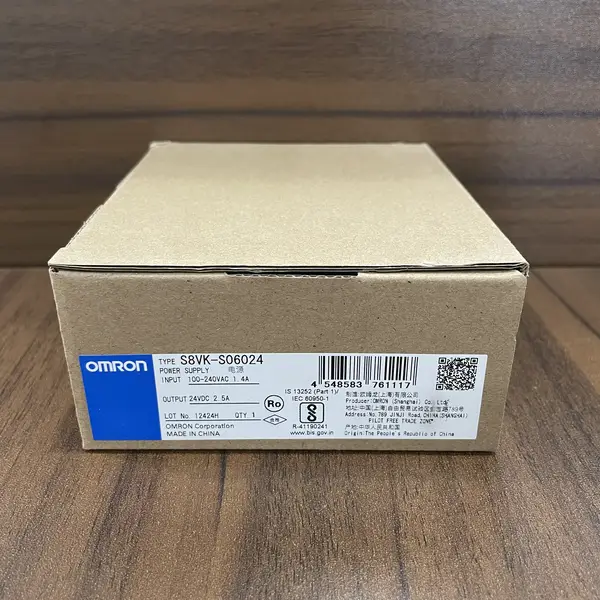

Omron S8VK-S06024 — 60W 24VDC Slim PSU, Push-In Plus
SKU: S8VK-S06024USD 40.00
60 W / 24 VDC / 2.5 A slim DIN-rail power supply with Push-In Plus tool-free terminals and coated PCBs for harsh environments.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

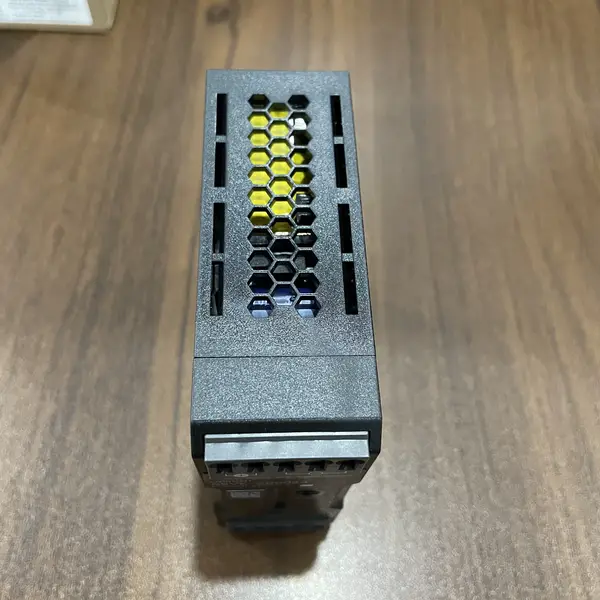

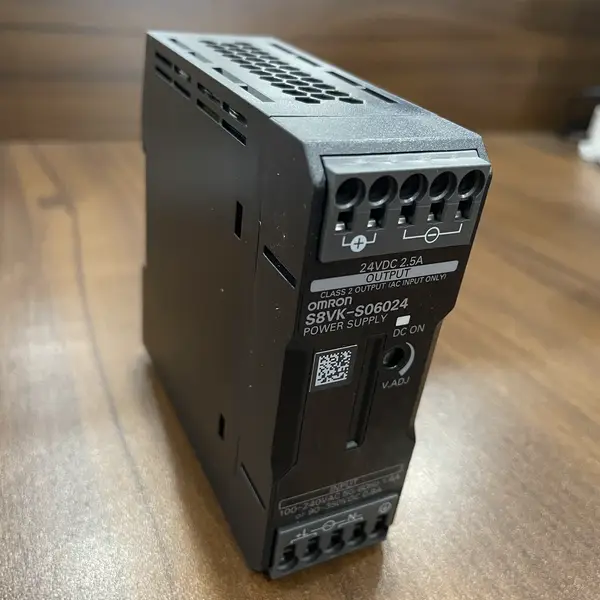

The S8VK-S06024 is a slim 60 W / 24 VDC / 2.5 A DIN-rail power supply built for outdoor panels, washdown, marine, and other harsh environments. It accepts 85-264 VAC or 90-350 VDC input (any global mains without tap switching) and runs from -40 to +70 °C with side-by-side mounting possible up to 55 °C. The Push-In Plus terminals let you insert stripped wires without a screwdriver — a real time-saver on production lines.
Choosing between the S8VK-G, S8VK-S, and S8VK-C 60 W models
All three deliver the same 60 W / 24 VDC / 2.5 A. S8VK-S06024 (this SKU) is the environmental-resistant line with Push-In Plus tool-free terminals, coated PCBs, and a 5-year warranty — the right pick for outdoor, washdown, marine, or food-processing panels. S8VK-G06024 (already done) is the general-purpose line with screw terminals and the same 5-year warranty. S8VK-C06024 is the cost-down line with screw terminals and a 3-year warranty — pick it for budget-driven indoor panels where the warranty length doesn't matter.
Before ordering
Push-In Plus terminals accept solid wire directly; for stranded wire, add ferrules (the spring clamp holds ferruled wire more reliably than bare strands). The Power Boost function delivers 120% (3.0 A) for 10 s to start capacitive loads like DC-DC converters or motor-driver capacitors — useful but not for continuous overload. The PSU doesn't support parallel operation; for redundancy, step up to the S8VK-S24024 (240 W) with built-in parallel support.
Key Features
- 60 W / 24 VDC / 2.5 A DIN-rail power supply
- Slim 32 mm width
- Push-In Plus tool-free terminals (no screwdriver needed for wire insertion)
- Coated PCBs for humidity and corrosive atmospheres
- Wide-range input 85-264 VAC / 90-350 VDC
- Power Boost 120% (3.0 A) for 10 s
- -40 to +70 °C operating range
- 5-year warranty
- UL / CE / Lloyd's / DNV-GL certified
- SKU: S8VK-S06024
- Series: S8VK-S06024
- Voltage: 85-264 VAC
- I/O: 24 I/O
Best-Fit Applications
- Outdoor water-treatment or pumping-station control panel
- Marine / offshore platform control cabinet
- Food-processing or washdown equipment panel
- Compact OEM machine panel where slim 32 mm width matters
- Building-automation or HVAC control cabinet
Buying Checklist
- Pick S8VK-S06024 (this SKU) for harsh environments and Push-In Plus wiring
- Pick S8VK-G06024 (already done) for general-purpose indoor panels with screw terminals
- Pick S8VK-C06024 for budget-driven panels (3-year warranty)
- Pick S8VK-S03024 for 30 W / 1.3 A when the load is smaller
- Pick S8VK-S12024 for 120 W / 5 A when the load is bigger
- Add ferrules when using stranded wire with Push-In Plus terminals
Technical Specifications
| Model | S8VK-S06024 |
|---|---|
| Power Rating | 60 W |
| Output | 24 VDC, 2.5 A (3.0 A boost for 10 s) |
| Efficiency | 87% typ @ 115 VAC; 89% typ @ 230 VAC |
| Input Voltage | 85-264 VAC / 90-350 VDC |
| Connection | Push-In Plus terminals (AWG 22-12) |
| Operating Temperature | -40 to +70 °C |
| Dimensions (W x H x D) | 32 x 90 x 110 mm |
| Certifications | UL 508, UL 62368-1, CE, EN 61558-2-16, Lloyd's, DNV-GL |
| Warranty | 5 years |
Resources & Downloads
FAQ for S8VK-S06024
What's the difference between S8VK-S06024 and S8VK-G06024?
Same 60 W / 24 V / 2.5 A output and 5-year warranty. S8VK-S06024 (this SKU) has Push-In Plus tool-free terminals and coated PCBs for harsh environments. S8VK-G06024 (already done) uses screw terminals and is the general-purpose pick for indoor installations.
Can the S8VK-S06024 deliver more than 2.5 A?
Yes, briefly — the Power Boost function delivers 120% (3.0 A) for 10 seconds, which is useful for starting capacitive loads (DC-DC converters, motor-driver capacitors). It isn't designed for continuous overload. For continuous loads above 2.5 A, step up to the S8VK-S12024 (120 W / 5 A).
Does the S8VK-S06024 accept DC input?
Yes — it accepts 90-350 VDC in addition to 85-264 VAC. The same terminals handle both, no tap switching needed. This makes it suitable for solar-powered control panels and DC microgrid applications.
Can I parallel two S8VK-S06024 units for redundancy?
Not directly — the 60 W model doesn't have built-in parallel support. To parallel them, add external OR-ing diodes (e.g., S8VK-R20 redundancy module) between the outputs. For built-in parallel operation, step up to the S8VK-S24024 (240 W) or larger.
What warranty does the S8VK-S06024 carry?
5 years — the longest in Omron's DIN-rail PSU lineup and a hallmark of the S-series' rugged design (coated PCBs, metal housing, 2G vibration rating). Expected service life under typical industrial conditions is 10+ years.
