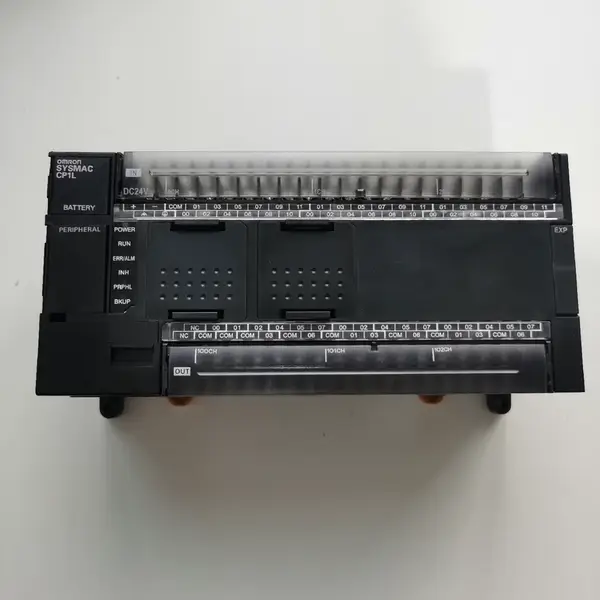

Omron CP1L-M60DT-D — front view of the CP1L-M CPU showing the Omron model label, the green PWR LED, the green RUN LED, the red ERR LED, the input-output LED row and the USB slave connector

Omron CP1L-M60DT-D — CP1L-M 60-I/O PLC, 24 VDC, NPN

SKU: CP1L-M60DT-D

USD 185.00

Omron CP1L-M60DT-D CP1L-M 60-I/O compact PLC, 24 VDC supply, 36 inputs / 24 NPN outputs, USB, 2 option ports. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CP1L-M60DT-D is a 60-I/O compact PLC from the CP1L-M family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

The CPU carries 36 DC inputs and 24 NPN (sinking) transistor outputs. Supply is 24 VDC, 20.4 to 26.4 V allowable, 20 W max. Memory is 10K steps program plus 32K words data with battery backup. Programming runs through the built-in USB port.

Six interrupt inputs, four 100 kHz high-speed counters and two 100 kHz pulse outputs cover a 2-axis position-ing job without an extra module. Up to three CP1W expansion I/O units extend the rack to 180 I/O points. Two option-board slots take a CP1W-CIF11 RS-485, CP1W-CIF01 RS-232C or CP1W-CIF41 Ethernet board. Body weight is about 816 g, 0 to 55 degC, DIN-rail mount. For a sourcing-transistor sibling on the same body, pick the CP1L-M60DT1-D. For a relay-output version, use the CP1L-M60DR-D.

Key Features

  • CP1L-M 60-I/O compact PLC, 36 DC inputs, 24 NPN transistor outputs
  • 24 VDC supply, 10K steps program, 32K words data, battery backup
  • USB programming port, 2 option-board slots for RS-232C / RS-485 / Ethernet
  • 4 high-speed counters at 100 kHz, 2 pulse outputs at 100 kHz, 180 max I/O
  • SKU: CP1L-M60DT-D
  • Series: Omron CP1L-M compact PLC
  • Voltage: 24 VDC
  • I/O: 36 I/O

Best-Fit Applications

  • Mid-size packaging line where the 60-I/O count covers sensors and solenoids directly and the USB port pulls programs from CX-Programmer
  • Indexing conveyor where the 2-axis 100 kHz pulse output drives two stepper drives through the built-in transistor outputs
  • Spare drop-in for a CP1L panel where the original PLC failed and the new CPU takes the same wiring and program

Buying Checklist

  • Pick the CP1L-M60DT-D for a 60-I/O CP1L-M compact PLC with NPN transistor outputs on a 24 VDC supply.
  • Pick the CP1L-M60DT1-D instead when the panel needs sourcing (PNP) transistor outputs on the same 60-I/O body.
  • Pick the CP1L-M40DR-A instead when 40 I/O with relay outputs covers the cabinet on the same CP1L-M platform.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CP1L-M compact PLC
Model / SKU CP1L-M60DT-D
Built-in I/O 36 DC inputs, 24 NPN transistor outputs
Power Supply 24 VDC, 20.4 to 26.4 VDC allowable, 20 W max
Program Memory 10K steps
Data Memory 32K words with battery backup
Instruction Execution 0.55 us basic LD, 4.1 us special
High-Speed Counters 4 inputs at 100 kHz, 16 / 32-bit
Pulse Outputs 2 outputs, 1 Hz to 100 kHz, transistor only
Communication USB peripheral port, 2 option-board slots
Operating Temperature 0 to 55 degC, 10 to 90% RH

FAQ for CP1L-M60DT-D

What does the -DT-D suffix mean?
DT = DC supply with sinking (NPN) transistor outputs. DT1-D is sourcing (PNP) on the same body. DR-D is relay output. The CPU body and program memory are the same across the three suffixes.
How many CP1W expansion units can I add?
Up to three CP1W Expansion I/O Units, taking the rack to 180 I/O points total (60 built-in + 40 per expansion x 3). Expansion units cannot be used with CP1L-L10 / L14 / L20.
Does the CP1L-M60DT-D have Ethernet?
Not on the body. Add a CP1W-CIF41 Ethernet option board in one of the two option slots, or step up to the CP1L-EM30DT-D for a built-in Ethernet port.
What software programs the CP1L-M60DT-D?
CX-Programmer under CX-One. The project file is backward-compatible across the CP1L-L, CP1L-M and CP1L-EM CPU bodies.
