Omron NA5-9W001S-V1 — HMI, 9-Inch, Silver
SKU: NA5-9W001S-V1USD 1405.00
Omron NA5-9W001S-V1 NA5 9-inch HMI, wide TFT LCD, 800x480, silver bezel, 2 Ethernet + 3 USB. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NA5-9W001S-V1 is a 9-inch wide-screen HMI from the NA5 programmable-terminal family, manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the Sysmac Studio or NB-Designer project file on a USB drive included. Production ended on 30 September 2026. Omron Europe and the UK site both record it as discontinued; the successor is the same model on the -V2 hardware revision.

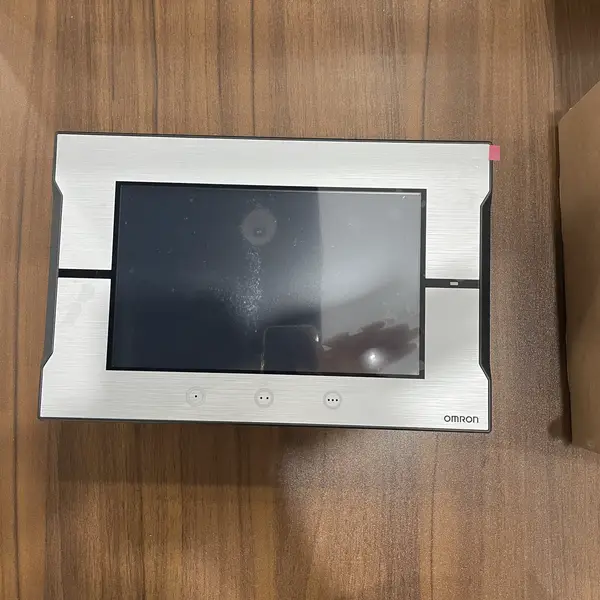

The panel is a wide TFT LCD with 800 x 480 resolution and 16.7 million colours. The frame is silver and the front face is IP65. Two Ethernet ports (EtherNet/IP) and three USB ports allow connection to NJ / NX / NY controllers plus a USB memory stick for recipe backup. One RS-232 port is available for legacy serial devices.
Panel cutout is 260 x 165 mm; front face is 290 x 190 mm; depth behind the bezel is 63.1 mm; weighs 1700 g. Configuration runs in Sysmac Studio with NJ / NX / NY variable sharing. An SD card slot accepts the HMC-SD293 or HMC-SD493. For a longer-life replacement on a similar wide body, use the NB10W-TW01B-V1.
Key Features
- NA5-series 9-inch wide TFT LCD HMI, 800 x 480 resolution, 16.7 M colours
- Silver bezel, IP65 front face, 2 Ethernet (EtherNet/IP) + 3 USB + 1 RS-232 + SD slot
- Panel cutout 260 x 165 mm, front 290 x 190 mm, depth 63.1 mm, 1700 g
- Sysmac Studio configuration with NJ / NX / NY variable sharing and Simulator
- SKU: NA5-9W001S-V1
- Series: Omron NA5-series programmable terminal (NA-V1)
Best-Fit Applications
- Operator panel on an NJ501 Sysmac cell where the 9-inch wide screen displays the recipe table and three live trend graphs
- Maintenance terminal on a packaging line where the USB port reads the recipe from a stick and the SD slot holds the alarm log
- Spare replacement for an existing NS12 HMI where the panel cutout is widened to NA5 dimensions and the Sysmac Studio project carries over
Buying Checklist
- Pick the NA5-9W001S-V1 for a 9-inch wide NA5 HMI with silver bezel and 2 Ethernet ports.
- Pick the NA5-9W001B-V1 instead when the cabinet needs the same 9-inch panel with a black bezel.
- Pick the NA5-12W101S-V1 instead when the operator station needs a 12-inch wide screen on the same NA5 platform.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NA5-series programmable terminal (NA-V1) |
| Model / SKU | NA5-9W001S-V1 |
| Display Size | 9 inch wide TFT LCD |
| Resolution | 800 x 480 pixels |
| Colours | 16.7 million (24-bit colour depth) |
| Frame Colour | Silver |
| Communication Ports | 2 x Ethernet (EtherNet/IP), 3 x USB, 1 x RS-232, 1 x SD card slot |
| Front Protection | IP65 |
| Panel Cutout | 260 x 165 mm |
| Front Face | 290 x 190 mm |
| Built-in Depth / Weight | 63.1 mm; 1700 g; EOP 2026-09-30 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NA5-9W001S-V1
What software programs the NA5-9W001S-V1?
Sysmac Studio with the NA-series HMI option. The project shares variables directly with NJ / NX / NY controllers and runs a built-in Simulator for offline testing.
Can the NA5-9W001S-V1 replace an NS-series HMI?
Yes with the NS-to-NA replacement guide. The panel cutout is larger (260 x 165 mm vs NS12 300 x 220 mm), so the cabinet door needs machining. The Sysmac Studio project can import the CX-Designer / NS-Designer screens.
When does the NA5-9W001S-V1 reach end of production?
Production ended on 30 September 2026. Omron Europe and the UK site both record it as discontinued; the successor is the same model on the -V2 hardware revision. For a longer-life replacement on the same 9-inch form factor, use the NB10W-TW01B-V1 10-inch wide NB-series HMI with Sysmac Studio or NB-Designer support.
