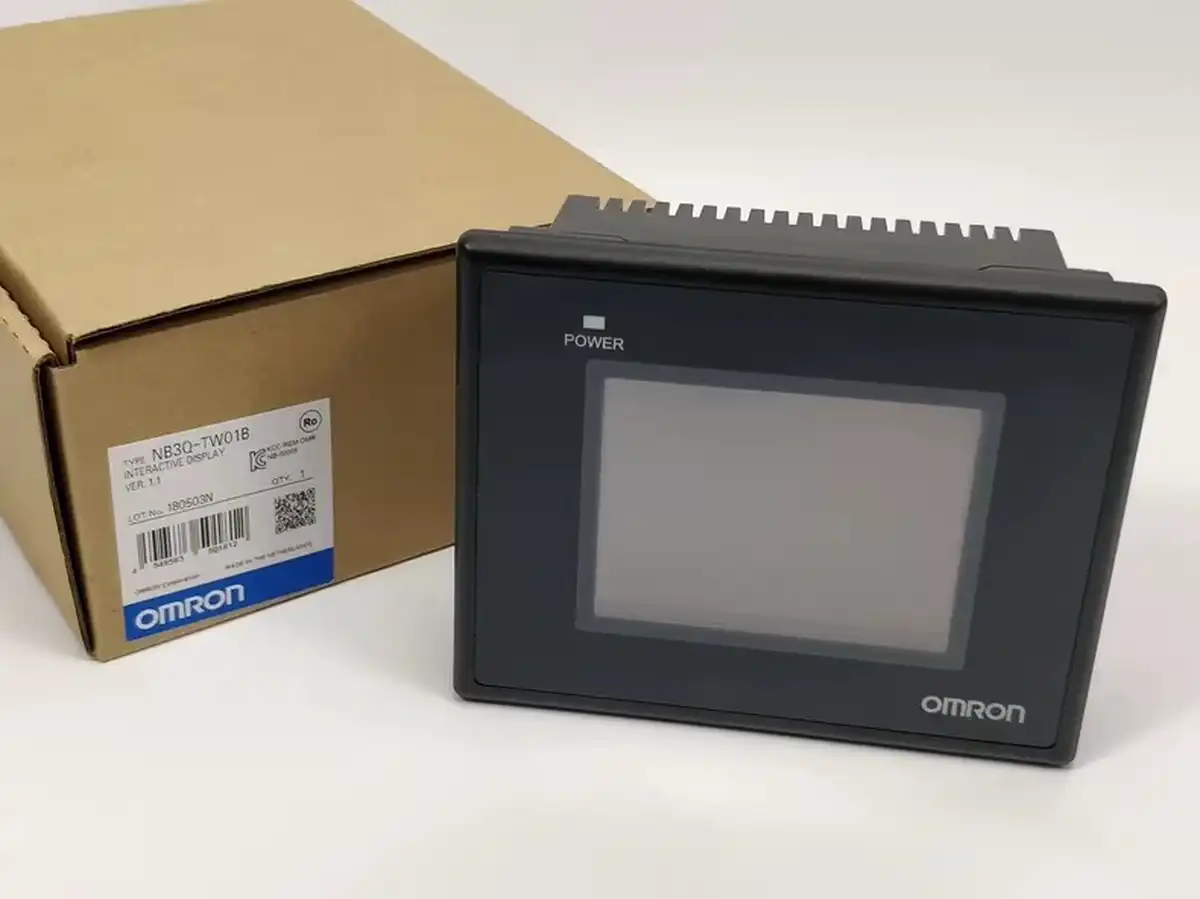

Omron NB3Q-TW01B-V1 — front view of the compact black 3.5-inch NB-series touch HMI showing the 320 x 240 color TFT display and the OMRON wordmark on the lower bezel, mounted on a wooden surface next to a brown Omron-branded product box with the NB3Q-TW01B type label

Omron NB3Q-TW01B-V1 — 3.5" NB HMI, Ethernet + USB Host

SKU: NB3Q-TW01B-V1

USD 170.00

NB-series 3.5-inch QVGA color touch HMI, 128 MB memory, 10/100 base-T Ethernet, USB host + USB slave, RS-232C, 24 VDC.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron NB3Q-TW01B-V1 is the NB-series 3.5-inch QVGA color touch HMI with a full set of I/O: 10/100 base-T Ethernet, USB-A host (for a USB memory stick), USB-B slave (for CX-One project upload), and RS-232C (COM1). Pick the TW01B-V1 for a tight-panel machine where an Ethernet link to a CJ1 / CP1 / NJ / NX PLC is the primary connection, but the operator also needs USB-stick recipe transfer on the floor. The 320 x 240 pixel TFT color screen and the white LED backlight keep the panel readable at the typical shop-floor brightness, and the IP65 front seal suits washdown-tolerant panels.

USB host for recipe transfer

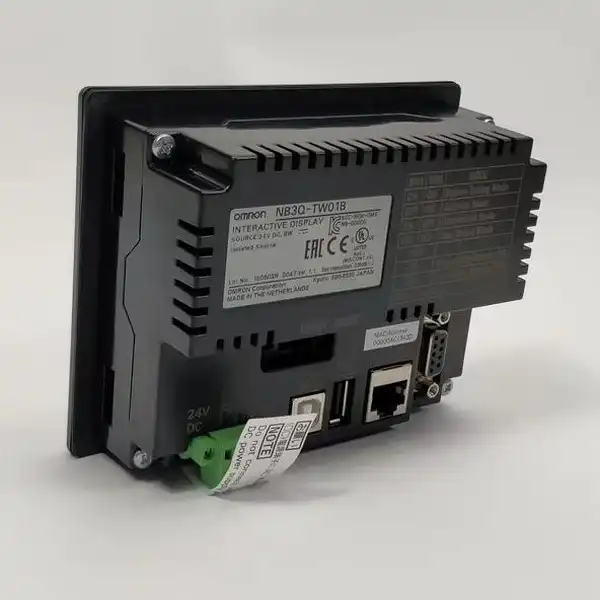

The USB-A host port takes a standard USB memory stick (the FZ-MEM2G / FZ-MEM8G industrial-grade sticks are the typical pick). Operators can pull a recipe from the HMI, drop it on the stick, and carry it to the next machine -- or push a new recipe from the stick without a PC at the line. The USB-B slave port on the bottom edge takes a standard USB cable back to the engineering PC for project upload / download.

NB family and TW code splits

The TW01B-V1 is the full-feature NB3Q. Pick the NB3Q-TW00B instead for a stripped Ethernet-only variant that drops the USB host. The NB5Q-TW01B-V1 is the 5.6-inch QVGA sibling with the same port set; the NB7W-TW01B-V1 is the 7.0-inch WVGA Ethernet + USB-host sibling; the NB10W-TW01B is the 10.1-inch wide-format sibling. All NB-series panels run the same NB-Designer project, so a TW01B-V1 project moves to a 7-inch NB7W without rework -- just resize the pages.

Before ordering

Confirm the panel cutout is 119.0 x 92.5 mm with 1 to 5 mm panel thickness. Confirm the HMI cable run to the PLC is in spec for Ethernet (Cat 5e or better, 100 m max). Confirm the FZ-MEM2G / FZ-MEM8G industrial-grade USB stick is in stock for recipe transfer. Pair with the NB3Q-KBA04 protective sheet for shop-floor touch life. Pick the NB5Q-TW01B-V1 for a 5.6-inch screen with the same Ethernet + USB-host port set.

Key Features

  • NB-series 3.5-inch QVGA color touch HMI, 320 x 240 pixels, 65,536 colors
  • White LED backlight, 50,000-hour half-life, 250 cd/m2 typical brightness
  • 128 MB internal project memory for screens, recipes, and data logging
  • 10/100 base-T Ethernet for CX-One project upload and FINS / Modbus-TCP communications to CJ / CP1 / NJ / NX
  • USB-A host port for USB memory stick recipe transfer (FZ-MEM2G / FZ-MEM8G industrial-grade sticks)
  • USB-B slave port for PC project upload / download
  • COM1 RS-232C (D-Sub 9-pin) for legacy PLCs, inverters, and bar code readers
  • Analog resistive touch, 1,000,000 cycle operating life
  • 24 VDC (-15 / +15%) supply at 5 W max
  • IP65 front panel only (NOT IP65F or IP67), black bezel
  • ~128.8 x 103.8 x 52.8 mm body, <= 400 g
  • NB-Designer drag-and-drop programming with Smart Active Parts library
  • Panel cutout 119.0 x 92.5 mm, 0 to +50 C operating, UL 61010-2-201 / CE / KC / RCM
  • SKU: NB3Q-TW01B-V1
  • Series: NB-series Programmable Terminal (compact touch HMI)

Best-Fit Applications

  • Compact operator panel on a small benchtop machine where panel space is at a premium
  • Compact Ethernet-only HMI for a CJ1 / CP1 / NJ / NX PLC link, replacing an older NS5 in a like-for-like retrofit
  • Recipe-display station on a packaging line using FZ-MEM2G / FZ-MEM8G USB sticks for product change-over
  • Status / alarm display on a multi-station conveyor where one HMI is mounted on each station
  • Skid-mount control where the operator needs a compact touch interface plus Ethernet diagnostics

Buying Checklist

  • Pick NB3Q-TW01B-V1 for a compact 3.5-inch QVGA Ethernet + USB-host + USB-slave + RS-232C NB-series touch HMI at 24 VDC.
  • Pick NB3Q-TW00B instead for an Ethernet-only stripped variant without the USB host (no USB-stick recipe transfer).
  • Pick NB5Q-TW01B-V1 instead for a 5.6-inch QVGA screen with the same full port set.
  • Pick NB7W-TW01B-V1 instead for a 7.0-inch WVGA screen with the same full port set.
  • Pair with FZ-MEM2G / FZ-MEM8G industrial USB memory sticks for recipe transfer on the shop floor.
  • Pair with NB3Q-KBA04 protective sheet for shop-floor touch life (replaceable without breaking the IP65 front seal).

Technical Specifications

Series NB-series Programmable Terminal (compact touch HMI)
Model NB3Q-TW01B-V1 (3.5-inch QVGA color TFT, full feature)
Display 3.5-inch TFT color LCD, 320 x 240 (QVGA), 65,536 colors, white LED backlight
Memory 128 MB internal project memory
Ports 10/100 base-T Ethernet + USB-A host + USB-B slave + COM1 RS-232C (D-Sub 9-pin)
Touch Analog resistive, 1,000,000 cycle life
Programming NB-Designer drag-and-drop, Smart Active Parts library
Power 24 VDC -15/+15% at 5 W max
Body Dimensions 128.8 H x 103.8 W x 52.8 D mm (approximate)
Panel Cutout 119.0 x 92.5 mm, 1 to 5 mm panel thickness
Front Seal IP65 front panel only (NOT IP65F or IP67)
Approvals / Operating UL 61010-2-201 / CE / KC / RCM, 0 to +50 C, 20 to 85 % RH

FAQ for NB3Q-TW01B-V1

What is the difference between NB3Q-TW01B-V1 and NB3Q-TW00B?
Both are 3.5-inch QVGA Ethernet NB3Q HMIs. The TW01B-V1 is the full-feature variant: Ethernet + USB-A host + USB-B slave + RS-232C (COM1). The TW00B is the stripped variant: Ethernet + USB-B slave + RS-232C (COM1) only -- no USB host, so a memory stick cannot be plugged in for recipe transfer. Pick the TW01B-V1 for a recipe-driven line. Pick the TW00B for a status / alarm panel where the USB-stick function is not needed. Both panels run the same NB-Designer project.
Does the NB3Q-TW01B-V1 support Modbus-TCP or only FINS?
It supports both. The built-in Ethernet port runs FINS / UDP and FINS / TCP for native Omron communications to CJ / CP1 / NJ / NX, plus Modbus-TCP for third-party devices. The COM1 RS-232C port runs Host Link (SYSWAY), NT Link 1:N, and Modbus-RTU master / slave via NB-Designer protocol macros. The typical small-machine build uses Ethernet FINS to the CJ1 / NJ and a separate RS-232C port to a barcode reader or a serial-label printer.
Can the NB3Q-TW01B-V1 replace an older NS5 / NS8 HMI?
Yes, for most projects. The NB3Q panel cutout is 119.0 x 92.5 mm, which is much smaller than the NS5-SQ10B-V2 cutout (184 x 132 mm) -- a direct panel replacement requires adapter bezel work, but the NB5Q-TW01B-V1 (5.6-inch) and NB7W-TW01B-V1 (7.0-inch) cutouts are closer to the NS class. Project migration from CX-Designer to NB-Designer is not automatic -- the project has to be rebuilt in NB-Designer. Pick the NA5-12W101B (Sysmac NA-series) when the Sysmac Studio / NA Studio programming environment is the standard.
What does the -V1 suffix on the NB3Q-TW01B-V1 mean?
The -V1 is a hardware / firmware revision marker for the NB-series. The TW01B and TW01B-V1 share the same datasheet and project compatibility -- a TW01B (non-V1) project loads on a TW01B-V1 without rework, and vice versa. The -V1 is the currently-active catalog entry. If the warehouse shows only the TW00B (no -V1), it is functionally equivalent for the non-V1 part -- the differences are internal firmware features that don't affect the user project.
