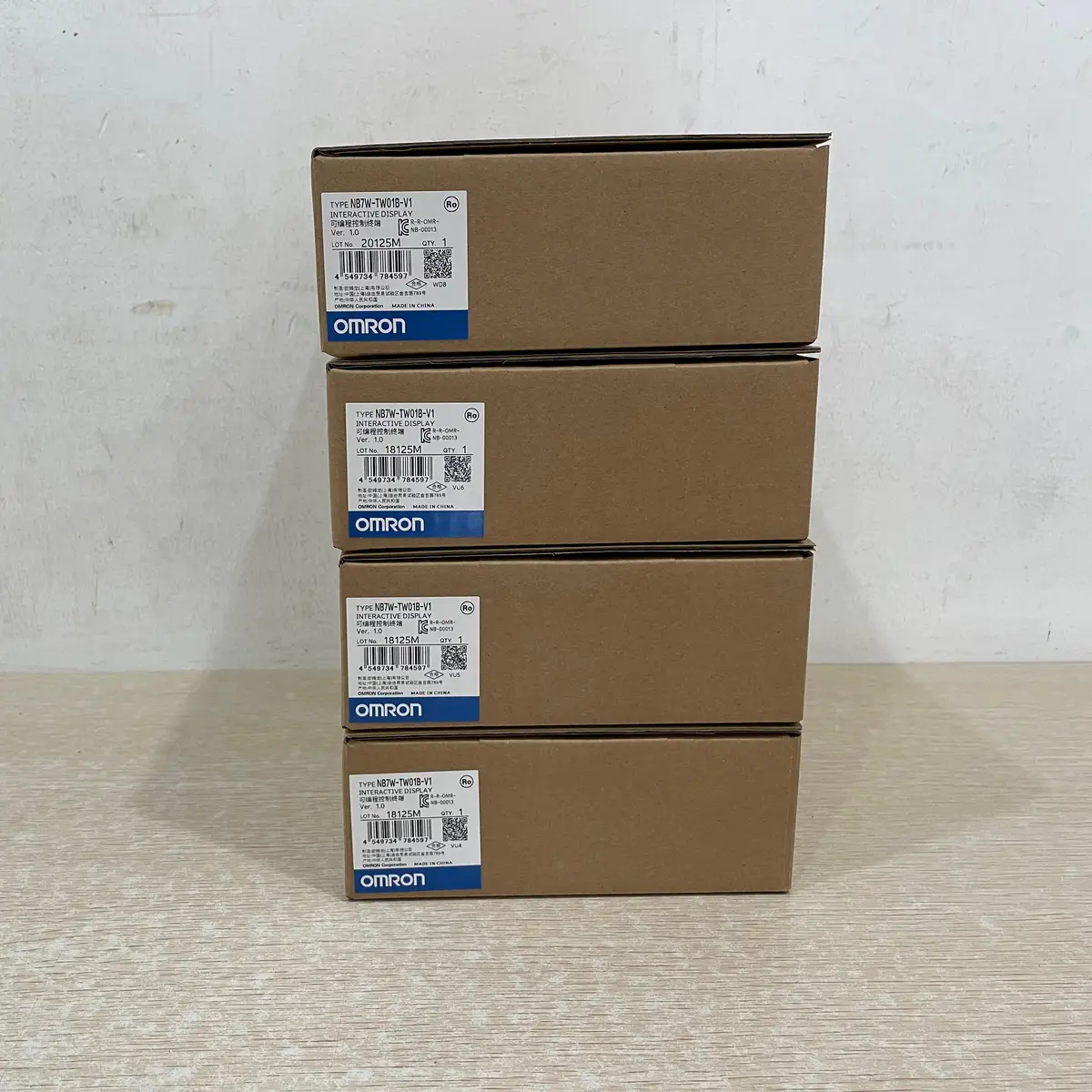

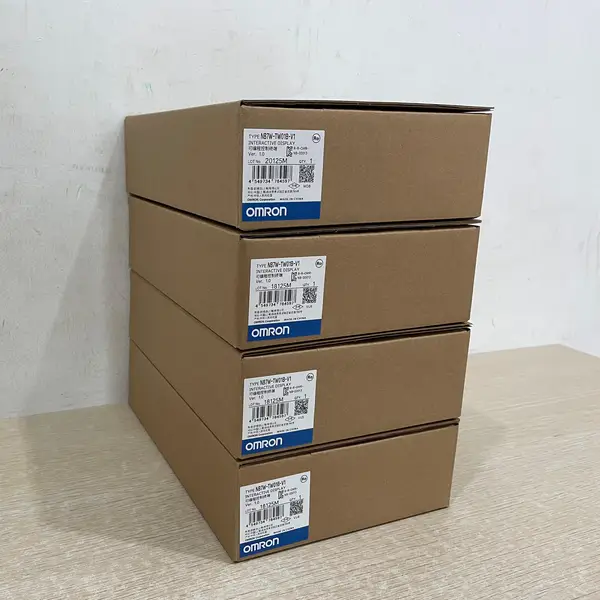

Omron NB7W-TW01B-V1 — stack of four brown Omron-branded product boxes (one on top of three) on a wooden surface, each with the white NB7W-TW01B-V1 type label, the Ver. 1.0 subtext, the KCC-REM-OMR-NB-00013 KC mark, the lot number 18125M, the barcode 4549734784597, the KC logo, and the blue-and-white OMRON band

Omron NB7W-TW01B-V1 — 7" NB HMI, WVGA, Ethernet + USB Host

SKU: NB7W-TW01B-V1

USD 185.00

NB-series 7-inch WVGA color touch HMI, 128 MB memory, Ethernet + USB host + USB slave + 2 serial, 800 x 480, 24 VDC, IP65 front.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron NB7W-TW01B-V1 is the NB-series 7.0-inch widescreen WVGA color touch HMI with the full port set: 10/100 base-T Ethernet, USB-A host (for a USB memory stick), USB-B slave (for CX-One project upload), and TWO RS-232C serial ports (COM1 + COM2). Pick the TW01B-V1 for a 7-inch shop-floor panel where an Ethernet link to a CJ / CP1 / NJ / NX PLC is the primary connection but the operator also needs USB-stick recipe transfer, a barcode reader on COM2, and a serial-label printer on COM1. The 800 x 480 pixel TFT color screen and the white LED backlight keep the panel readable at typical shop-floor brightness, and the IP65 front seal suits washdown-tolerant panels.

USB host for recipe transfer

The USB-A host port takes a standard USB memory stick (the FZ-MEM2G / FZ-MEM8G industrial-grade sticks are the typical pick). Operators can pull a recipe from the HMI, drop it on the stick, and carry it to the next machine -- or push a new recipe from the stick without a PC at the line. The USB-B slave port on the same edge takes a standard USB cable back to the engineering PC for project upload / download via NB-Designer.

NB family and TW code splits

The TW01B-V1 is the full-feature NB7W. Pick the NB7W-TW00B instead for a stripped variant that drops the USB host (memory-stick recipe transfer unsupported). Pick the NB7W-TW11B instead for the cost-optimized Ethernet-only stripped variant. The NB5Q-TW01B-V1 is the 5.6-inch QVGA sibling with the same full port set; the NB3Q-TW01B-V1 is the 3.5-inch tighter-cutout sibling; the NB10W-TW01B is the 10.1-inch wide-format sibling. All NB-series panels run the same NB-Designer project, so a TW01B-V1 project moves to a 10.1-inch NB10W without rework -- just resize the pages.

Before ordering

Confirm the panel cutout is 192.0 x 138.0 mm with 1 to 5 mm panel thickness. Confirm the HMI cable run to the PLC is in spec for Ethernet (Cat 5e or better, 100 m max). Confirm the FZ-MEM2G / FZ-MEM8G industrial-grade USB stick is in stock for recipe transfer. Pair with the NB7W-KBA04 protective sheet for shop-floor touch life. Pick the NB5Q-TW01B-V1 for a 5.6-inch cut with the same port set; pick the NB10W-TW01B for a 10.1-inch upgrade.

Key Features

  • NB-series 7.0-inch widescreen WVGA color touch HMI, 800 x 480 pixels, 65,536 colors
  • White LED backlight, 50,000-hour half-life, ~250 cd/m2 typical brightness
  • 128 MB internal project memory for screens, recipes, alarms, and data logs
  • 10/100 base-T Ethernet for CX-One project upload and FINS / Modbus-TCP communications to CJ / CP1 / NJ / NX
  • USB-A host port for USB memory stick recipe transfer (FZ-MEM2G / FZ-MEM8G industrial-grade sticks)
  • USB-B slave port for PC project upload / download
  • COM1 RS-232C (D-Sub 9-pin) for Host Link / NT Link / Modbus-RTU / serial protocol macro
  • COM2 RS-232C (D-Sub 9-pin) for second serial link -- barcode reader, label printer, or NT Link 1:N chain
  • Analog resistive touch, 1,000,000 cycle operating life
  • 24 VDC (-15 / +15%) supply at 6 W max
  • IP65 front panel only (NOT IP65F or IP67), black bezel (the -B suffix)
  • 202 H x 148 W x 46 D mm body, <= 715 g
  • Panel cutout 192.0 x 138.0 mm, 1 to 5 mm panel thickness
  • NB-Designer drag-and-drop programming with Smart Active Parts (SAP) library
  • 0 to +50 C operating, UL 61010-2-201 / CE / KC / RCM
  • SKU: NB7W-TW01B-V1
  • Series: NB-series Programmable Terminal (touch HMI), V1 hardware / firmware

Best-Fit Applications

  • 7-inch widescreen operator panel on a medium-size packaging or assembly machine where multiple trend graphs / alarm views need to fit on one screen
  • Ethernet-connected HMI for a CJ / CP1 / NJ / NX PLC main link, with USB-stick recipe transfer and a barcode reader on COM2
  • Spare / replacement panel for a legacy NS8-TV01B-V2 install where the cutout is being upgraded from 8.4-inch to 7.0-inch WVGA without re-engineering the CX-Designer / NB-Designer logic
  • Multi-station conveyor where the HMI mounts in a wider cabinet door (NB7W-TW01B-V1 fits the 192 x 138 mm cutout that is too wide for an NB5Q)
  • Pickup for an NB3Q / NB5Q retrofit where a larger screen is needed without going all the way to NB10W; same NB-Designer project moves between models without rework

Buying Checklist

  • Pick NB7W-TW01B-V1 for a 7-inch WVGA Ethernet + USB-host + USB-slave + 2 RS-232C + 128 MB NB-series touch HMI at 24 VDC.
  • Pick NB7W-TW00B instead for an Ethernet + 2 RS-232C stripped variant without the USB host (no USB-stick recipe transfer).
  • Pick NB7W-TW11B instead for the cost-optimised Ethernet-only stripped variant that drops the front LEDs, battery clock, and serial ports.
  • Pick NB5Q-TW01B-V1 instead for a 5.6-inch QVGA screen with the same full port set on a tighter cabinet door.
  • Pick NB10W-TW01B instead for a 10.1-inch WSVGA screen with the same full port set when a larger display is needed.
  • Pair with FZ-MEM2G / FZ-MEM8G industrial USB memory sticks for recipe transfer on the shop floor.

Technical Specifications

Series NB-series Programmable Terminal (touch HMI), V1 hardware / firmware
Model NB7W-TW01B-V1 (7-inch WVGA color TFT, full feature, black bezel)
Display 7.0-inch TFT color LCD, 800 x 480 (WVGA), 65,536 colors, white LED backlight
Display Area 153.84 x 85.63 mm
Memory 128 MB internal project memory
Ports 10/100 base-T Ethernet + USB-A host + USB-B slave + COM1 RS-232C (D-Sub 9-pin) + COM2 RS-232C (D-Sub 9-pin)
Touch Analog resistive, 1,000,000 cycle life
Programming NB-Designer drag-and-drop (free), Smart Active Parts library
Power 24 VDC -15/+15% at 6 W max
Body Dimensions 202 H x 148 W x 46 D mm, <= 715 g
Panel Cutout 192.0 x 138.0 mm, 1 to 5 mm panel thickness
Front Seal / Bezel / Approvals IP65 front panel only / black bezel / UL 61010-2-201 / CE / KC / RCM, 0 to +50 C

FAQ for NB7W-TW01B-V1

What is the difference between NB7W-TW01B-V1 and NB7W-TW00B?
Both are 7-inch WVGA Ethernet NB7W HMIs. The TW01B-V1 is the full-feature variant: Ethernet + USB-A host + USB-B slave + COM1 RS-232C + COM2 RS-232C. The TW00B is the stripped variant: Ethernet + USB-B slave + COM1 + COM2 -- no USB-A host, so a memory stick cannot be plugged in for recipe transfer. Pick the TW01B-V1 for a recipe-driven line. Pick the TW00B for a status / alarm panel where the USB-stick function is not needed. Both panels run the same NB-Designer project.
Does the NB7W-TW01B-V1 support Modbus-TCP or only FINS?
It supports both. The built-in Ethernet port runs FINS / UDP and FINS / TCP for native Omron communications to CJ / CP1 / NJ / NX, plus Modbus-TCP for third-party devices. COM1 and COM2 both run RS-232C for Host Link (SYSWAY), NT Link 1:N, Modbus-RTU master / slave, and serial protocol macro via NB-Designer protocol macros. The typical mid-size machine build uses Ethernet FINS to the CJ1 / NJ, COM1 to a barcode reader or Modbus-RTU device, and COM2 to a serial-label printer.
Can the NB7W-TW01B-V1 replace an older NS8 / NS10 HMI?
Yes, with caveats. The NB7W-TW01B-V1 panel cutout is 192.0 x 138.0 mm, which is between the NS8 (8.4-inch, cutout 191.2 x 141.6 mm) and NS10 (10.4-inch, 235.0 x 165.6 mm). A direct panel replacement of an NS10 with an NB7W requires reducer bezel work. Project migration from CX-Designer (NS) to NB-Designer (NB) is not automatic -- the project has to be rebuilt in NB-Designer. Pick the NA5-12W101B-V1 (Sysmac NA series) when the Sysmac Studio / NA Studio programming environment is the standard.
What does the -V1 suffix on the NB7W-TW01B-V1 mean?
The -V1 is a hardware / firmware revision marker for the NB-series. The TW01B and TW01B-V1 share the same datasheet and project compatibility -- a TW01B (non-V1) project loads on a TW01B-V1 without rework, and vice versa. The -V1 is the currently-active catalog entry. The differences are internal firmware features that do not affect the user project; for a panel builder commissioning a new line, the -V1 (or the equivalent non-V1 stock) is the right pick.
