Omron NS5-SQ11-V2 — 5.7" HMI, Ethernet, Ivory
SKU: NS5-SQ11-V2USD 450.00
Omron NS5-SQ11-V2 NS-series 5.7-inch STN color QVGA HMI, 60 MB, Ethernet + RS-232C x 2, 24 VDC. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NS5-SQ11-V2 is a 5.7-inch STN color QVGA programmable terminal from the NS-series V2 platform with built-in Ethernet, manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the Sysmac Studio or NB-Designer project file on a USB drive included. Specifications on this page were checked against Omron's NS-series backlight and screen specification.
The display is a 320 x 240 pixel STN color LCD with 256 displayable colors (32,768 for stored bitmaps). The resistive matrix touch panel reads CX-Designer screens on 60 MB of project memory. The RJ-45 10/100 Base-T Ethernet port connects directly to a CP1L-EM, CP1E with CP1W-CIF41, CJ2, or NJ-series PLC over FINS/TCP or FINS/UDP.

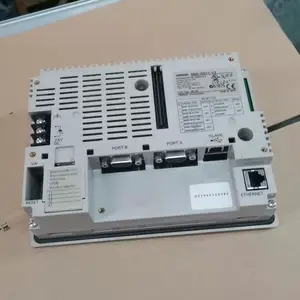

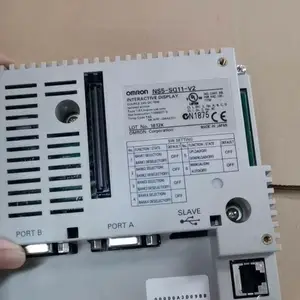

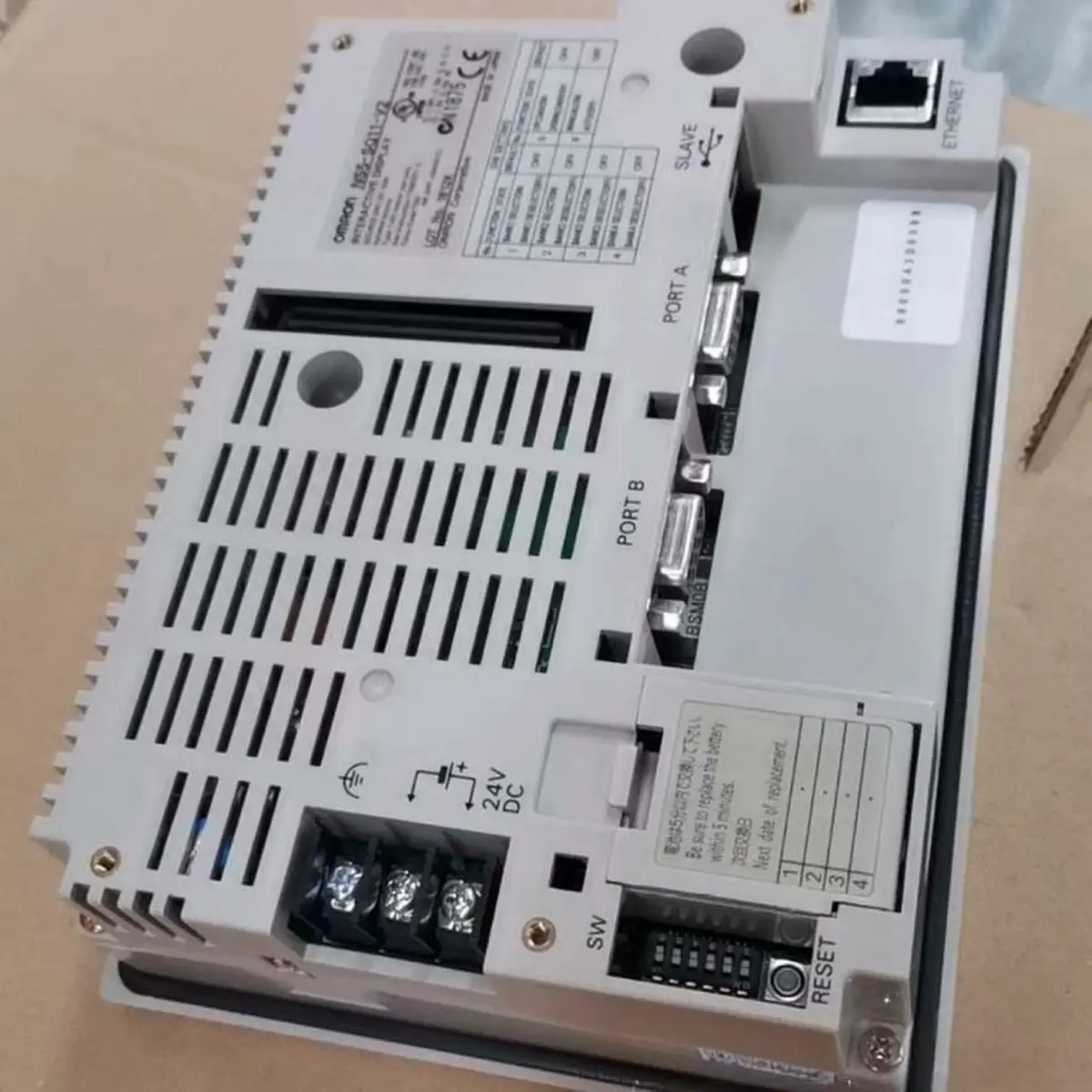

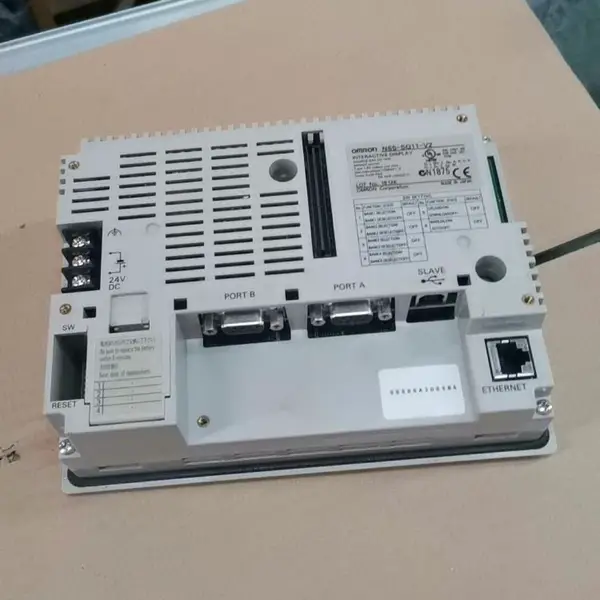

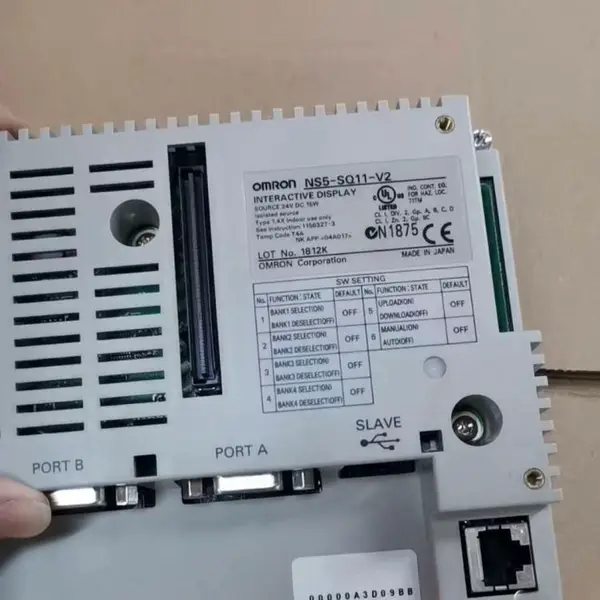

Two D-sub 9-pin serial ports handle Host Link or NT Link on Serial A and a barcode reader on Serial B. A USB Type-B slave port loads CX-Designer projects. Power is 24 VDC; the front face is IP65 / UL Type 4. The unit is discontinued; the modern Sysmac Studio replacement is the NA5-9W001B-V1 on the same 184 x 131 mm panel cutout. The NS5-SQ10-V2 sibling has no network port.
Key Features
- NS-series V2 5.7-inch STN color QVGA display, 320 x 240 pixels, 256 colors, resistive matrix touch panel with 20 x 15 cells
- Built-in 10/100 Base-T Ethernet port for FINS/TCP and FINS/UDP to CP1L-EM, CJ2, and NJ-series PLCs over Sysmac Studio or CX-Designer
- 60 MB project memory for full screen sets, alarm logs, recipes, and bitmaps, with a USB Type-B slave port for CX-Designer upload / download
- Two D-sub 9-pin RS-232C serial ports (Host Link / NT Link on Serial A, secondary on Serial B), 24 VDC supply, IP65 front face
- SKU: NS5-SQ11-V2
- Series: Omron NS-series V2 programmable terminal (PT) / HMI
- Voltage: 24 VDC
Best-Fit Applications
- Operator panel on a small packaging line where two units pair with a CP1L-EM30DT-D over Ethernet FINS/TCP
- Spare replacement on a bottling line where the previous NS5-SQ10-V2 is upgraded to add Ethernet without changing the panel cutout
- Recipe-selection terminal on a multi-zone oven where the operator scans a barcode on Serial B and the recipe opens over Ethernet to the NJ-series PLC
Buying Checklist
- Pick the NS5-SQ11-V2 for a 5.7-inch NS-series HMI with 320 x 240 STN color, Ethernet, and 60 MB project memory on an ivory bezel.
- Pick the NS5-SQ10-V2 instead when the panel only needs RS-232C serial to a CP1E or CP1L PLC and does not need Ethernet.
- Pick the NA5-9W001B-V1 instead when the install needs the modern Sysmac Studio replacement with Ethernet on the same 184 x 131 mm cutout.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NS-series V2 programmable terminal (PT) / HMI |
| Model / SKU | NS5-SQ11-V2 |
| Display | 5.5.7-inch high-luminance colour TFT LCD, 320 x 240 pixel QVGA, 256 displayable colors (32,768 for stored bitmaps), LED backlight rated 75,000 hours |
| Touch Panel | Resistive matrix touch, 20 x 15 cells, 16 x 16 dots per cell, 1,000,000 touch operations |
| Project Memory | 60 MB for screens, alarm logs, recipes, bitmaps, and ladder monitor data |
| Ethernet Port | 10/100 Base-TX RJ-45 for FINS/TCP and FINS/UDP to CP1L-EM / CP1E with CIF41 / CJ2 / NJ / NX-series |
| Serial Ports | Serial A D-sub 9-pin RS-232C (Host Link / NT Link); Serial B D-sub 9-pin RS-232C (barcode / downstream) |
| USB Port | USB Type-B slave for CX-Designer project upload / download |
| Power Supply | 24 VDC at 20.4 to 27.6 VDC allowed, approx. 15 W max consumption |
| Panel Cutout | 184 mm wide x 131 mm high (per Omron NS5 installation guide) |
| Dimensions / Weight | 195 (W) x 142 (H) x 49 (D) mm outer body, approximately 1.0 kg, IP65 / UL Type 4 front face, 0 to +50 C operating, CX-Designer, discontinued |
FAQ for NS5-SQ11-V2
What is the Omron NS5-SQ11-V2 used for?
It is the NS-series V2 5.7-inch STN color QVGA HMI with built-in 10/100 Base-T Ethernet. It runs CX-Designer screens on 60 MB of project memory and talks to the host PLC over Ethernet (FINS/TCP or FINS/UDP) and over RS-232C (Host Link / NT Link on Serial A). The resistive touch panel and IP65 front face suit typical operator-panel duty on packaging, bottling, and material-handling machines.
NS5-SQ11-V2 vs NS5-SQ10-V2 - what is the difference?
Both share the same 5.7-inch STN color 320 x 240 body, 60 MB project memory, ivory bezel, and 184 x 131 mm panel cutout. The -SQ11 version adds a 10/100 Base-T Ethernet port for FINS/TCP and FINS/UDP to the host PLC. The -SQ10 has two RS-232C serial ports only. Pick the -SQ11 for Ethernet wiring to a CP1L-EM, CJ2, or NJ-series PLC; pick the -SQ10 for legacy Host Link wiring to a CP1E or CP1L.
Does the NS5-SQ11-V2 have a USB port?
Yes. The NS5-SQ11-V2 has a USB Type-B slave port for CX-Designer project upload and download. It does not have a USB host port for USB memory sticks; for that, pick the NB-series (NB3Q-TW01B) or NA5-series Sysmac Studio replacement.
Is the NS5-SQ11-V2 still in production?
No. The NS5-SQ11-V2 is discontinued by Omron. Existing CX-Designer screens migrate to the NA5-9W001B-V1 (9-inch widescreen) or NB7W-TW00B (7-inch WQVGA) via the CX-Designer migration tool. As a lower-cost drop-in for the same 184 x 131 mm cutout, the NS5-SQ11-V2 is still widely available through surplus and authorized distributors.
What PLCs talk to the NS5-SQ11-V2 over Ethernet?
Any Omron PLC with a built-in 10/100 Base-T Ethernet port: CP1L-EM, CP1L-EL, CP1E-NA with CP1W-CIF41, CJ2H-CPU6@-EIP, CJ2M-CPU3@3, NJ101, NJ301, NJ501, NX102, and NX502. Set the NS5 Ethernet node address in the CX-Designer project to match the PLC FINS node, then connect with FINS/TCP or FINS/UDP from the CX-Designer PT Setup dialog.
