Omron NX-ID4342 — front face of the 12 mm-wide NX digital input unit showing the green TS / 0-7 input-status LED column, the row of 16 screwless push-in input terminals with white marker strips and the NX-ID4342 type label at the lower-right

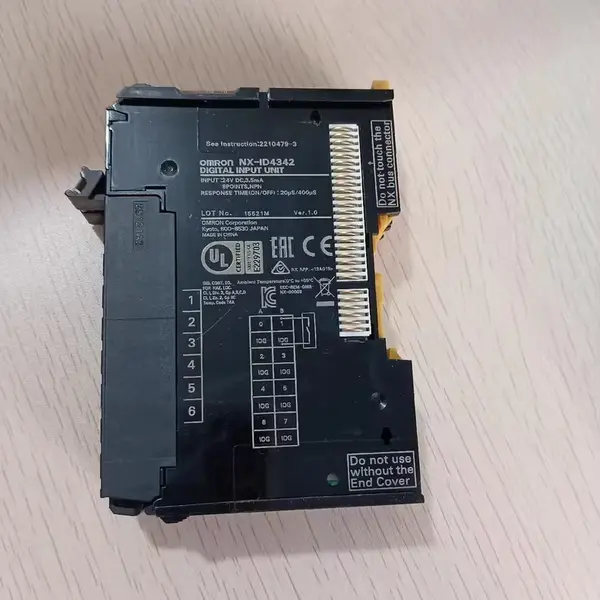

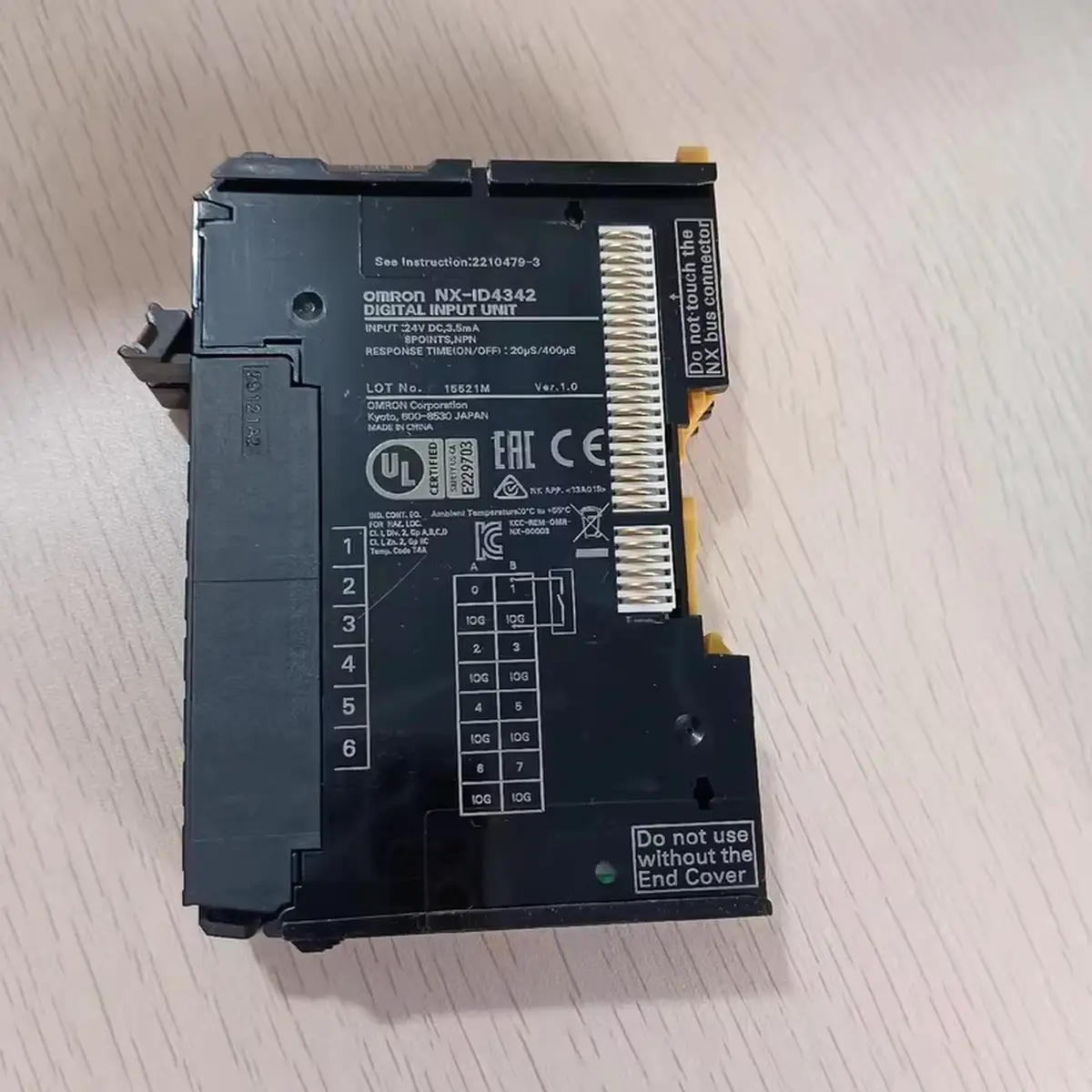

Omron NX-ID4342 — 8-Point NPN DC Input, 12 mm

SKU: NX-ID4342

USD 52.00

Omron NX-ID4342 NX digital input, 8 points, NPN, 24 VDC, screwless push-in, 12 mm wide. In stock, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron NX-ID4342 is an 8-point NPN DC input unit from the NX-series I/O family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).

The unit scans 8 inputs at 24 VDC (15 to 28.8 VDC permitted) with 3.5 mA typical input current per point. ON threshold is 15 VDC at 3 mA minimum; OFF threshold is 5 VDC at 1 mA maximum. ON / OFF response time is 20 microseconds max / 400 microseconds max. I/O refreshing is selectable between Synchronous I/O and Free-Run on the host coupler.

The 12 mm wide housing uses a 16-point screwless clamping terminal block and weighs 90 g. Power is drawn from the NX bus; the IOG terminal is rated 0.1 A per terminal. The NX-ID4442 is the matching PNP version; the NX-ID5342 is the 16-point NPN on the same 12 mm body. Programming is in Sysmac Studio.

Key Features

  • NX-series DC input unit, 8 points, NPN internal I/O common, 24 VDC rated (15 to 28.8 VDC permitted)
  • 20 us / 400 us ON / OFF response, selectable Synchronous I/O or Free-Run refreshing, programmable input filter
  • Screwless clamping terminal block, 16 terminals, 12 (W) x 100 (H) x 71 (D) mm, 90 g, IP20
  • Photocoupler isolation, 510 VAC dielectric strength, power drawn from NX bus, no I/O supply current draw
  • SKU: NX-ID4342
  • Series: Omron NX-series digital I/O unit (NX-ID)
  • Voltage: 24 VDC

Best-Fit Applications

  • Sensor aggregator on a high-speed filling line where 8 PNP-style retro-reflective sensors feed an NPN input unit on an NX102 CPU with synchronous I/O refreshing
  • Spare replacement on a packaging machine where the existing NX-ID4442 PNP board needs an NPN sibling for a new photo-eye bank at the infeed conveyor
  • Discrete I/O expansion on an NX1P2 cell that needs 8 sink cells per NX unit for prox switches on a rotary index table

Buying Checklist

  • Pick the NX-ID4342 for an 8-point NPN DC input unit on a 12 mm wide NX housing with 20 us ON response.
  • Pick the NX-ID4442 instead when the wiring is PNP sourcing from 24 VDC sensors with the same 8-point count and 12 mm body.
  • Pick the NX-ID3417 instead when only 4 PNP inputs are needed and the cabinet has tighter spacing constraints on the NX bus.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron NX-series digital I/O unit (NX-ID)
Model / SKU NX-ID4342
Function DC input unit, 8 points
Internal I/O Common NPN
Rated Input Voltage 24 VDC (15 to 28.8 VDC permitted)
Input Current 3.5 mA typical at 24 VDC
ON / OFF Threshold ON 15 VDC min / 3 mA min, OFF 5 VDC max / 1 mA max
ON / OFF Response 20 us max ON / 400 us max OFF
I/O Refreshing Selectable Synchronous I/O refreshing or Free-Run refreshing
Connection / Isolation Screwless clamping terminal block, 16 terminals, photocoupler isolation, 510 VAC dielectric
Environment / Mounting 12 (W) x 100 (H) x 71 (D) mm, 90 g, IP20, 0 to 55 C, 10 to 95% RH non-condensing, free from corrosive gases

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for NX-ID4342

What is the Omron NX-ID4342 used for?
It is an 8-point NPN DC input unit for the NX-series I/O bus. The unit reads 24 VDC sink signals from sensors or switches and reports them to the host NX102 / NX1P2 CPU or NX-ECC EtherCAT coupler at 20 us ON response.
NX-ID4342 vs NX-ID4442 - what is the difference?
The NX-ID4342 is the NPN version. The NX-ID4442 is the PNP version with the same 8-point count, same 12 mm housing, same 20 us response. Pick the 4342 for sensors that pull to 0 V and the 4442 for sensors that source 24 VDC.
Does the NX-ID4342 need an external I/O power supply?
No. The unit draws all of its operating current from the NX bus and consumes no current from the I/O power supply terminal. The IOG terminal still serves as the 0 V reference for the input field wiring.
How fast is the NX-ID4342 input response?
20 microseconds max ON and 400 microseconds max OFF. The 400 us OFF time can be lengthened by selecting a longer input filter in Sysmac Studio (0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128 or 256 ms).
Can the NX-ID4342 be used on an EtherCAT coupler?
Yes. The unit mounts on any NX-ECC201 / NX-ECC202 / NX-ECC203 EtherCAT coupler or any NX102 / NX1P2 CPU. On a coupler, installation in 6 orientations is supported; on a CPU only upright installation is permitted.
