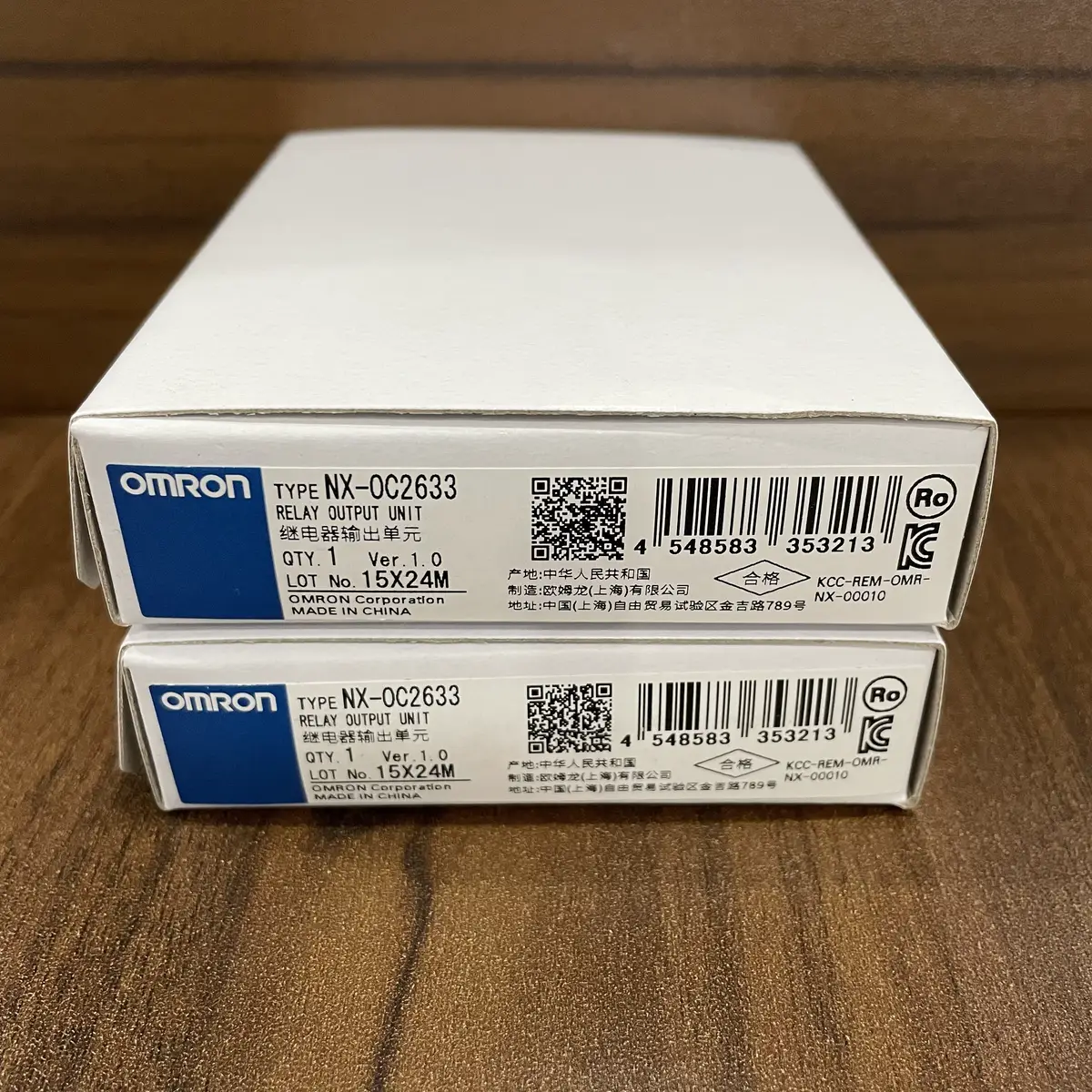

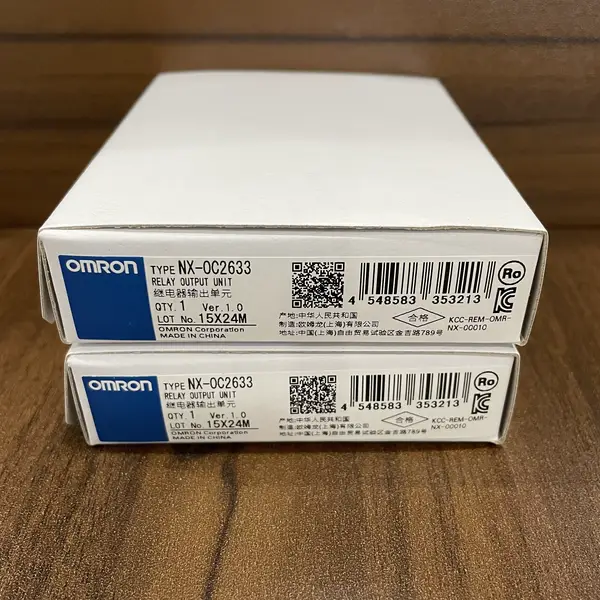

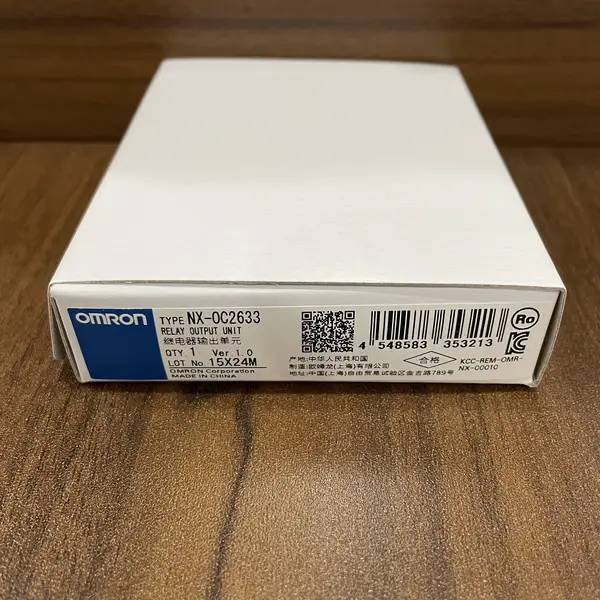

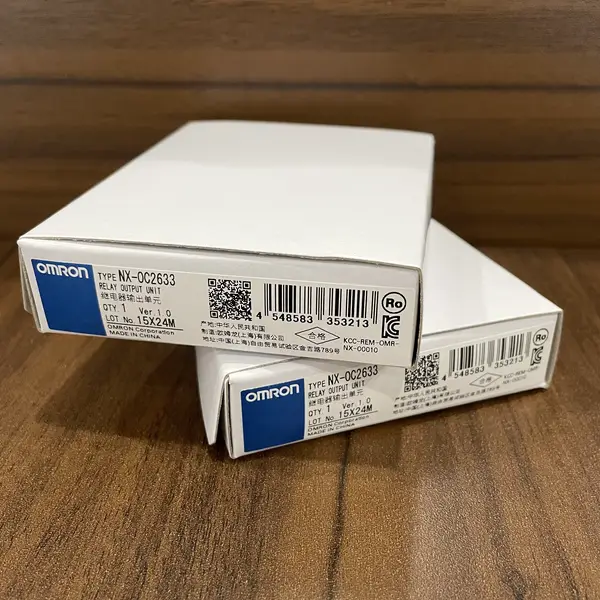

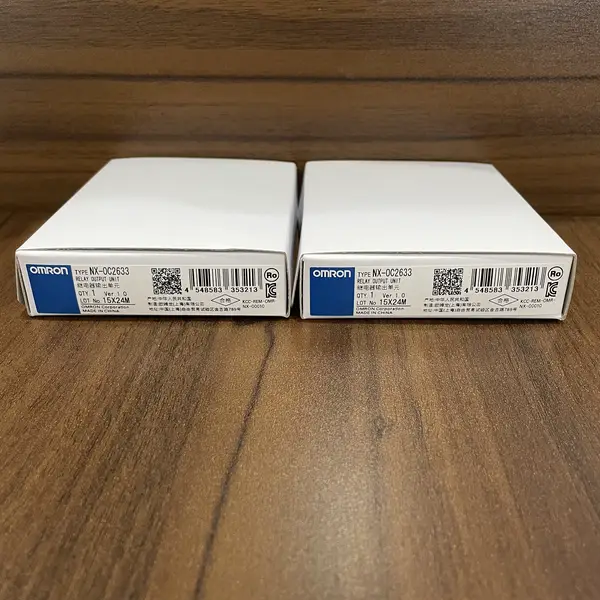

Omron NX-OC2633 — NX 2-Point Relay Output, 2 A
SKU: NX-OC2633USD 115.00
Omron NX-OC2633 NX-series 2-point relay NO output slice, 250 VAC 2 A, 12 mm wide. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-OC2633 is the NX-series 2-point Relay NO output unit, manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
It sits on the NX I/O bus and gives two normally-open relays on independent contacts (A1/B1 and A3/B3), so each point can switch a different load at a different voltage. Maximum switching is 250 VAC at 2 A or 24 VDC at 2 A per point. Each unit handles 4 A total. Minimum load is 5 VDC at 1 mA. Electrical life 100,000 operations; mechanical 20,000,000 operations. Relay is NOT user-replaceable.
ON / OFF response is 15 ms each way. Isolation 2300 VAC for 1 minute between the two contact groups. The slice is 12 mm wide, 65 g. SIL None - not for safety. For 16-point PNP transistor outputs choose NX-OD5256. For 32-point PNP on a 30 mm body choose NX-OD6256-5.
Key Features
- NX-series 2-point Relay NO output unit on independent contacts (A1/B1 and A3/B3), 250 VAC 2 A per point / 4 A per unit
- Switches AC and DC loads, 5 VDC 1 mA minimum load, 100,000 electrical / 20,000,000 mechanical operations
- 15 ms ON / 15 ms OFF response, 2300 VAC isolation between the two contact groups for 1 minute
- Screwless clamping 8-terminal connector, 12 x 100 x 71 mm, 65 g, Free-Run refreshing, NX unit power 1.20 W max on CPU
- SKU: NX-OC2633
- Series: NX-series Digital I/O Unit (NX-OC family) on NX I/O Bus and EtherCAT Coupler
Best-Fit Applications
- Switching a 230 VAC heating jacket and a 24 VDC solenoid valve on the same packaging line, one contact each
- Dry-contact alarm output driving a beacon and a horn from two independent NO contacts isolated to 2300 VAC
- Spare replacement for an NX-OC2633 that failed after end of electrical service life on an NX-ECC201 EtherCAT Coupler with an NJ501-1300 Sysmac CPU
Buying Checklist
- Pick the NX-OC2633 when the project needs two isolated normally-open relay outputs on a 12 mm wide NX I/O slice and the load voltage differs between points.
- Pick the NX-OC2733 instead when the wiring plan calls for A1/3, B1/3 terminal marking instead of the A1/B1, A3/B3 layout of the OC2633.
- Pick the NX-OD5256 instead when 16 sourcing PNP transistor channels at 0.5 A are enough and no relay isolation is needed.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series Digital I/O Unit (NX-OC family) on NX I/O Bus and EtherCAT Coupler |
| Model / SKU | NX-OC2633 |
| Number of Outputs | 2 points, independent N.O. contacts (A1/B1 and A3/B3) |
| Maximum Switching | 250 VAC / 2 A at cos phi = 1; 250 VAC / 2 A at cos phi = 0.4; 24 VDC / 2 A per point; 4 A per unit |
| Minimum Switching | 5 VDC, 1 mA |
| Relay Service Life | Electrical 100,000 operations (depends on load); mechanical 20,000,000 operations; relay NOT user-replaceable |
| Response Time | 15 ms ON / 15 ms OFF maximum |
| Isolation | 2300 VAC for 1 minute between A1/B1 and A3/B3 contact groups; 510 VAC between internal circuit and GR |
| Connection / Power | Screwless clamping 8-terminal connector; I/O power from external source (not from NX bus); NX unit power 1.20 W on CPU, 0.80 W on Coupler |
| Refresh / Diagnostics | Free-Run refreshing; standard speed; no disconnection detection; no short-circuit detection; SIL None (not for safety) |
| Dimensions / Approvals | 12 (W) x 100 (H) x 71 (D) mm; 65 g; IP20; CE, cULus, RCM, KC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-OC2633
What is the Omron NX-OC2633 used for?
It is the NX-series 2-point Relay NO output slice for the NX I/O bus. Typical uses are switching a 230 VAC heating jacket and a 24 VDC solenoid valve from the same rack, firing a beacon and a horn from two independent dry contacts, and replacing an NX-OC2633 that has reached end of electrical service life on an existing EtherCAT Coupler.
NX-OC2633 vs NX-OD5256 - what is the difference?
The NX-OC2633 has two N.O. relay contacts that switch AC or DC up to 250 VAC at 2 A, with 2300 VAC isolation between the two contact groups. The NX-OD5256 has 16 PNP transistor outputs at 0.5 A per point that switch 24 VDC only, no galvanic isolation. Pick the OC2633 for mixed AC/DC loads on a small slice; pick the OD5256 when you need many 24 VDC outputs at high cycle rate.
Is the relay in the NX-OC2633 replaceable?
No. The relay is sealed inside the slice and is not user-replaceable. Electrical life is 100,000 operations (varies with the load current; lighter loads last longer). Mechanical life is 20,000,000 operations. Replace the whole slice when the contacts reach end of service life; Sysmac Studio does not flag this automatically.
Is the NX-OC2633 suitable for safety circuits?
No. The NX-OC2633 is marked SIL None and is not for safety functions. For an emergency-stop relay or a safety door switch on an NX-SL3300 / NX-SL3500 safety controller, use the G9SA-301 AC-DC24 safety relay or the NX-SOD400 safety output unit.
