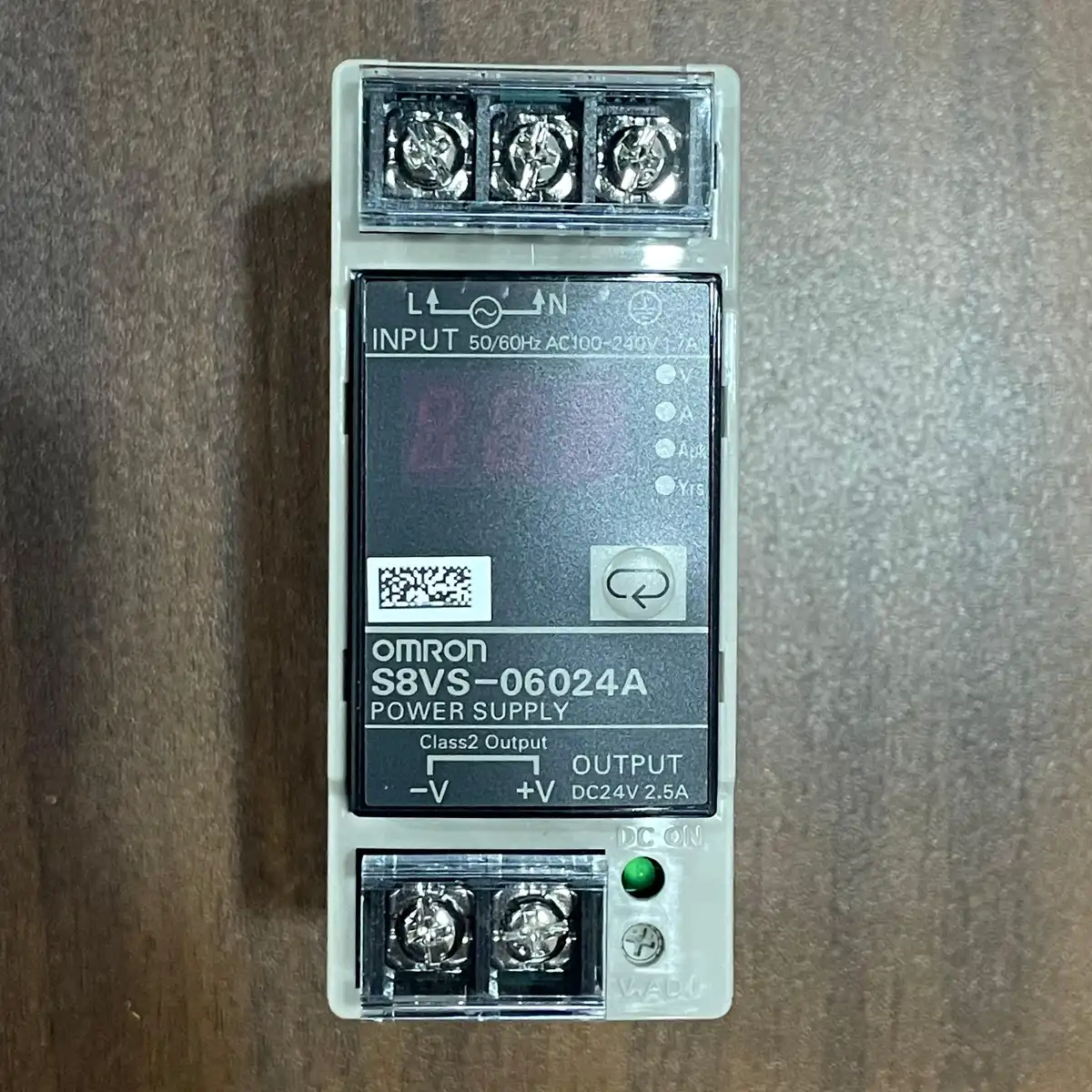

Omron S8VS-06024A — DC Power Supply
SKU: S8VS-06024AUSD 99.00
S8VS-series 60 W 24 VDC / 2.5 A DIN-rail switch-mode power supply with built-in indication monitor (output voltage, output current, peak-hold current, maintenance forecast %, total run time). 100-240 VAC input, 85% efficiency, Class 2 (UL 1310), 3 kVAC isolation.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The S8VS-06024A is Omron's 60 W 24 VDC / 2.5 A DIN-rail switch-mode power supply with the indication monitor feature (the 'A' suffix), the smaller sibling of the already-done S8VS-12024 (120 W). The 60 W rating is the workhorse class for small-to-medium PLC panels, sensor junction boxes, and DeviceNet sub-networks — sufficient to power a CP1L-EM40DT1-D PLC (already done) plus 30+ digital I/O modules, or a 16-device DeviceNet network with 4 × CJ1W-DRM21 masters.
Why the maintenance forecast display matters
The S8VS-06024A's most unique feature is the maintenance forecast function, which monitors the electrolytic capacitor's aging (the most common failure mode for switch-mode power supplies) and displays the remaining lifetime as a percentage. The display updates in real-time based on the actual operating temperature and load profile — at 25 °C ambient and 50% load, the expected lifetime is 15+ years; at 50 °C ambient and 100% load, the lifetime drops to 5-7 years. The maintenance forecast output (transistor output) signals 'replace now' when the lifetime reaches 50% (typically 7-10 years in normal operation).
S8VS-06024A vs S8VS-06024 (no monitor) vs S8VK-G06024 (modern replacement)
The S8VS family is Omron's mature DIN-rail PSU line, with the S8VS-06024A being the monitored variant. Three main options at 60 W / 24 VDC: - S8VS-06024 (no 'A' suffix) — same 60 W 24 VDC output, no display, lower cost. The right pick for OEM high-volume applications where the display isn't needed. - S8VS-06024A (this SKU) — same 60 W 24 VDC output, with display. The right pick for industrial control panels where predictive maintenance is required. - S8VK-G06024 — Omron's newer S8VK-G series with 5-year warranty, similar specs, no display.
Class 2 output and parallel / series operation
The S8VS-06024A is UL 1310 Class 2 compliant — the output is power-limited to 100 VA / 5 A, which allows the wiring to be Class 2 cable (lower cost than non-Class 2) and exempts the installation from some NEC requirements. For 60 W at 24 VDC, the output is 2.5 A — well under the Class 2 limit. For parallel operation (two PSUs sharing a load for redundancy), the S8VS-06024A does NOT support true parallel — the foldback current-sharing characteristic of the PSU causes one unit to take more load than the other.
Key Features
- S8VS-series 60 W 24 VDC / 2.5 A DIN-rail switch-mode power supply
- Output: 24 VDC ±2%, 2.5 A continuous, 60 W
- Input: 100-240 VAC single-phase, 50/60 Hz
- Efficiency: 83% typ at 100 VAC, 85% typ at 200 VAC
- Ripple: 90 mV max
- Static line regulation: 0.5% max
- Static load regulation: 1.5% max
- Temperature coefficient: 0.05%/°C max
- SKU: S8VS-06024A
- Series: S8VS DIN-rail Switch-Mode Power Supplies
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Small PLC control panel — power supply for a CP1L-EM40DT1-D PLC plus 4-5 expansion I/O modules plus a 5.7-inch NB5Q-TW01B.
- Sensor junction box on a packaging line — 24 VDC / 2.5 A power for 16-20 photoelectric sensors plus 4.
- DeviceNet sub-network power — 24 VDC power for a 16-30 DeviceNet slave network; the S8VS-06024A's 2.5 A is sufficient for.
- Small HMI station — 24 VDC power for an NS3 / NB-series HMI plus 8-16 digital I/O plus indicator lights.
Buying Checklist
- Pick S8VS-06024A for 60 W 24 VDC PSU with maintenance forecast display — predictive maintenance, industrial 4.0 applications
- Pick S8VS-06024 for 60 W 24 VDC PSU without display — lower cost for OEM applications where display not needed
- Pick S8VK-G06024 for 60 W 24 VDC PSU with 5-year warranty — recommended replacement for new installations
- Pick S8VS-12024 for 120 W 24 VDC PSU — larger panels with more 24 VDC load
- Pick S8VK-G12024 for 120 W 24 VDC PSU with 5-year warranty — modern replacement for S8VS-12024
- Pick S8VS-09024 for 90 W 24 VDC PSU — middle size between 60 W and 120 W
Technical Specifications
| Model | S8VS-06024A |
|---|---|
| Series | S8VS DIN-rail Switch-Mode Power Supplies |
| Type | 60 W 24 VDC / 2.5 A PSU with indication monitor (A-suffix) |
| Power Rating | 60 W continuous |
| Output Voltage | 24 VDC (adjustable -10 to +15% via V.ADJ trimmer) |
| Output Current | 2.5 A continuous |
| Output Voltage Tolerance | ±2% (24 VDC ±0.48 V at rated load) |
| Output Voltage Adjustable Range | -10 to +15% (21.6 to 27.6 VDC) |
| Rated Input Voltage | 100 to 240 VAC (single-phase) |
| Operating Input Voltage Range | 85 to 264 VAC |
| Input Frequency | 50/60 Hz (47-63 Hz) |
| Inrush Current | 25 A max at 100 VAC, 50 A max at 200 VAC (cold start at 25 °C) |
| Temperature Coefficient | 0.05%/°C max |
| Overcurrent Protection | 105-120% of rated (auto-recovery, foldback) |
| Overvoltage Protection | Yes (latch; re-cycle input to reset) |
Resources & Downloads
FAQ for S8VS-06024A
What's the difference between S8VS-06024A and S8VS-06024?
Both are 60 W 24 VDC / 2.5 A DIN-rail switch-mode power supplies with the same electrical specifications (100-240 VAC input, 85% efficiency, 33 ms hold-up, Class 2 output).
How does the maintenance forecast function work on the S8VS-06024A?
The maintenance forecast function monitors the electrolytic capacitor's aging, which is the most common failure mode for switch-mode power supplies. The function uses a combination of internal temperature sensors and load-current monitoring to estimate the cap's remaining lifetime, which is displayed as a percentage (100% = new, 50% = replace now, 0% = end of life). The estimate is based on the Arrhenius equation for electrolytic cap aging — every 10 °C increase in operating temperature halves the cap life.
Can I parallel two S8VS-06024A power supplies for redundancy?
The S8VS-06024A does NOT support true parallel operation — the foldback current-sharing characteristic causes one unit to take more load than the other, leading to premature failure of the heavily-loaded unit. For redundant operation (where one PSU takes over if the other fails), use the S8VK-R10 redundancy module (diode OR'ing) between the PSUs and the load. Each PSU operates at <50% load in normal operation, and if one PSU fails, the other takes the full load.
Is the S8VS-06024A UL 1310 Class 2 compliant?
Yes — the S8VS-06024A is UL 1310 Class 2 compliant, meaning the output is power-limited to 100 VA / 5 A. For 60 W at 24 VDC, the output is 2.5 A — well under the Class 2 limit. The Class 2 compliance allows the wiring to be Class 2 cable (lower cost than non-Class 2) and exempts the installation from some NEC requirements.
