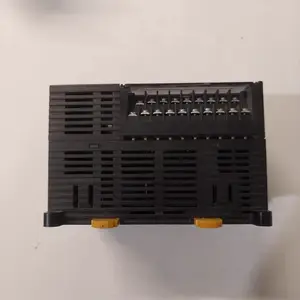

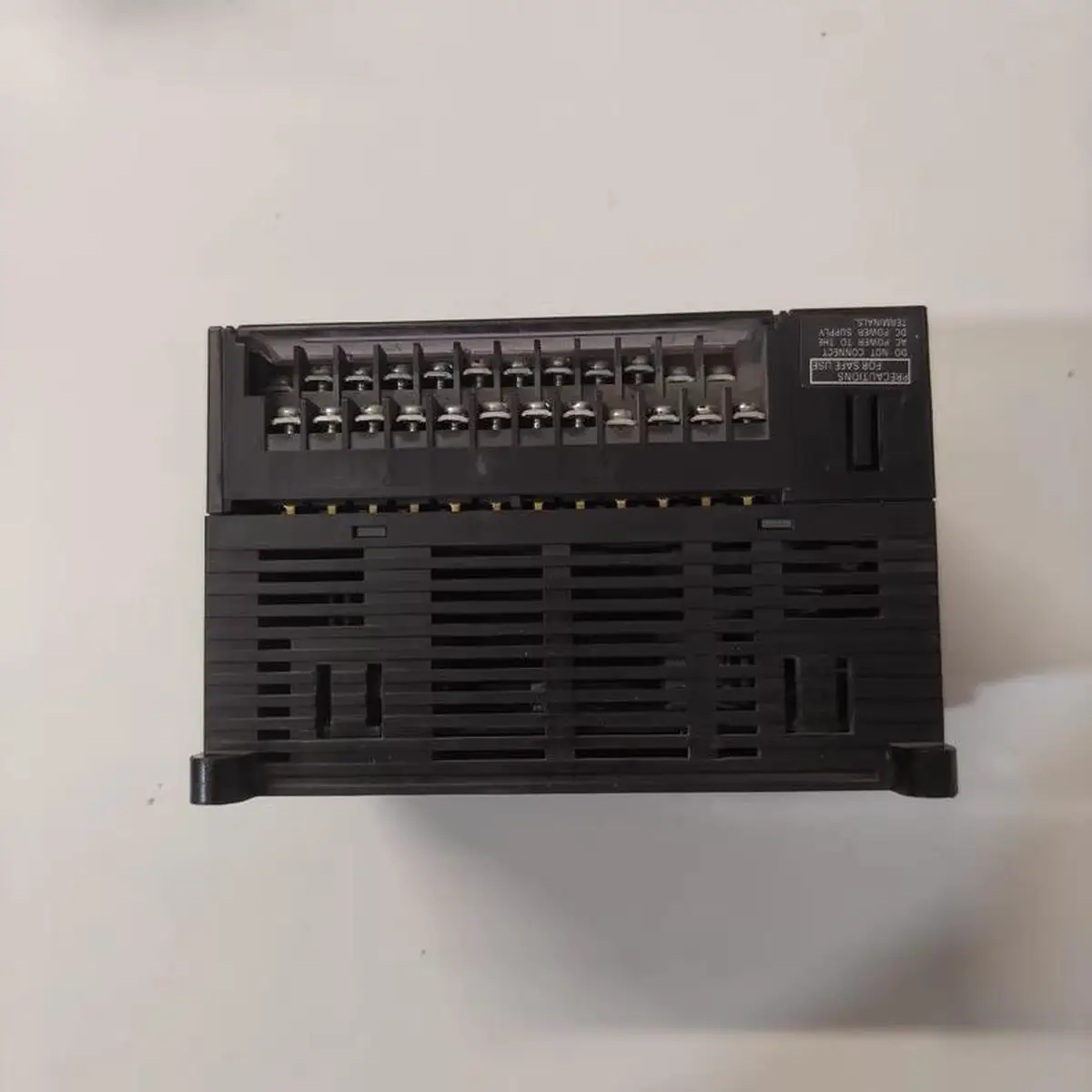

Omron CP1L-M30DT1-D — CP1L PLC, 18 I/O, PNP
SKU: CP1L-M30DT1-DUSD 170.00
Omron CP1L-M30DT1-D CP1L compact PLC, 18 inputs, 12 PNP outputs, 24 VDC, USB. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1L-M30DT1-D is a compact DC-powered PLC from the CP1L M-series, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The unit ships with 18 DC inputs and 12 PNP sourcing transistor outputs on a 24 VDC supply. Program capacity is 10 K steps, data memory 32 K words, and logic execution runs at 0.55 microseconds per instruction. The only built-in programming port is a USB 1.1 socket; Ethernet and RS-232 / RS-485 come from option boards such as the CP1W-CIF01, CP1W-CIF11, or CP1W-CIF41.
High-speed inputs cover four channels / two axes at 100 kHz single-phase or 50 kHz differential. Outputs drive two pulse streams up to 100 kHz and two PWM channels up to 32.8 kHz. Up to three CP-series expansion units can be attached for 160 max I/O. Omron publishes a 2027-06-30 production end for CP1L-M40DT-D; confirm the date for this specific variant with Omron before ordering against it. For an Ethernet-ready sibling, pick the CP1L-EM30DT-D.
Key Features
- CP1L M-series compact PLC, 18 DC inputs / 12 PNP sourcing transistor outputs, 24 VDC supply
- 10 K-step program, 32 K-word data memory, 0.55 us logic execution, USB 1.1 programming port
- Four 100 kHz high-speed counters, two 100 kHz pulse outputs, two 32.8 kHz PWM outputs
- Up to three CP-series expansion units, 160 max I/O points, real-time clock and battery-free flash backup
- SKU: CP1L-M30DT1-D
- Series: Omron CP1L M-series DC compact PLC
- Voltage: 24 VDC
Best-Fit Applications
- Stand-alone filling-and-capping machine where the M30 drives twelve solenoid valves and reads eighteen sensor inputs over USB programming
- Small-format conveyor oven where the M30 set-points are flashed from a CP1W-ME05M cassette on recipe change
- Spare replacement on a packaging line where an existing CP1L-M30DT1-D was running on discontinued firmware
Buying Checklist
- Pick the CP1L-M30DT1-D for a 30-I/O DC-powered CP1L PLC with 12 sourcing outputs and a USB programming port.
- Pick the CP1L-M30DR-A instead when the panel needs relay outputs rather than PNP transistors.
- Pick the CP1L-EM30DT-D instead when the cabinet needs built-in Ethernet on top of the USB port.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1L M-series DC compact PLC |
| Model / SKU | CP1L-M30DT1-D |
| Power Supply | 24 VDC (20.4 to 26.4 VDC) |
| Inputs / Outputs | 18 DC inputs / 12 PNP sourcing outputs |
| Program Capacity | 10 K steps program, 32 K-word data memory |
| Logic Execution | 0.55 us per instruction |
| Programming Port | USB 1.1 (no Ethernet / RS-232 / RS-485 built in) |
| High-Speed Counters | 4 channels / 2 axes, 100 kHz single-phase, 50 kHz differential |
| Pulse / PWM Outputs | 2 pulse outputs up to 100 kHz, 2 PWM outputs up to 32.8 kHz |
| Expansion | Up to 3 CP-series expansion units, 160 max I/O |
| Dimensions / Weight | 130 (W) x 90 (H) x 85 (D) mm, 495 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1L-M30DT1-D
What is the Omron CP1L-M30DT1-D used for?
It is a compact DC-powered PLC for small machines and OEM panels. The 18 inputs and 12 PNP outputs drive solenoid valves, motor starters, and indicator lamps on packaging, filling, and conveyor equipment.
Does the CP1L-M30DT1-D have built-in Ethernet?
No. The only built-in programming port is a USB 1.1 socket. For Ethernet, drop in a CP1W-CIF41 option board in either of the two option-board slots on the CPU.
How many option boards fit the CP1L-M30DT1-D?
Two. CP1L M-series takes one option board in Slot 1 and another in Slot 2. Common pairings are CP1W-CIF01 (RS-232C) plus CP1W-CIF11 (RS-422 / RS-485), or CP1W-CIF41 (Ethernet) plus a CIF01.
Is the CP1L-M30DT1-D being discontinued?
Yes, the CP1L M-series is scheduled for end of production on 2027-06-30 per the Omron EU notice. The recommended migration is the CP2E-N30DT-D for similar I/O count.
Can the CP1L-M30DT1-D expand past 30 I/O?
Yes. Up to three CP-series Expansion I/O Units can attach to the CPU for a maximum of 160 local I/O points (30 built-in plus up to 40 per expansion).
