Omron XW2Z-100K — 1 m MIL40 Cable, Shielded
SKU: XW2Z-100KUSD 39.00
1 m shielded MIL40-to-MIL40 cable for CJ1 I/O and XW2 conversion units. In stock, China.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

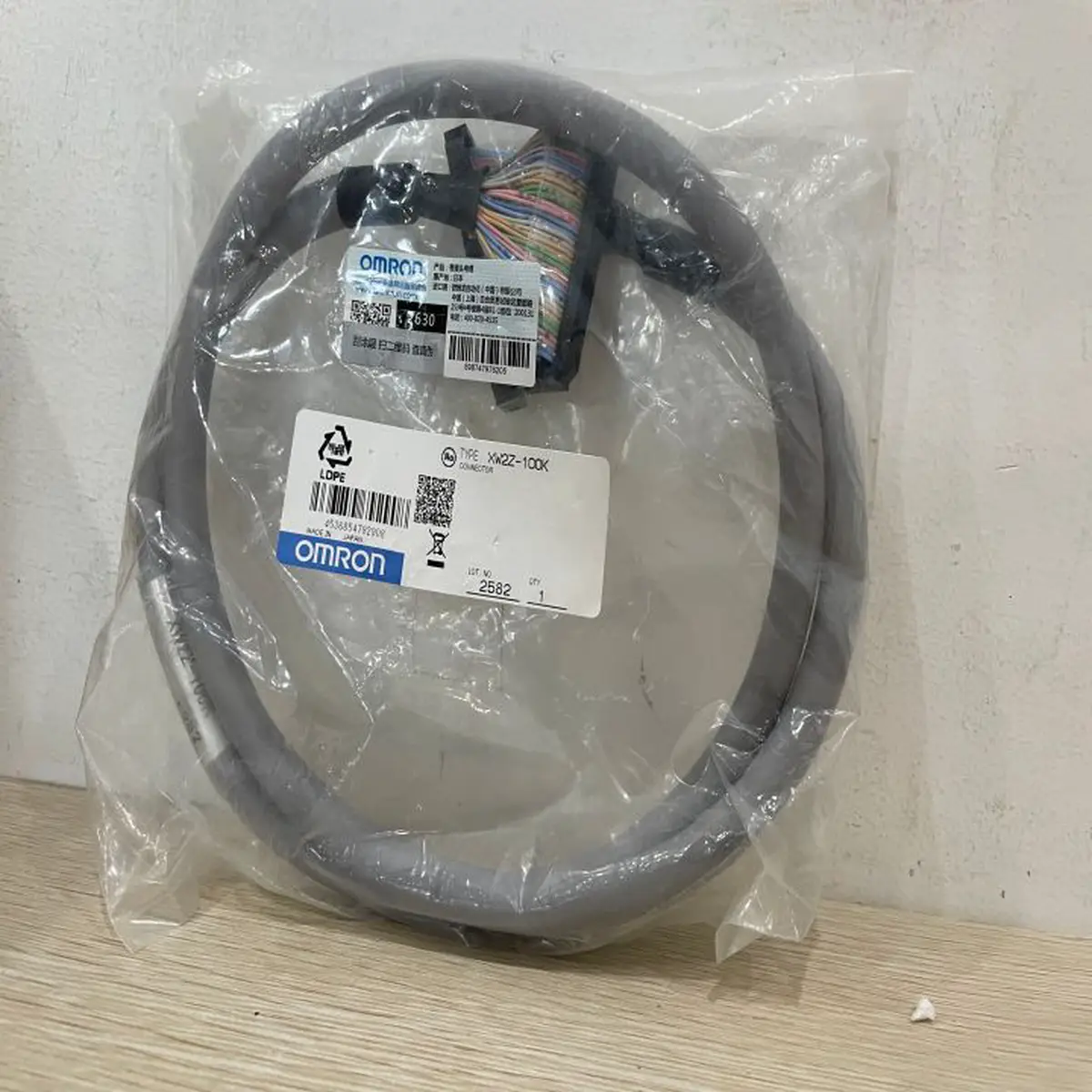

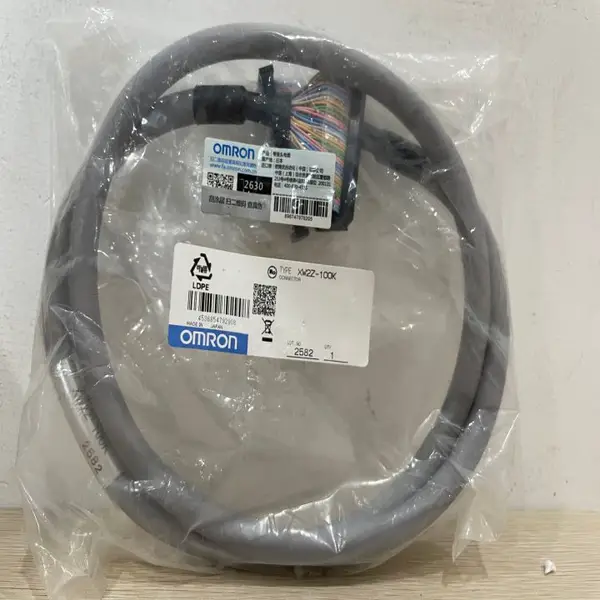

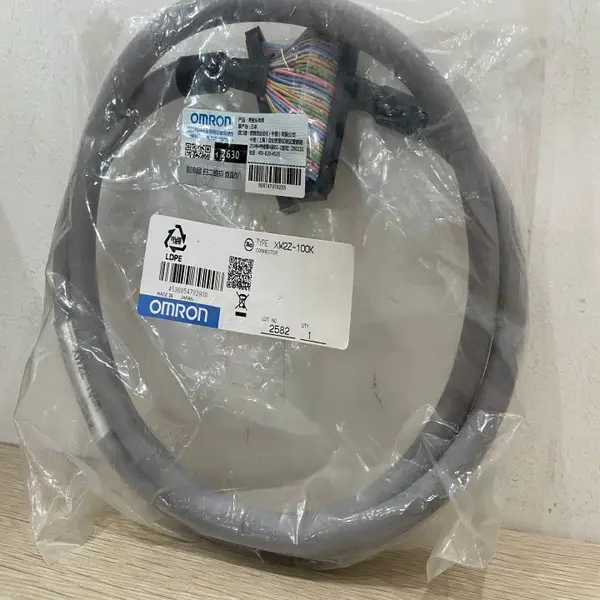

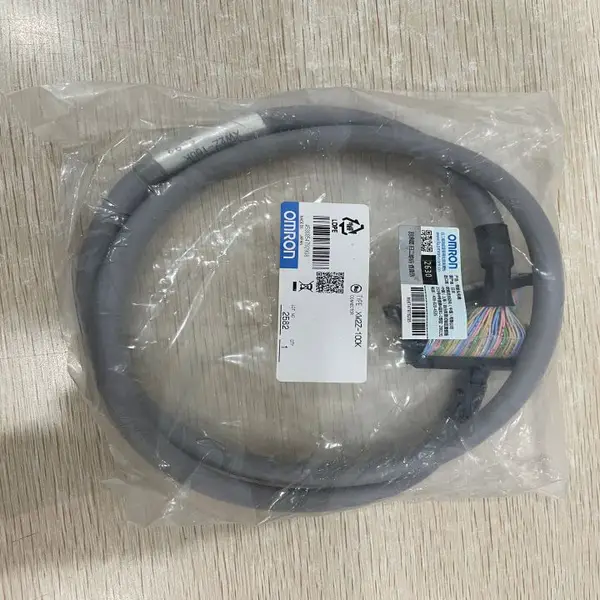

The Omron XW2Z-100K is a 1 metre shielded connecting cable with two 40-pin MIL connectors (XG4M-4030-T on each end) It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box. It is the standard 1:1 pin-matched wiring lead between XW2-series connector-terminal block conversion units (XW2K, XW2R) and CJ1-series 32-point I/O modules such as the CJ1W-OD232, CJ1W-OD262, CJ1W-ID232 and CJ1W-ID262. Rated 1 A at 125 VAC or 30 VDC with 500 VAC dielectric strength and 100 Mohm insulation resistance. The 1 m length suits short PLC-to-terminal-block runs in compact panels; for 2 m or 5 m, choose the XW2Z-200K or XW2Z-500K. Key specs: Cable Length 1.0 m; Connector Type 1 x 40-pin MIL socket (XG4M-4030-T) on each end, 1:1 pin-matched; Cable Sheath Shielded, polyester resin housing, 10.4 mm outer diameter; Rated Current / Voltage 1 A at 125 VAC or 30 VDC; Insulation / Dielectric 100 Mohm min at 500 VDC; 500 VAC for 1 min; Compatible Units XW2K / XW2R conversion units; CJ1W-OD232 / OD262 / ID232 / ID262; Min Bend Radius 84.
Key Features
- 1 metre shielded MIL40-to-MIL40 connecting cable, XG4M-4030-T connector on each end
- 1:1 pin-matched straight wiring for XW2K / XW2R connector-terminal block conversion units
- Rated 1 A at 125 VAC or 30 VDC; 100 Mohm insulation; 500 VAC dielectric strength for 1 min
- Pairs with CJ1W-OD232, CJ1W-OD262, CJ1W-ID232, CJ1W-ID262 32-point I/O modules
- SKU: XW2Z-100K
- Series: Omron XW2Z-series shielded connecting cables
- Voltage: 125 VAC
Best-Fit Applications
- Wiring a CJ1W-OD232 32-point output module to an XW2R-40D5 screw-terminal conversion unit inside a compact control panel
- Retrofit of an older CS1W-MD261 32-point I/O block to a new XW2 conversion board without changing the field wiring
- Replacing a damaged 1 m cable on a CJ1W-ID262 input module where the panel harness has the matching MIL40 socket
Buying Checklist
- Choose the XW2Z-100K when the panel calls for a 1 m shielded MIL40-to-MIL40 1:1 cable for CJ1 I/O.
- Choose the XW2Z-200K instead when the cabinet needs a 2 m cable between the conversion unit and the I/O module.
- Choose the XW2Z-500K instead when the cabinet needs a 5 m cable run.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron XW2Z-series shielded connecting cables |
| Model / SKU | XW2Z-100K |
| Cable Length | 1.0 m |
| Connector Type | 1 x 40-pin MIL socket (XG4M-4030-T) on each end, 1:1 pin-matched |
| Cable Sheath | Shielded, polyester resin housing, 10.4 mm outer diameter |
| Rated Current / Voltage | 1 A at 125 VAC or 30 VDC |
| Insulation / Dielectric | 100 Mohm min at 500 VDC; 500 VAC for 1 min |
| Compatible Units | XW2K / XW2R conversion units; CJ1W-OD232 / OD262 / ID232 / ID262 |
| Min Bend Radius | 84 mm |
| Operating Temperature | -20 to +75 C (no condensation or icing) |
FAQ for XW2Z-100K
What does the XW2Z-100K connect?
It is a 1:1 pin-matched lead between XW2-series connector-terminal block conversion units (XW2K / XW2R) and CJ1-series 32-point I/O modules with a MIL40 connector on the I/O side. Common pairings are XW2R-40D5 with CJ1W-OD232 and XW2R-40D5 with CJ1W-ID232 in a typical control panel layout.
Is the XW2Z-100K shielded?
Yes. The cable is shielded and rated 500 VAC dielectric for 1 minute at 1 mA leakage. The shield helps reject noise from VFD cabinets when the cable runs near motor leads or switching power supplies inside the same enclosure as the manual switch.
XW2Z-100K vs XW2Z-200K - what is the difference?
Both are 1:1 pin-matched shielded MIL40 cables. The 100K is 1 metre and the 200K is 2 metres. Choose the 100K when the conversion unit mounts next to the CJ1 I/O module; choose the 200K when the units are 1 to 2 m apart inside the panel.
Can the XW2Z-100K be used for moving parts?
No. The XW2Z-100K is rated for fixed installation only with a minimum bend radius of 84 mm static. For drag-chain or robot applications, use the XW2Z-Robot cable variant from the same family instead, which is rated for repeated flexing over millions of cycles.
